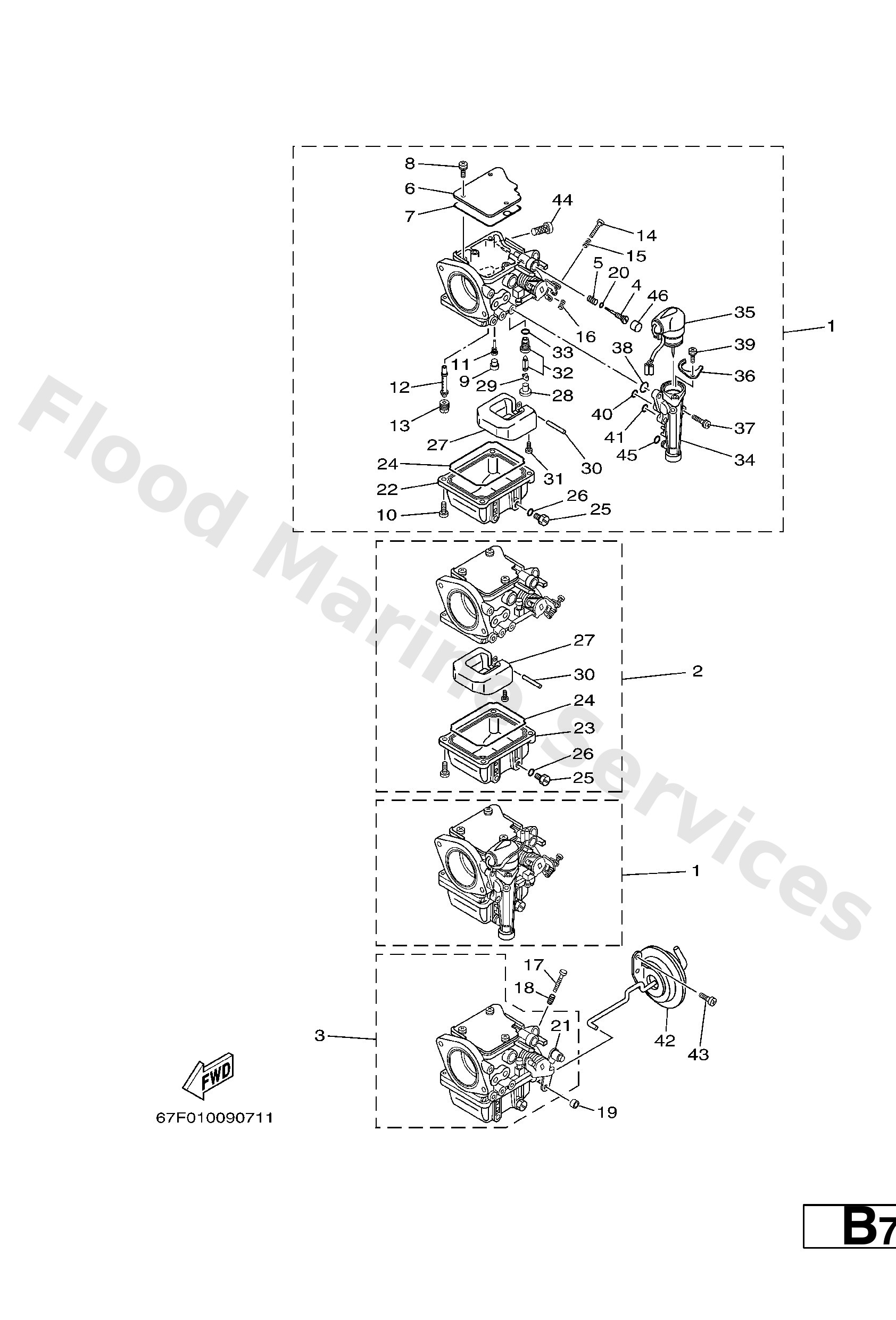

Diagram: CARBURETOR 1
Parts List
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 1
Diagram Reference: 1
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 2
Diagram Reference: 2
Carburetor assembly 4
Diagram Reference: 3
Carburetor assembly 4
Diagram Reference: 3
Screw, pilot
Diagram Reference: 4
Spring
Diagram Reference: 5
Plate
Diagram Reference: 6
Gasket
Diagram Reference: 7
Screw, pan head (e56)
Diagram Reference: 8
Rubber cap
Diagram Reference: 9
Screw, pan head(ga5)
Diagram Reference: 10
Jet (#42)
Diagram Reference: 11
Jet, needle
Diagram Reference: 12
Jet, main (#128)
Diagram Reference: 13
Screw
Diagram Reference: 14
Spring
Diagram Reference: 15
Spring
Diagram Reference: 16
Screw, stop
Diagram Reference: 17
Spring coil(663)(carb)
Diagram Reference: 18
Bush
Diagram Reference: 19
O-ring
Diagram Reference: 20
Collar
Diagram Reference: 21
Body, float chamber
Diagram Reference: 22
Body, float chamber
Diagram Reference: 23
Gasket, float chamber
Diagram Reference: 24
Screw, drain
Diagram Reference: 25
O-ring (371)
Diagram Reference: 26
Float
Diagram Reference: 27
Pin, valve
Diagram Reference: 28
Clip
Diagram Reference: 29
Pin, float arm
Diagram Reference: 30
Screw, pan head (713)
Diagram Reference: 31
Needle valve assembly
Diagram Reference: 32
O-ring (371)
Diagram Reference: 33
Body, starter
Diagram Reference: 34
Prime starter assembly
Diagram Reference: 35
Plate, starter lever
Diagram Reference: 36
Screw
Diagram Reference: 37
O-ring
Diagram Reference: 38
Screw
Diagram Reference: 39
O-ring
Diagram Reference: 40
O-ring
Diagram Reference: 41
Diaphragm assembly 2
Diagram Reference: 42
Screw, pan head
Diagram Reference: 43
Element, filter
Diagram Reference: 44
O-ring
Diagram Reference: 45
Plug
Diagram Reference: 46
