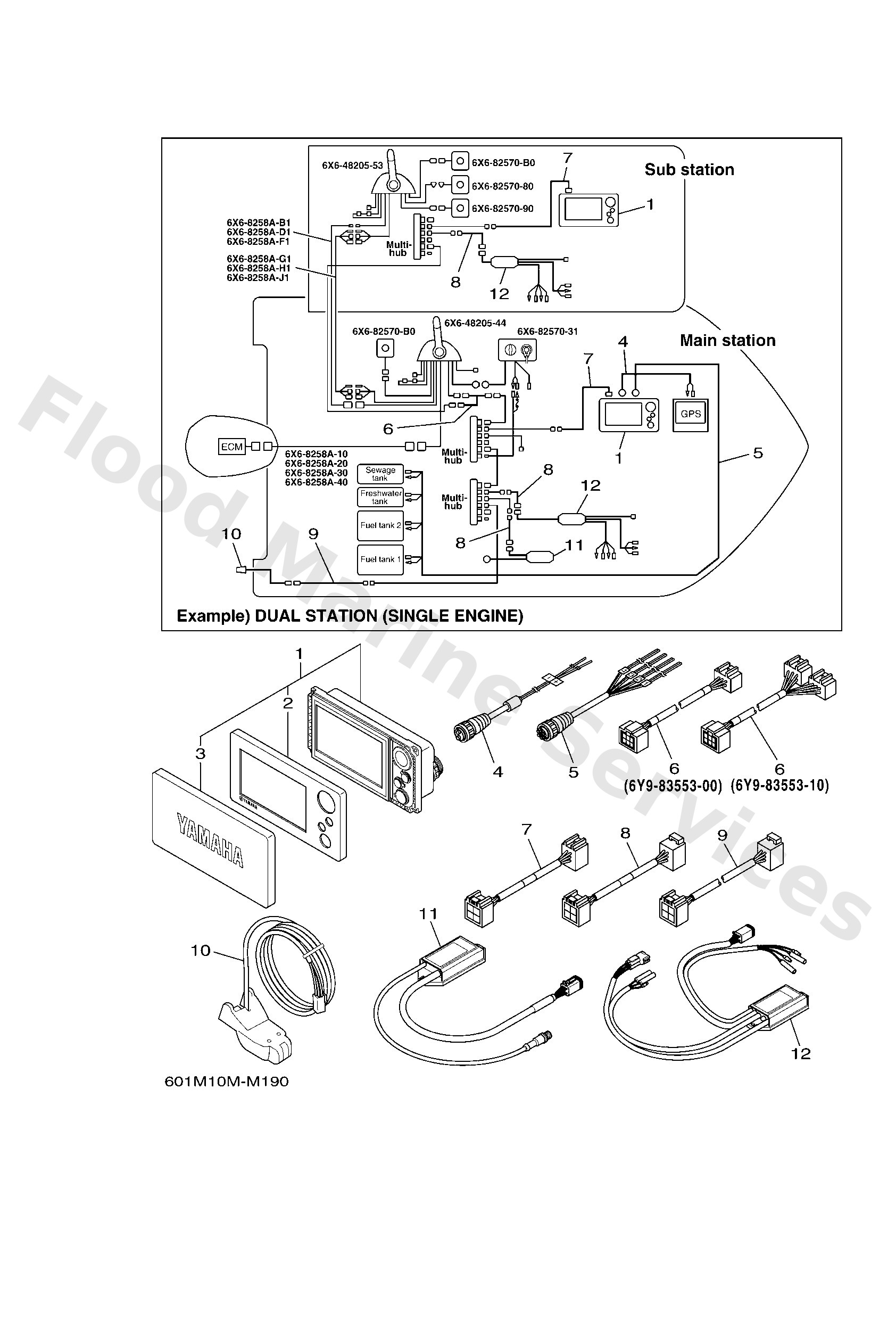

Diagram: COMMAND LINK PLUS
Parts List
Multi display assembly
Diagram Reference: 1
Cover, front
Diagram Reference: 2
Cover, meter
Diagram Reference: 3
Wire, lead
Diagram Reference: 4
Wire, lead
Diagram Reference: 5
Wire, lead
Diagram Reference: 6
Main bus y-split harness
Diagram Reference: 6
Wire, lead
Diagram Reference: 7
Wire, lead
Diagram Reference: 8
Wire, lead
Diagram Reference: 9
Sensor assembly
Diagram Reference: 10
Interface Unit
Diagram Reference: 11
Analog gauge interface
