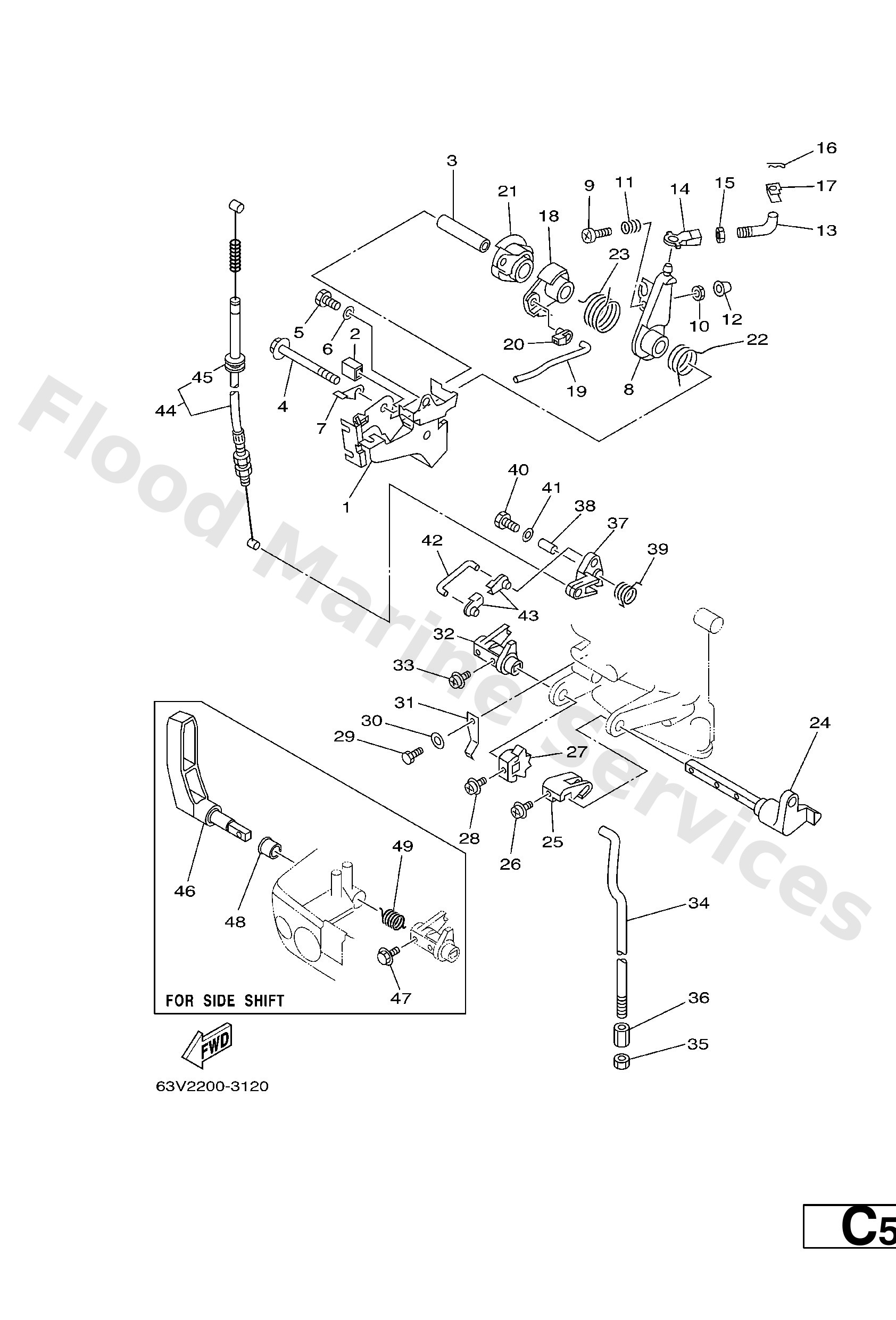

Diagram: CONTROL

Diagram

Parts List

63V−14497−02

Stay, throttle wire

Diagram Reference: 1

689−44194−00

Cap

Diagram Reference: 2

90387−06M50

Collar(63v)

Diagram Reference: 3

95895−06065

Bolt, flange(63v)

Diagram Reference: 4

97095−06012

Bolt(gh1)

Diagram Reference: 5

92995−06600 (FOR SAFETY DEVICE)

Washer, plain (646)

Diagram Reference: 41

63V−41282−00 (9.9F−FOR CARIB)

Stopper, free accel. link

Diagram Reference: 7

63V−41631−00

Lever, magneto control

Diagram Reference: 8

97885−06030

Screw, pan head(6e0)

Diagram Reference: 9

95380−06600

Nut(661)

Diagram Reference: 10

90501−12M16

Spring (6a1)

Diagram Reference: 11

688−44194−00

Cap

Diagram Reference: 12

63V−41238−00

Joint, link

Diagram Reference: 13

6H4−41237−00

Joint, link

Diagram Reference: 14

95380−05700

Nut (656)

Diagram Reference: 15

90468−10005

Pin, hair 6264123500

Diagram Reference: 16

63V−41223−00

Washer, lock 1

Diagram Reference: 17

63V−41283−01

Lever, free accel.

Diagram Reference: 18

63V−41211−00

Link, accel.

Diagram Reference: 19

661−41262−02 (FOR SAFETY DEVICE)

Joint, choke lever

Diagram Reference: 43

63V−41638−00

Pulley

Diagram Reference: 21

90508−16M37

Spring, torsion(63v)

Diagram Reference: 22

90508−20M38

Spring, torsion(63v)

Diagram Reference: 23

63V−44123−01

Arm, shift rod

Diagram Reference: 24

63V−44121−01

Lever, shift rod

Diagram Reference: 25

90159−05M25

Screw,pan head (646)

Diagram Reference: 26

63V−44125−00

Lever, shift rod

Diagram Reference: 27

63V−44116−00

Spring

Diagram Reference: 31

63V−44122−01 (FOR FRONT SHIFT)

Bushing, shift rod lever

Diagram Reference: 32

65F−44122−00 (FOR SIDE SHIFT)

Bushing, Shift Rod Lever

Diagram Reference: 32

63V−44143−01

Rod, shift

Diagram Reference: 34

95380−06700

Nut

Diagram Reference: 35

90170−06015

Connector, shift rod

Diagram Reference: 36

63V−15746−10 (FOR SAFETY DEVICE)

Arm

Diagram Reference: 37

63V−15746−00 (FOR SAFETY DEVICE−)

Arm

Diagram Reference: 37

90387−06M06 (FOR SAFETY DEVICE)

Collar (651)

Diagram Reference: 38

90508−08M39 (FOR SAFETY DEVICE)

Spring, torsion(63v)

Diagram Reference: 39

97095−06020 (FOR SAFETY DEVICE)

Bolt(7u8)

Diagram Reference: 40

6L2−15747−00 (FOR SAFETY DEVICE)

Link

Diagram Reference: 42

63V−15770−00 (FOR SAFETY DEVICE)

Cable comp., starter stop

Diagram Reference: 44

90480−10M16

Grommet(6j8)

Diagram Reference: 45

65F−44111−00 (FOR SIDE SHIFT)

Handle, Gear Shift

Diagram Reference: 46

90119−05003 (FOR SIDE SHIFT)

Bolt, With Washer

Diagram Reference: 47

90386−10009 (FOR SIDE SHIFT)

Bushing 6484418600

Diagram Reference: 48

90501−12M85 (FOR SIDE SHIFT)

Spring, Compression

Diagram Reference: 49
