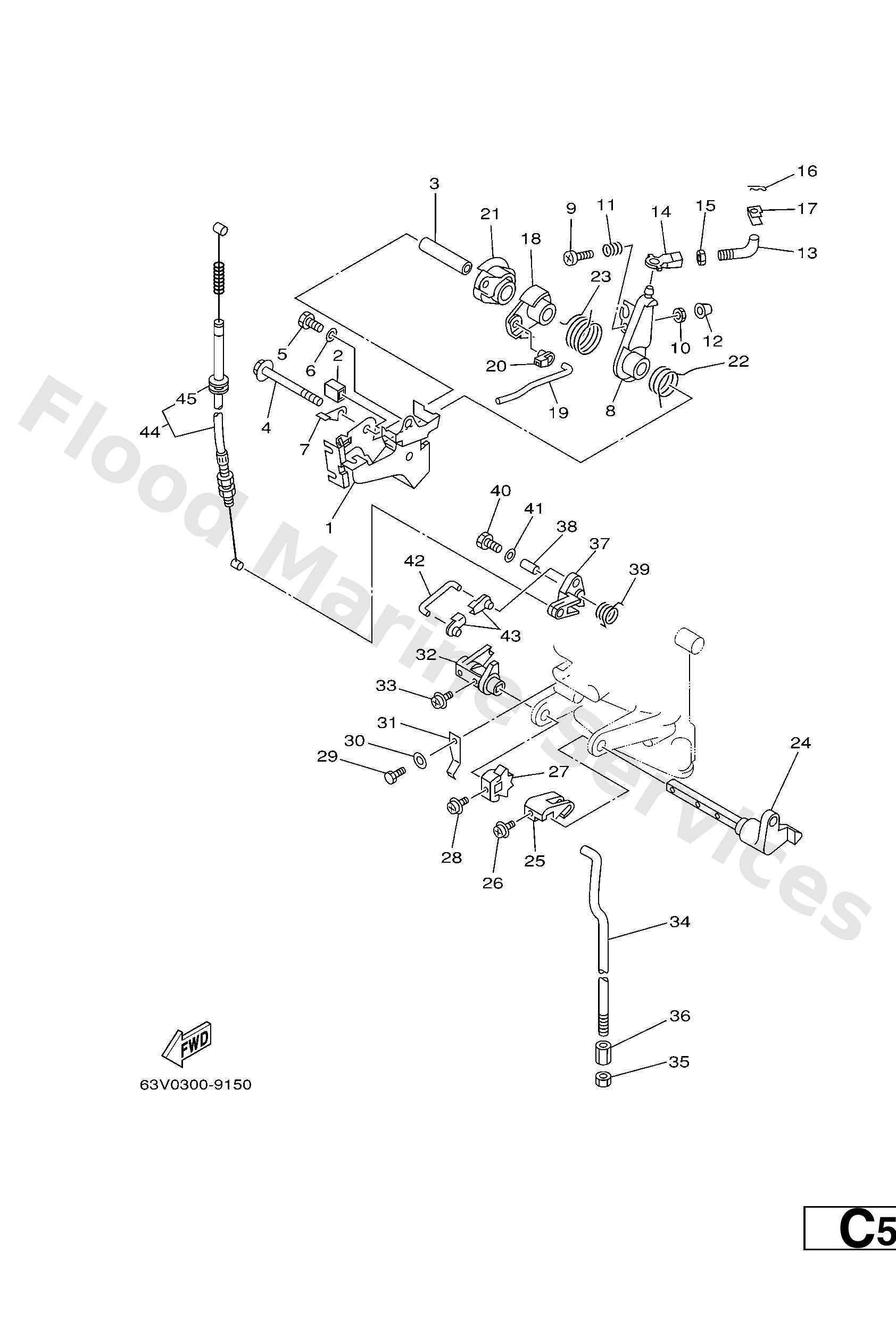

Diagram: CONTROL

Diagram

Parts List

63V1449702
Stay, throttle wire
Diagram Reference: 1
Get Part
6894419400
Cap
Diagram Reference: 2
Get Part
9038706M50
Collar(63v)
Diagram Reference: 3
Get Part
9589506065
Bolt, flange(63v)
Diagram Reference: 4
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
63V4128200 (EXCEPT FOR NOR-L)
Stopper, free accel. link
Diagram Reference: 7
Get Part
63V4163100
Lever, magneto control
Diagram Reference: 8
Get Part
9788506030
Screw, pan head(6e0)
Diagram Reference: 9
Get Part
9538006600
Nut(661)
Diagram Reference: 10
Get Part
9050112M16
Spring (6a1)
Diagram Reference: 11
Get Part
6884419400
Cap
Diagram Reference: 12
Get Part
63V4123800
Joint, link
Diagram Reference: 13
Get Part
6H44123700
Joint, link
Diagram Reference: 14
Get Part
9538005700
Nut (656)
Diagram Reference: 15
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 16
Get Part
63V4122300
Washer, lock 1
Diagram Reference: 17
Get Part
63V4128301
Lever, free accel.
Diagram Reference: 18
Get Part
63V4121100
Link, accel.
Diagram Reference: 19
Get Part
6614126202
Joint, choke lever
Diagram Reference: 20
Get Part
63V4163800
Pulley
Diagram Reference: 21
Get Part
9050816M37
Spring, torsion(63v)
Diagram Reference: 22
Get Part
9050820M38
Spring, torsion(63v)
Diagram Reference: 23
Get Part
63V4412301
Arm, shift rod
Diagram Reference: 24
Get Part
63V4412101
Lever, shift rod
Diagram Reference: 25
Get Part
9015905M25
Screw,pan head (646)
Diagram Reference: 26
Get Part
63V4412500
Lever, shift rod
Diagram Reference: 27
Get Part
63V4411600
Spring
Diagram Reference: 31
Get Part
63V4412201
Bushing, shift rod lever
Diagram Reference: 32
Get Part
63V4414301
Rod, shift
Diagram Reference: 34
Get Part
9538006700
Nut
Diagram Reference: 35
Get Part
9017006015
Connector, shift rod
Diagram Reference: 36
Get Part
63V1574610
Arm
Diagram Reference: 37
Get Part
9038706M06
Collar (651)
Diagram Reference: 38
Get Part
9050808M39
Spring, torsion(63v)
Diagram Reference: 39
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 40
Get Part
6L21574700
Link
Diagram Reference: 42
Get Part
63V1577001
Cable comp., starter stop
Diagram Reference: 44
Get Part
9048010M16
Grommet(6j8)
Diagram Reference: 45
Get Part
