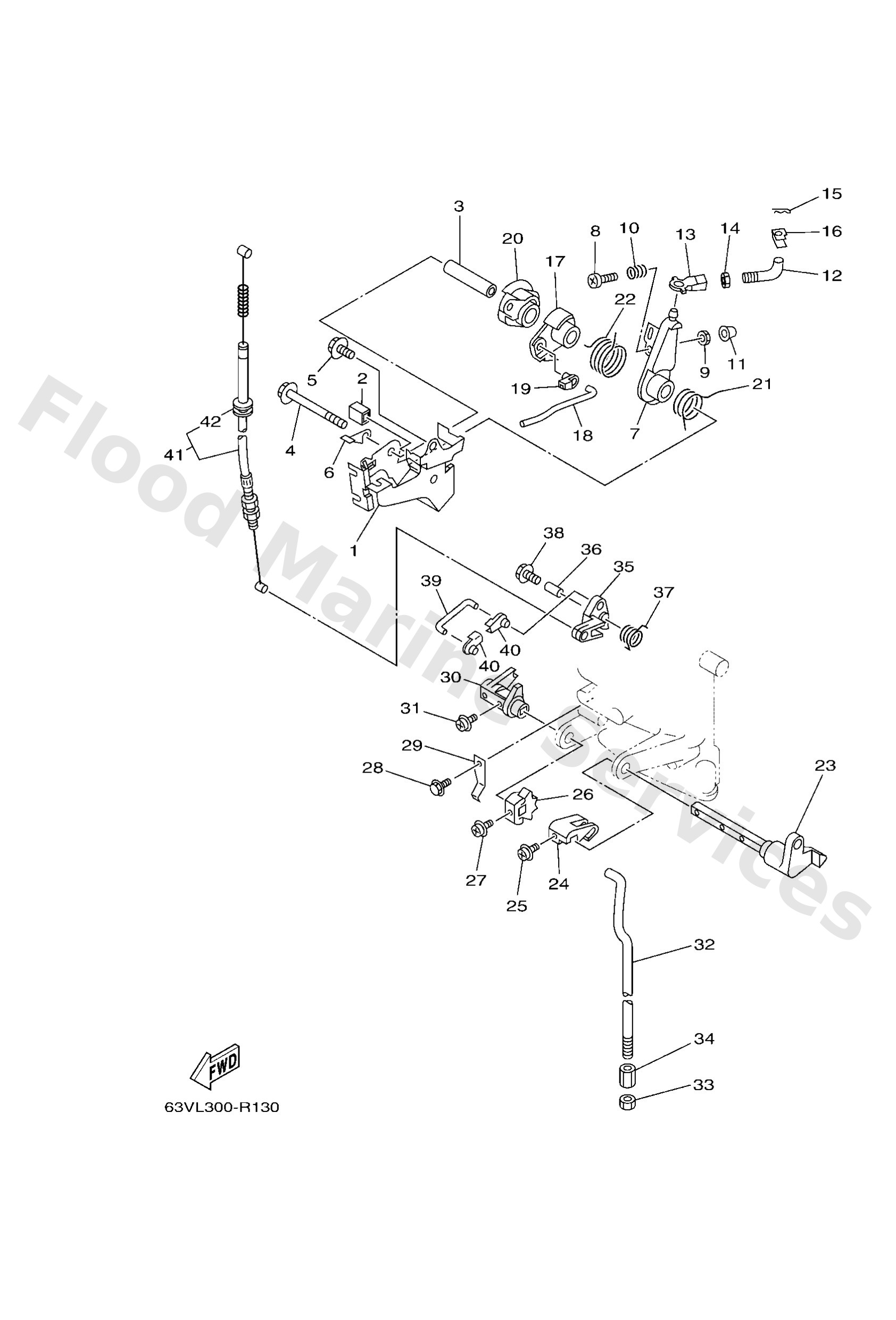

Parts List
Stay, throttle wire
Diagram Reference: 1
Collar(63v)
Diagram Reference: 3
Bolt, flange deep recess
Diagram Reference: 4
Bolt, hexagon w/w deep recess
Diagram Reference: 5
Stopper, free accel. link
Diagram Reference: 6
Lever, magneto control
Diagram Reference: 7
Screw, pan head(6e0)
Diagram Reference: 8
Nut(661)
Diagram Reference: 9
Spring (6a1)
Diagram Reference: 10
Cap
Diagram Reference: 11
Joint, link
Diagram Reference: 12
Joint, link
Diagram Reference: 13
Nut (656)
Diagram Reference: 14
Pin, hair 6264123500
Diagram Reference: 15
Washer, lock 1
Diagram Reference: 16
Lever, free accel.
Diagram Reference: 17
Link, accel.
Diagram Reference: 18
Joint, choke lever
Diagram Reference: 19
Pulley
Diagram Reference: 20
Spring, torsion(63v)
Diagram Reference: 21
Spring, torsion(63v)
Diagram Reference: 22
Arm, shift rod
Diagram Reference: 23
Lever, shift rod
Diagram Reference: 24
Screw,pan head (646)
Diagram Reference: 25
Lever, shift rod
Diagram Reference: 26
Bolt, flange deep recess
Diagram Reference: 28
Spring
Diagram Reference: 29
Bushing, shift rod lever
Diagram Reference: 30
Rod, shift
Diagram Reference: 32
Nut
Diagram Reference: 33
Connector, shift rod
Diagram Reference: 34
Arm
Diagram Reference: 35
Collar (651)
Diagram Reference: 36
Spring, torsion(63v)
Diagram Reference: 37
Bolt, hexagon w/w deep recess
Diagram Reference: 38
Link
Diagram Reference: 39
Cable comp., starter stop
Diagram Reference: 41
Grommet(6j8)
Diagram Reference: 42
