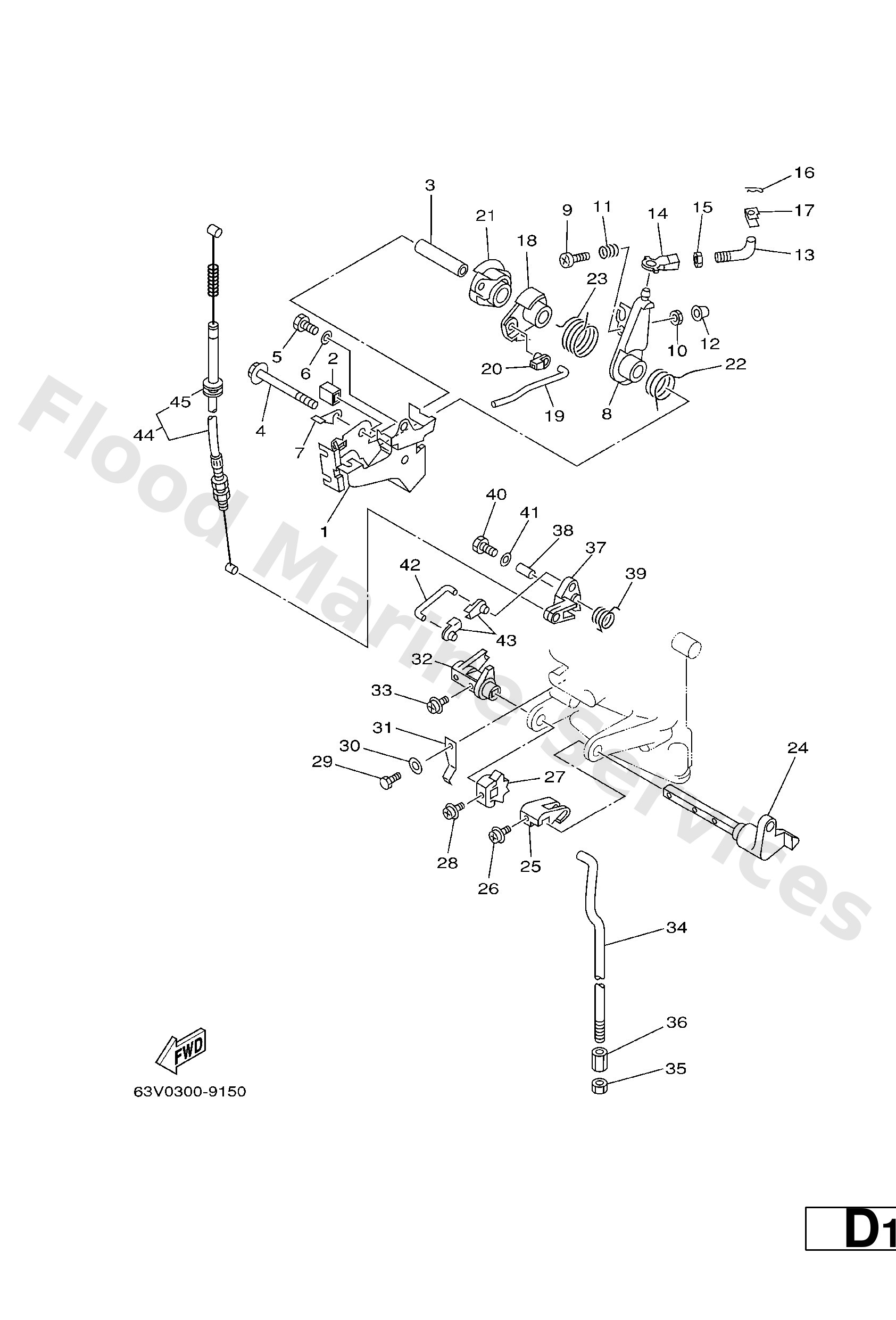

Diagram: CONTROL

Diagram

Parts List

63V1449701
Stay, Throttle Wire
Diagram Reference: 1
Get Part
689--44194--00
Cap
Diagram Reference: 2
Get Part
90387--06M50
Collar(63v)
Diagram Reference: 3
Get Part
95895--06065
Bolt, flange(63v)
Diagram Reference: 4
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 5
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 6
Get Part
63V--41282--00 (”9.9F” ONLY)
Stopper, free accel. link
Diagram Reference: 7
Get Part
63V4163100
Lever, magneto control
Diagram Reference: 8
Get Part
97885--06030
Screw, pan head(6e0)
Diagram Reference: 9
Get Part
95380--06600
Nut(661)
Diagram Reference: 10
Get Part
90501--12M16
Spring (6a1)
Diagram Reference: 11
Get Part
688--44194--00
Cap
Diagram Reference: 12
Get Part
63V--41238--00
Joint, link
Diagram Reference: 13
Get Part
6H4--41237--00
Joint, link
Diagram Reference: 14
Get Part
95380--05700
Nut (656)
Diagram Reference: 15
Get Part
90468--10005
Pin, hair 6264123500
Diagram Reference: 16
Get Part
63V--41223--00
Washer, lock 1
Diagram Reference: 17
Get Part
63V--41283--01
Lever, free accel.
Diagram Reference: 18
Get Part
63V--41211--00
Link, accel.
Diagram Reference: 19
Get Part
661--41262--02
Joint, choke lever
Diagram Reference: 20
Get Part
63V--41638--00
Pulley
Diagram Reference: 21
Get Part
90508--16M37
Spring, torsion(63v)
Diagram Reference: 22
Get Part
90508--20M38
Spring, torsion(63v)
Diagram Reference: 23
Get Part
63V--44123--01
Arm, shift rod
Diagram Reference: 24
Get Part
63V--44121--01
Lever, shift rod
Diagram Reference: 25
Get Part
90159--05M25
Screw,pan head (646)
Diagram Reference: 26
Get Part
63V--44125--00
Lever, shift rod
Diagram Reference: 27
Get Part
63V--44116--00
Spring
Diagram Reference: 31
Get Part
63V--44122--01
Bushing, shift rod lever
Diagram Reference: 32
Get Part
63V--44143--01
Rod, shift
Diagram Reference: 34
Get Part
95380--06700
Nut
Diagram Reference: 35
Get Part
90170--06015
Connector, shift rod
Diagram Reference: 36
Get Part
63V--15746--10
Arm
Diagram Reference: 37
Get Part
90387--06M06
Collar (651)
Diagram Reference: 38
Get Part
90508--08M39
Spring, torsion(63v)
Diagram Reference: 39
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 40
Get Part
6L2--15747--00
Link
Diagram Reference: 42
Get Part
63V1577000
Cable comp., starter stop
Diagram Reference: 44
Get Part
90480--10M16
Grommet(6j8)
Diagram Reference: 45
