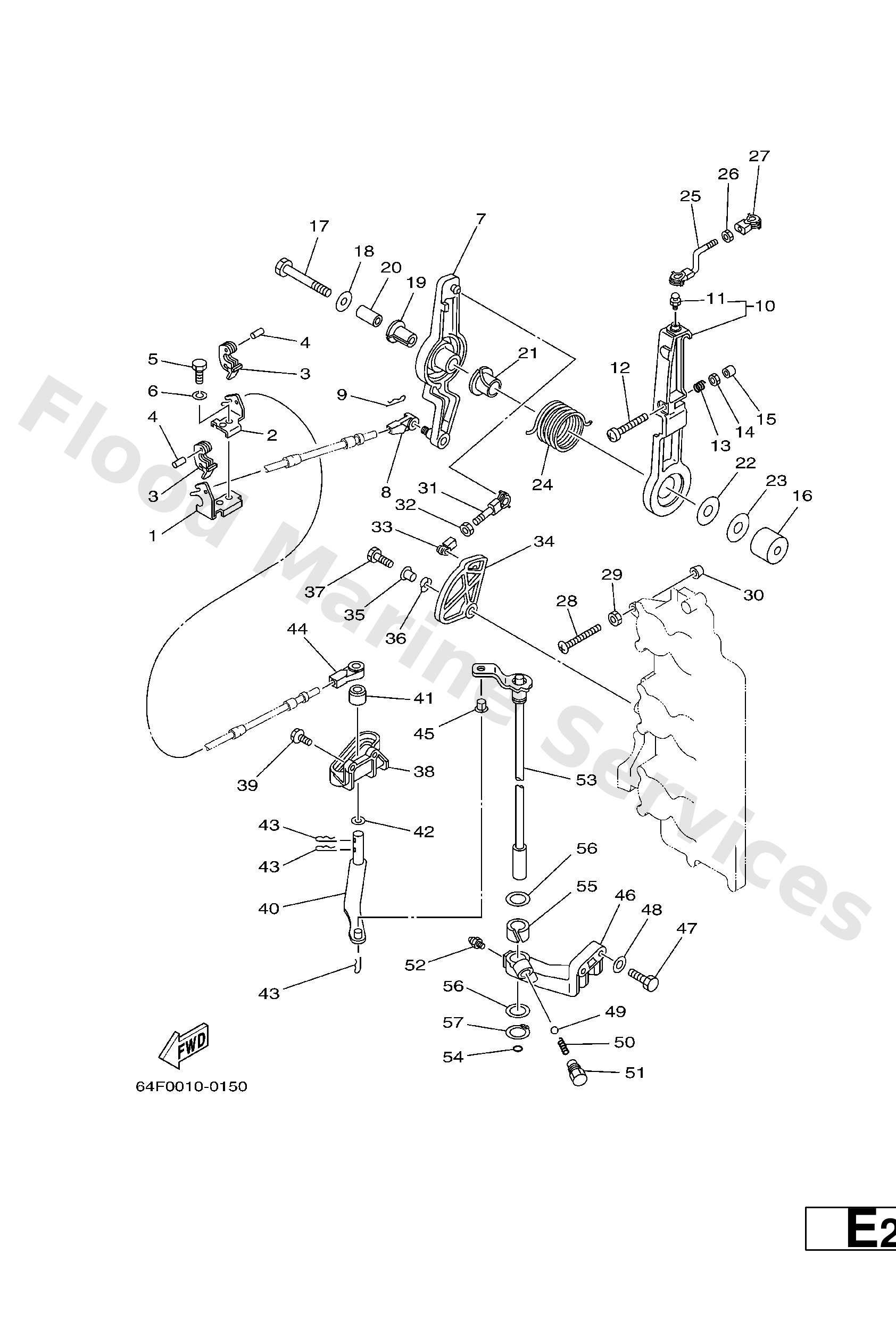

Parts List
Bracket, remote control 1
Diagram Reference: 1
Bracket, remote control 2
Diagram Reference: 2
Clamp, cable
Diagram Reference: 3
Pin, spring
Diagram Reference: 4
Bolt, hexagon
Diagram Reference: 5
Ybs67-8 washer, spring
Diagram Reference: 6
Lever, magneto control
Diagram Reference: 7
Cable end, remote control
Diagram Reference: 8
Clip 620436610000
Diagram Reference: 9
Lever, magneto control
Diagram Reference: 10
Joint, ball
Diagram Reference: 11
Screw, pan head(697)
Diagram Reference: 12
Spring, compression (688)
Diagram Reference: 13
Nut(661)
Diagram Reference: 14
Cap
Diagram Reference: 15
Collar
Diagram Reference: 16
Bolt(61h)
Diagram Reference: 17
Washer, plate (6e5)
Diagram Reference: 18
Bushing(663)
Diagram Reference: 19
14 −
Diagram Reference: 20
Bushing (688)
Diagram Reference: 21
Washer, plate(663)
Diagram Reference: 22
Washer plate (682)
Diagram Reference: 23
Spring (6e5)
Diagram Reference: 24
Rod, magneto control
Diagram Reference: 25
Nut, hexagon (663)
Diagram Reference: 26
Joint, link
Diagram Reference: 27
Screw, Pan Head
Diagram Reference: 28
Joint, link 2
Diagram Reference: 31
Cam, accel.
Diagram Reference: 34
Coller (6a0)
Diagram Reference: 35
Washer, wave (676)
Diagram Reference: 36
Bolt
Diagram Reference: 37
Bracket
Diagram Reference: 38
Bolt, with washer
Diagram Reference: 39
Lever, shift rod
Diagram Reference: 40
Bushing, shift rod lever
Diagram Reference: 41
Washer, plate (6e5)
Diagram Reference: 42
Bushing (688)
Diagram Reference: 45
Bracket 2
Diagram Reference: 46
Bolt
Diagram Reference: 47
Washer, plain (663)
Diagram Reference: 48
Ball (697)
Diagram Reference: 49
Spring 6484411600
Diagram Reference: 50
Bushing 2
Diagram Reference: 51
Nipple, grease(6a1)
Diagram Reference: 52
Handle gear shift assembly
Diagram Reference: 53
O-ring
Diagram Reference: 54
Bush(6e5)
Diagram Reference: 55
Washer, plate(663)
Diagram Reference: 56
Circlip
Diagram Reference: 57
