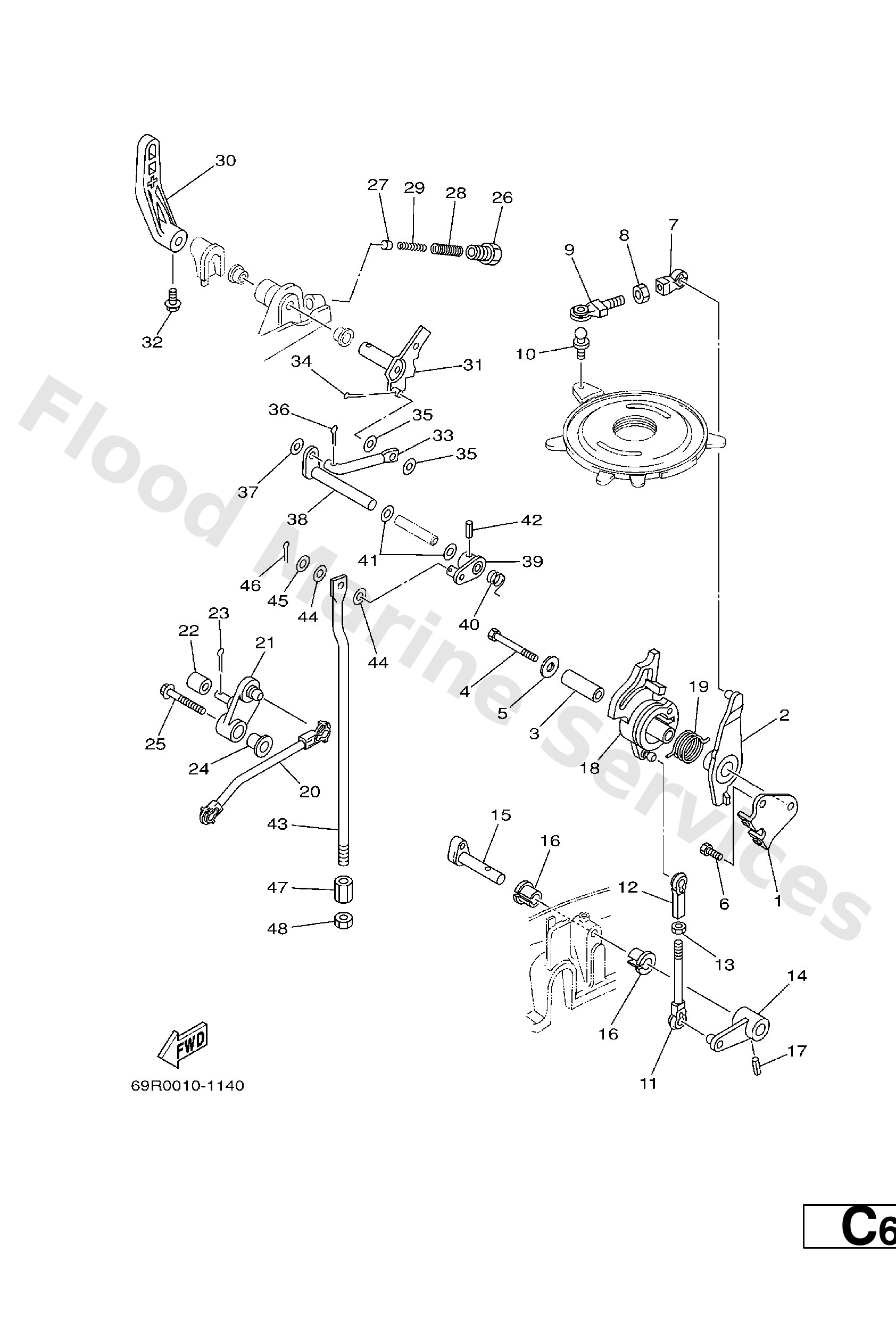

Diagram: CONTROL

Diagram

Parts List

69P−14497−00
Stay, throttle wire
Diagram Reference: 1
Get Part
69P−41631−00
Lever, magneto control
Diagram Reference: 2
Get Part
90387−06M59
Collar (6h3)
Diagram Reference: 3
Get Part
97095−06045
Bolt, hexagon
Diagram Reference: 4
Get Part
90201−06416
Washer, plate(663)
Diagram Reference: 5
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 6
Get Part
662−41237−01
Joint, link
Diagram Reference: 7
Get Part
95380−05700
Nut (656)
Diagram Reference: 8
Get Part
679−41241−01
Rod, link
Diagram Reference: 9
Get Part
663−85518−00
Joint, ball
Diagram Reference: 10
Get Part
682−41238−01
Joint, link
Diagram Reference: 11
Get Part
682−41237−00
Joint, link 2
Diagram Reference: 12
Get Part
95380−05600
Nut, hexagon (663)
Diagram Reference: 13
Get Part
69P−42157−00−94
Lever, throttle
Diagram Reference: 14
Get Part
656−42153−00−94
Shaft, throttle control
Diagram Reference: 15
Get Part
90386−10009
Bushing 6484418600
Diagram Reference: 16
Get Part
91690−40018
Pin spring(664)
Diagram Reference: 17
Get Part
69P−41213−00
Cam, accel.
Diagram Reference: 18
Get Part
69P−42167−00
Spring 1
Diagram Reference: 19
Get Part
69P−41241−00
Rod, link
Diagram Reference: 20
Get Part
69P−42154−00
Lever, throttle control
Diagram Reference: 21
Get Part
62Y−42171−00
Bushing
Diagram Reference: 22
Get Part
91490−16010
Pin, cotter
Diagram Reference: 23
Get Part
90387−06M60
Collar (6h3)
Diagram Reference: 24
Get Part
90119−06M17
Bolt, with washer
Diagram Reference: 25
Get Part
664−42715−00
Bushing 2
Diagram Reference: 26
Get Part
664−44167−01
Plunger, shift cam
Diagram Reference: 27
Get Part
90501−14M07
Spring, compresion (664)
Diagram Reference: 28
Get Part
90501−09M08
Spring, compresion (664)
Diagram Reference: 29
Get Part
689−44111−01−4D
Handle, gear shift
Diagram Reference: 30
Get Part
664−44113−01
Cam plate, handle
Diagram Reference: 31
Get Part
90105−06M07
Bolt (689)
Diagram Reference: 32
Get Part
664−44142−00
Joint
Diagram Reference: 33
Get Part
90202−06007
Washer plate 626441880000
Diagram Reference: 35
Get Part
91490−12010
Pin, cotter (6g8)
Diagram Reference: 36
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 37
Get Part
689−44121−01
Lever, shift rod 1
Diagram Reference: 38
Get Part
689−44125−00
Lever, shift rod 2
Diagram Reference: 39
Get Part
90508−14M13
Spring (689)
Diagram Reference: 40
Get Part
90202−10024
Washer plate 648441880000
Diagram Reference: 41
Get Part
91690−40016
Pin, spring (648)
Diagram Reference: 42
Get Part
61N−44143−00
Rod, shift
Diagram Reference: 43
Get Part
91490−20010
Pin, cotter
Diagram Reference: 46
Get Part
61N−44146−00
Connector, shift rod
Diagram Reference: 47
Get Part
95380−06600
Nut(661)
Diagram Reference: 48
