30DMO (1999)
CONTROL

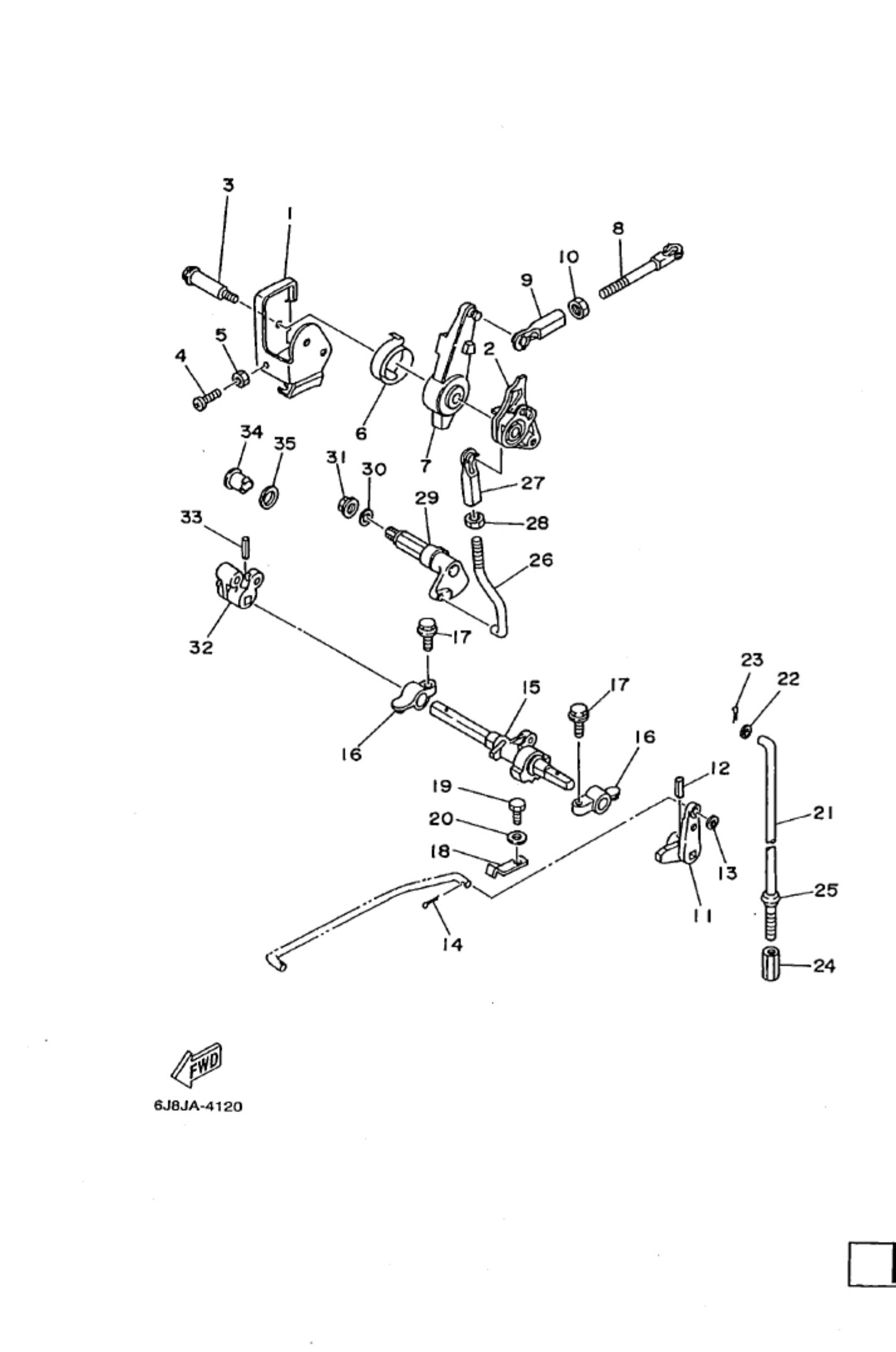

Diagram: CONTROL
Parts List
6J81449700
Stay, throttle wire
Diagram Reference: 1
Get Part
6J84121300
(RIKI)
Cam, accel.
Diagram Reference: 2
Get Part
9010906M28
(LIRIRIRN)
Bolt(6j8)
Diagram Reference: 3
Get Part
9788006025
(HRIEIR])
Screw, pan head(6b0)
Diagram Reference: 4
Get Part
9530306600
(LRIRIE)
Nut(661)
Diagram Reference: 5
Get Part
6J84216700
(h)
Spring 1
Diagram Reference: 6
Get Part
6J84163102
(URIRIE)
Lever, magneto control
Diagram Reference: 7
Get Part
6894216901
(LRIEIN)
Joint
Diagram Reference: 8
Get Part
6824120700
(IRIE)
Joint, Link
Diagram Reference: 9
Get Part
9538005600
([KINI)
Nut, hexagon (663)
Diagram Reference: 10
Get Part
9169030318
Pin, spring (6h3)
Diagram Reference: 12
Get Part
9299006200
Ybs66-6 washer, plain
Diagram Reference: 13
Get Part
9149020012
Pin, cotter (648)
Diagram Reference: 14
Get Part
6J84412100
Lever, shift rod
Diagram Reference: 15
Get Part
BGi416620104
Bracket
Diagram Reference: 16
Get Part
9751306520
Bolt, with washer(61b)
Diagram Reference: 17
Get Part
6J84411600
Spring
Diagram Reference: 18
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 19
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 20
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 22
Get Part
9149016010
Pin, cotter
Diagram Reference: 23
Get Part
9017006015
Connector, shift rod
Diagram Reference: 24
Get Part
6J81A3120
Ecrou
Diagram Reference: 24
Get Part
6894337801
Seal, Damper
Diagram Reference: 25
Get Part
6824123700
Joint, link 2
Diagram Reference: 27
Get Part
6J84215401
(LRIRIEI)
Lever, throttle control
Diagram Reference: 29
Get Part
9020210024
(HRIRIE)
Washer plate 648441880000
Diagram Reference: 30
Get Part
9578008300
(1] 1] 1)
Nut, nylon (6j8)
Diagram Reference: 31
Get Part
6J84414200
(URIBE)
Joint
Diagram Reference: 32
Get Part
6824272600
Grommet 3
Diagram Reference: 34
Get Part
9020212M17
Washer, plate (6e0)
Diagram Reference: 35
Get Part
