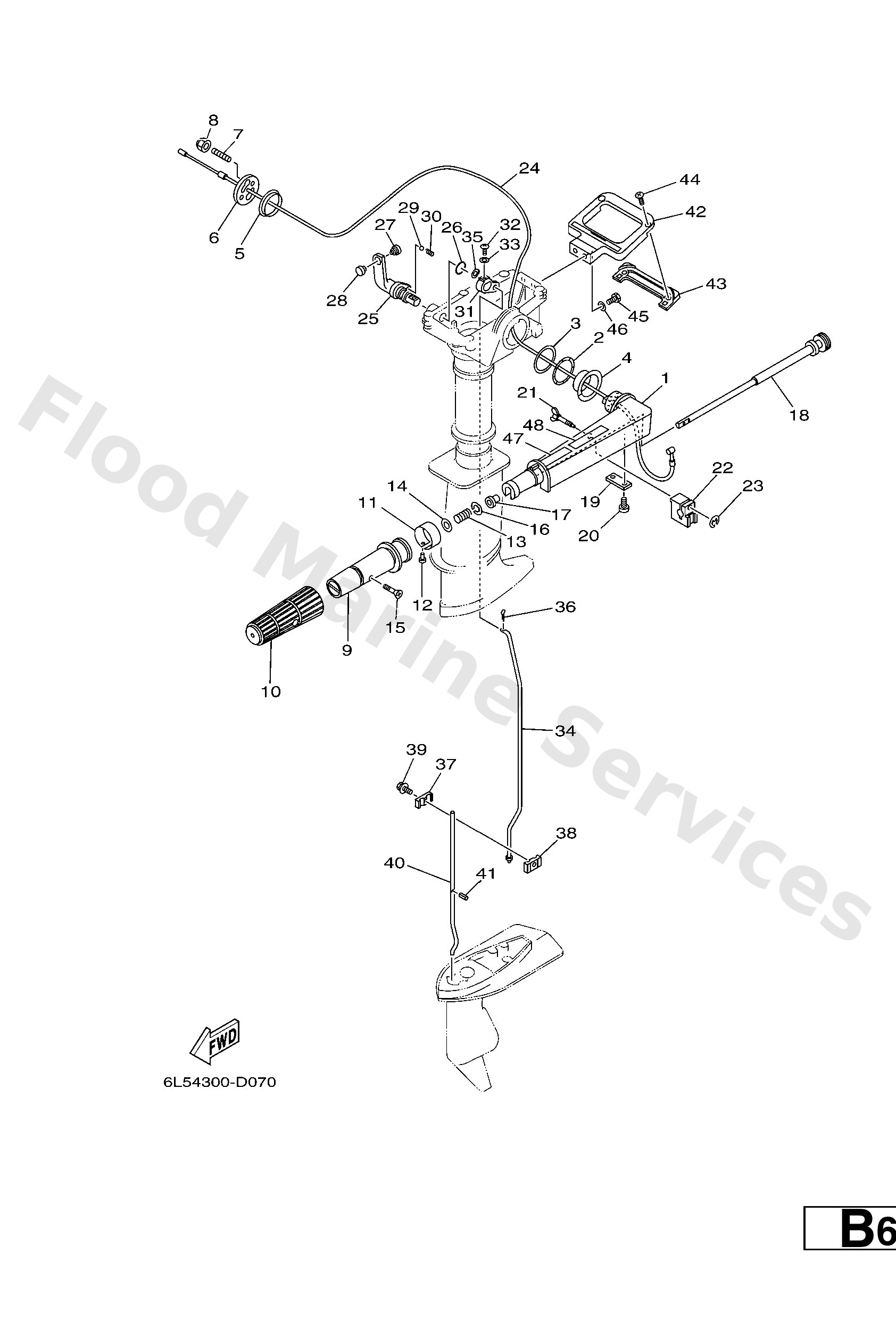

Diagram: CONTROL

Diagram

Parts List

6G142111124D
Handle, steering
Diagram Reference: 1
Get Part
9020636M21
Washer, wave(63v)
Diagram Reference: 2
Get Part
9020236M55
Washer, plate(63v)
Diagram Reference: 3
Get Part
9038634M97
Bush(63v)
Diagram Reference: 4
Get Part
9038633M96
Bush(63v)
Diagram Reference: 5
Get Part
6G14213102
Cover, handle steering
Diagram Reference: 6
Get Part
9011608016
Bolt, stud
Diagram Reference: 7
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 8
Get Part
6644211900
Grip, steering handle
Diagram Reference: 9
Get Part
6G14217700
Rubber, handle
Diagram Reference: 10
Get Part
6L54213700
Indicator, throttle
Diagram Reference: 11
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 12
Get Part
9050123215
Spring (655)
Diagram Reference: 13
Get Part
9290310600
Washer, plate
Diagram Reference: 14
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 15
Get Part
9020908M17
Washer(6l5)
Diagram Reference: 16
Get Part
9038608032
Bushing (650)
Diagram Reference: 17
Get Part
6G14213801
Lever, throttle
Diagram Reference: 18
Get Part
6E04215902
Stay
Diagram Reference: 19
Get Part
9788505012
Screw,pan head (646)
Diagram Reference: 20
Get Part
6L54212500
Bolt, friction adjusting
Diagram Reference: 21
Get Part
6G14212600
Piece, friction
Diagram Reference: 22
Get Part
9908003600
Circlip(6l5)
Diagram Reference: 23
Get Part
6L52630101
Throttle cable assembly
Diagram Reference: 24
Get Part
6L54411100
Handle, gear shift
Diagram Reference: 25
Get Part
9321012327
O-ring(3ld)
Diagram Reference: 26
Get Part
6L54419600
Indicator 3
Diagram Reference: 27
Get Part
6L54419700
Indicator 4
Diagram Reference: 28
Get Part
9350516024
Ball
Diagram Reference: 29
Get Part
9050112274
Spring 6554411600
Diagram Reference: 30
Get Part
6L54412100
Lever, shift rod
Diagram Reference: 31
Get Part
9778040520
Ybs83-420 screw,panh,tapping
Diagram Reference: 32
Get Part
9299004600
Washer, plain (646)
Diagram Reference: 33
Get Part
6L54414300
Rod, shift
Diagram Reference: 34
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 35
Get Part
9149016010
Pin, cotter
Diagram Reference: 36
Get Part
6E04414500
Connector, shift rod 1
Diagram Reference: 37
Get Part
6E04414600
Connector, shift rod 2
Diagram Reference: 38
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 39
Get Part
6L54414400 (S (17.4"))
Rod, shift
Diagram Reference: 40
Get Part
6L54414410 (L (22.4"))
Rod, shift
Diagram Reference: 40
Get Part
9160925014
Pin, Spring
Diagram Reference: 41
Get Part
6L542731004D
Carrying handle
Diagram Reference: 42
Get Part
6L54273500
Protector
Diagram Reference: 43
Get Part
9016104M02
Screw, tapping (676)
Diagram Reference: 44
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 45
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 46
Get Part
6A12415A41
Label, caution
Diagram Reference: 47
Get Part
6A12415A51
Label, Caution
Diagram Reference: 48
