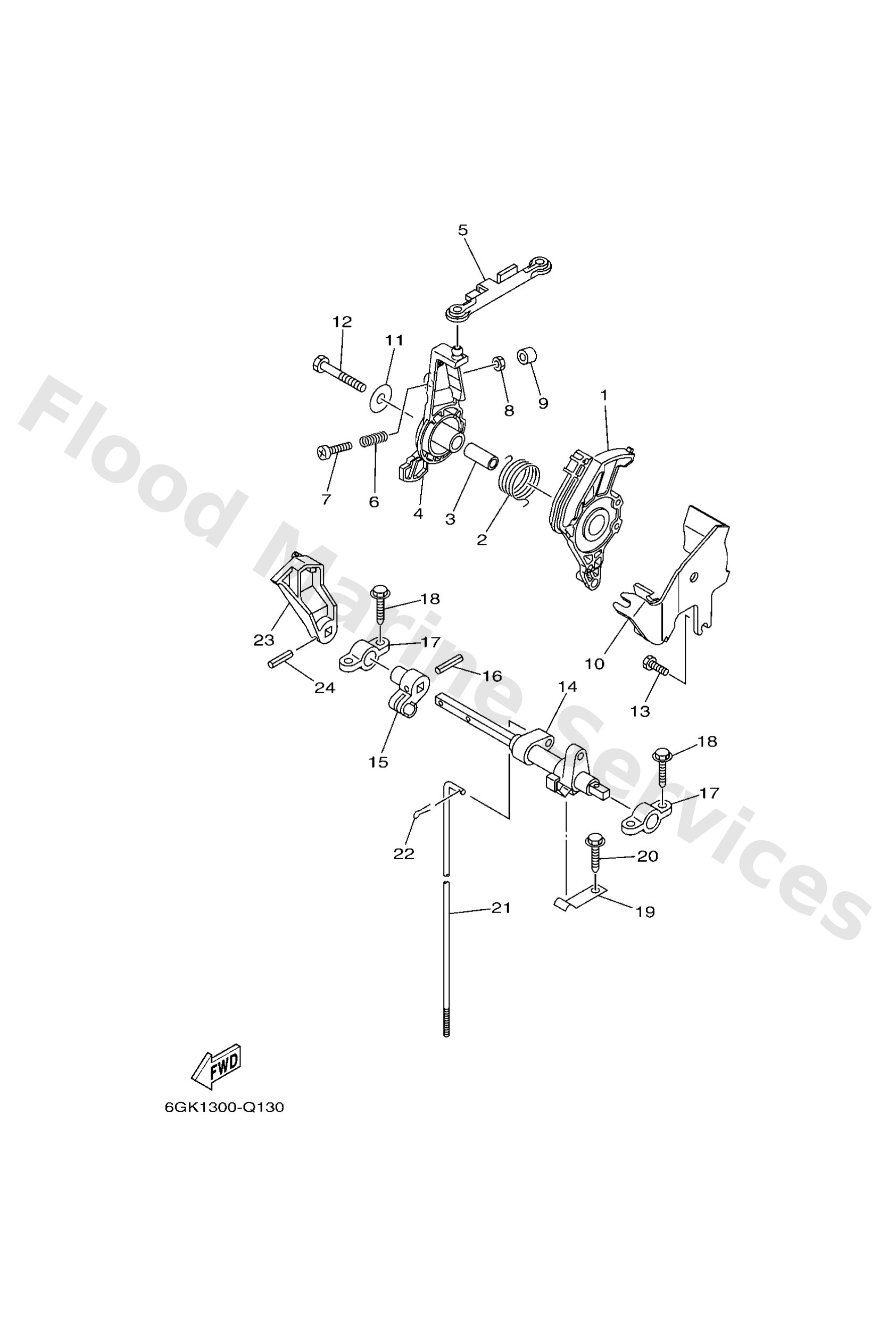

Diagram: CONTROL

Diagram

Parts List

66T4163810
Pulley
Diagram Reference: 1
Get Part
66T4216700
Spring 1
Diagram Reference: 2
Get Part
9038708M16
Collar
Diagram Reference: 3
Get Part
66T4163112
Lever, magneto control
Diagram Reference: 4
Get Part
66T4123700
Joint, link
Diagram Reference: 5
Get Part
9050110M84
Spring, compression
Diagram Reference: 6
Get Part
9788006035
Screw, pan head(6h4)
Diagram Reference: 7
Get Part
9538006700
Nut
Diagram Reference: 8
Get Part
6884419400
Cap
Diagram Reference: 9
Get Part
66T1449710
Stay, throttle wire
Diagram Reference: 10
Get Part
9020108M54
Washer, plate (6e5)
Diagram Reference: 11
Get Part
97D9508045
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
97D9506014
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
66T4412101
Lever, shift rod
Diagram Reference: 14
Get Part
66M4412200
Bushing, shift rod lever
Diagram Reference: 15
Get Part
9025403M05
Pin, spring
Diagram Reference: 16
Get Part
6F54166200
Bracket 2
Diagram Reference: 17
Get Part
9010906M81
Bolt
Diagram Reference: 18
Get Part
6824411601
Spring
Diagram Reference: 19
Get Part
9010906M80
Bolt
Diagram Reference: 20
Get Part
66T4414310 (L(21.7"))
Rod, shift
Diagram Reference: 21
Get Part
9149016012
Pin, cotter (e57)
Diagram Reference: 22
Get Part
66T4412501
Lever, shift rod
Diagram Reference: 23
