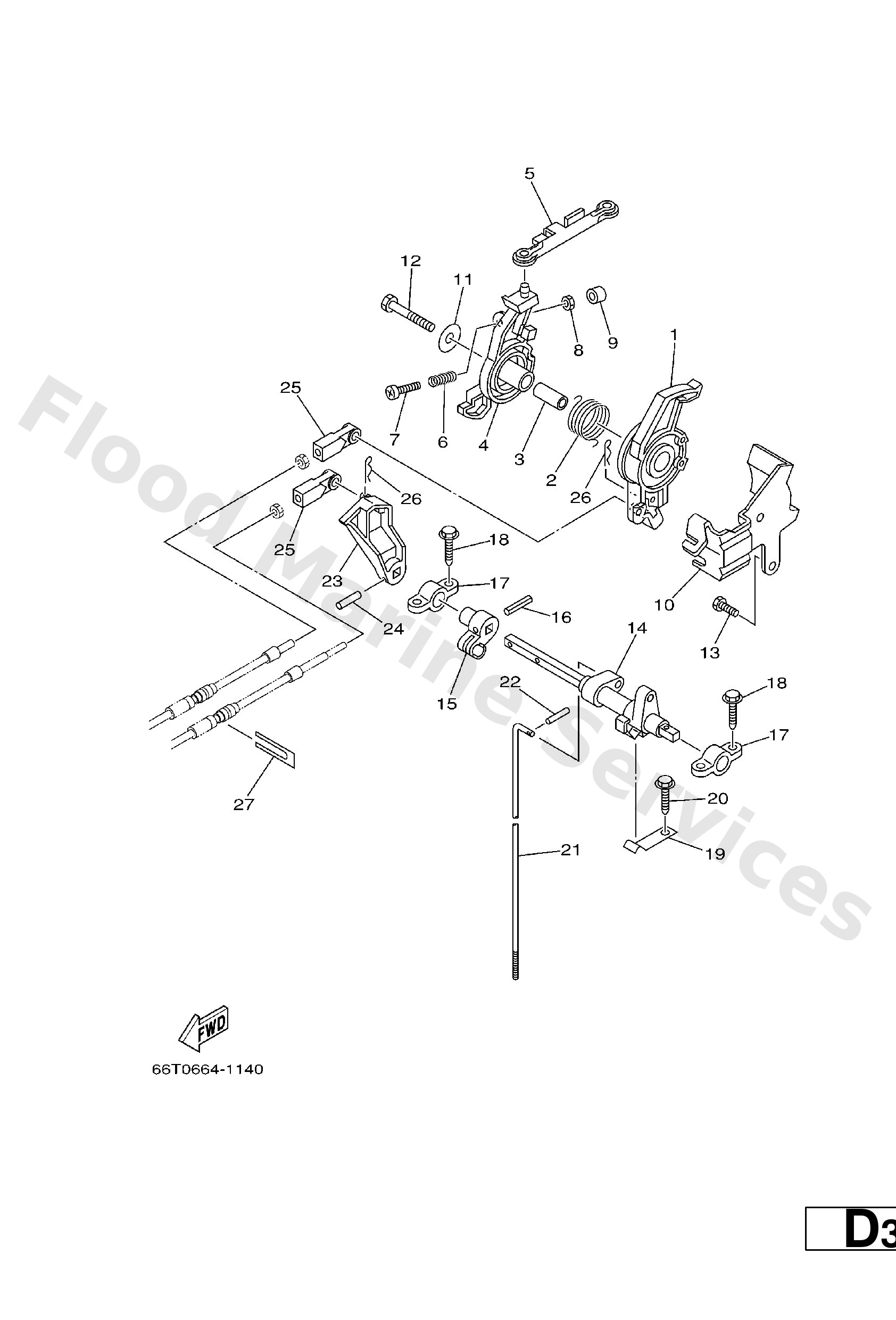

Diagram: CONTROL

Diagram

Parts List

66T--41638--00
Pulley
Diagram Reference: 1
Get Part
66T--42167--00
Spring 1
Diagram Reference: 2
Get Part
90387--08M16
14 −
Diagram Reference: 3
Get Part
66T--41631--01
Lever, magneto control
Diagram Reference: 4
Get Part
66T--41237--00
Joint, link
Diagram Reference: 5
Get Part
90501--10M84
Spring, compression
Diagram Reference: 6
Get Part
97880--06035
Screw, pan head(6h4)
Diagram Reference: 7
Get Part
95380--06700
Nut
Diagram Reference: 8
Get Part
688--44194--00
Cap
Diagram Reference: 9
Get Part
66T--14497--00
Stay, throttle wire
Diagram Reference: 10
Get Part
90201--08M54
Washer, plate (6e5)
Diagram Reference: 11
Get Part
97095--08045
Bolt, hexagon
Diagram Reference: 12
Get Part
97095--06014
Bolt(gj3)
Diagram Reference: 13
Get Part
66T--44121--00
Lever, shift rod
Diagram Reference: 14
Get Part
66M--44122--00
Bushing, shift rod lever
Diagram Reference: 15
Get Part
90254--03M05
Pin, spring
Diagram Reference: 16
Get Part
6F5--41662--00
Bracket 2
Diagram Reference: 17
Get Part
90109--06M81
Bolt
Diagram Reference: 18
Get Part
682--44116--01
Spring
Diagram Reference: 19
Get Part
90109--06M86
Bolt
Diagram Reference: 20
Get Part
66T4414300 (S)
Rod, shift
Diagram Reference: 21
Get Part
66T--44143--10 (L)
Rod, shift
Diagram Reference: 21
Get Part
91490--16012
Pin, cotter (e57)
Diagram Reference: 22
Get Part
66T--44125--01
Lever, shift rod
Diagram Reference: 23
Get Part
90254--03M04
Pin, spring (6h3)
Diagram Reference: 24
Get Part
663--48344--00
Cable end, remote control
Diagram Reference: 25
Get Part
90468--18008
Clip 620436610000
Diagram Reference: 26
Get Part
6H3--48538--00
Clamp, cable
Diagram Reference: 27
