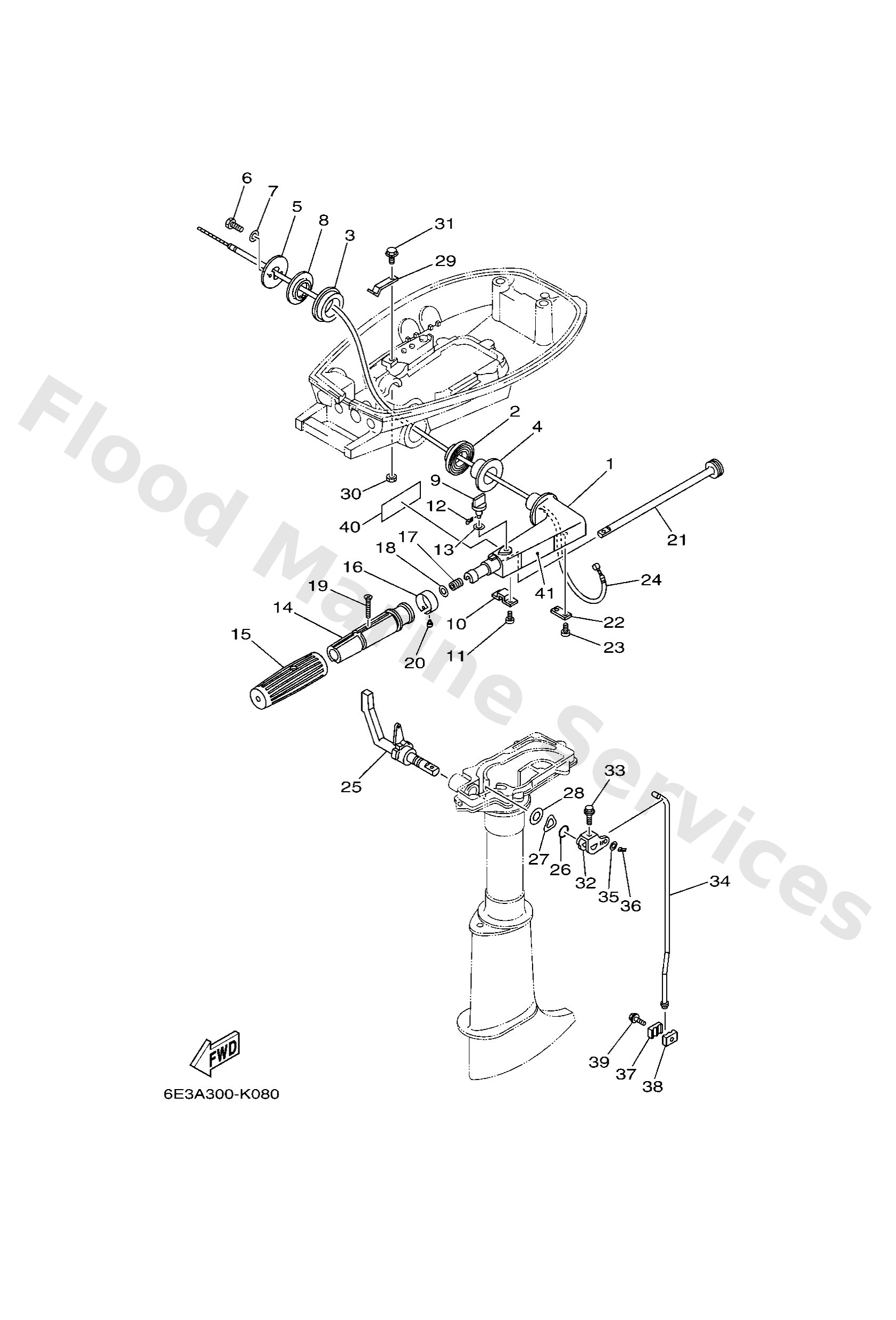

Diagram: CONTROL
Parts List
Handle, steering
Diagram Reference: 1
Bushing, rubber
Diagram Reference: 2
Bushing, rubber
Diagram Reference: 3
Bushing (6e0)
Diagram Reference: 4
Cover, handle steering
Diagram Reference: 5
Bolt, hexagon
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 7
Bushing (6e0)
Diagram Reference: 8
Bolt, friction adjust
Diagram Reference: 9
Cover, throttle lever
Diagram Reference: 10
Screw,pan head (646)
Diagram Reference: 11
Pin, cotter (6g8)
Diagram Reference: 12
Washer (6e0)
Diagram Reference: 13
Grip, steering handle
Diagram Reference: 14
Rubber, handle
Diagram Reference: 15
Indicator, throttle
Diagram Reference: 16
Spring (655)
Diagram Reference: 17
Washer, plain(735)
Diagram Reference: 18
Screw, countersunk
Diagram Reference: 19
Rivet(6l5)
Diagram Reference: 20
Lever, throttle
Diagram Reference: 21
Stay
Diagram Reference: 22
Throttle wire assembly
Diagram Reference: 24
Handle, gear shift
Diagram Reference: 25
O-ring(3ld)
Diagram Reference: 26
Washer, wave (6e0)
Diagram Reference: 27
Washer, plate(663)
Diagram Reference: 28
Spring
Diagram Reference: 29
Nut
Diagram Reference: 30
Bolt, flange deep recess
Diagram Reference: 31
Lever, shift rod 1
Diagram Reference: 32
Bolt, flange deep recess
Diagram Reference: 33
Rod, shift 1
Diagram Reference: 34
Rod, shift 1
Diagram Reference: 34
Washer, plain (646)
Diagram Reference: 35
Pin, cotter
Diagram Reference: 36
Connector, shift rod 1
Diagram Reference: 37
Connector, shift rod 2
Diagram Reference: 38
Bolt, flange(jk3)
Diagram Reference: 39
Label, warning (general)
Diagram Reference: 40
Label, warning (general)
Diagram Reference: 41
