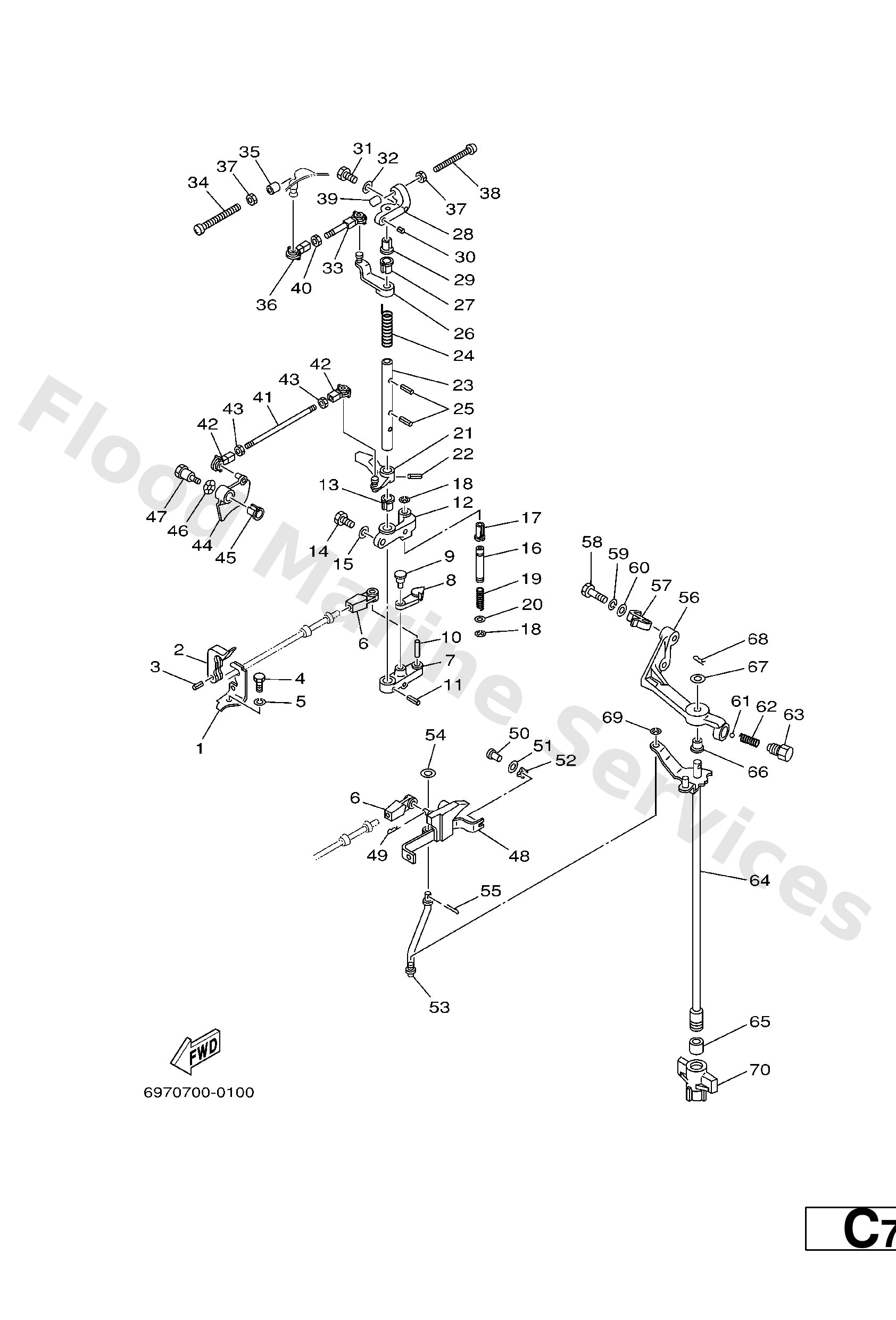

Parts List
Bracket, remote control
Diagram Reference: 1
Clamp, cable 1
Diagram Reference: 2
Pin, spring
Diagram Reference: 3
Bolt, hexagon deep recess
Diagram Reference: 4
Ybs67-8 washer, spring
Diagram Reference: 5
Cable end, remote control
Diagram Reference: 6
Lever, magneto control 2
Diagram Reference: 7
Stopper free, axle link
Diagram Reference: 8
Pin (663)
Diagram Reference: 9
Pin, dowel(663)
Diagram Reference: 10
926-51502-00 pin, spring (700)
Diagram Reference: 11
Bracket 2
Diagram Reference: 12
Bushing 6484418600
Diagram Reference: 13
Bolt (fj0)
Diagram Reference: 14
Washer, plain (646)
Diagram Reference: 15
Stopper
Diagram Reference: 16
Bushing (697)
Diagram Reference: 17
Circlip(22k)
Diagram Reference: 18
Spring, compression(663)
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Lever, magneto control 3
Diagram Reference: 21
Shaft, link connecting
Diagram Reference: 23
Spring, torsion(663)
Diagram Reference: 24
Lever, magneto control
Diagram Reference: 26
Bracket 1
Diagram Reference: 28
Pin, spring
Diagram Reference: 30
Rod 1
Diagram Reference: 33
Screw, pan head(697)
Diagram Reference: 34
Cap
Diagram Reference: 35
Joint, link
Diagram Reference: 36
Nut
Diagram Reference: 37
Screw, pan head(697)
Diagram Reference: 38
Cap
Diagram Reference: 39
Nut, hexagon (663)
Diagram Reference: 40
Link, accel.
Diagram Reference: 41
Joint, link
Diagram Reference: 42
Cam, accel.
Diagram Reference: 44
Washer, wave (676)
Diagram Reference: 46
Bolt(663)
Diagram Reference: 47
Bracket 1
Diagram Reference: 48
Clip 620436610000
Diagram Reference: 49
Pin with head (663)
Diagram Reference: 50
Washer, wave (663)
Diagram Reference: 52
Lever, shift rod
Diagram Reference: 53
Pin, cotter (e57)
Diagram Reference: 55
Bracket
Diagram Reference: 56
Clamp (697)
Diagram Reference: 57
Bolt
Diagram Reference: 58
Ybs67-8 washer, spring
Diagram Reference: 59
Washer, plain (663)
Diagram Reference: 60
Ball (697)
Diagram Reference: 61
Spring 6484411600
Diagram Reference: 62
Bushing 2
Diagram Reference: 63
Handle gear shift assembly
Diagram Reference: 64
Boot, shift rod
Diagram Reference: 65
Bushing (688)
Diagram Reference: 66
Ybs66-8 washer, plain
Diagram Reference: 67
Guide, reverse rod
Diagram Reference: 70
