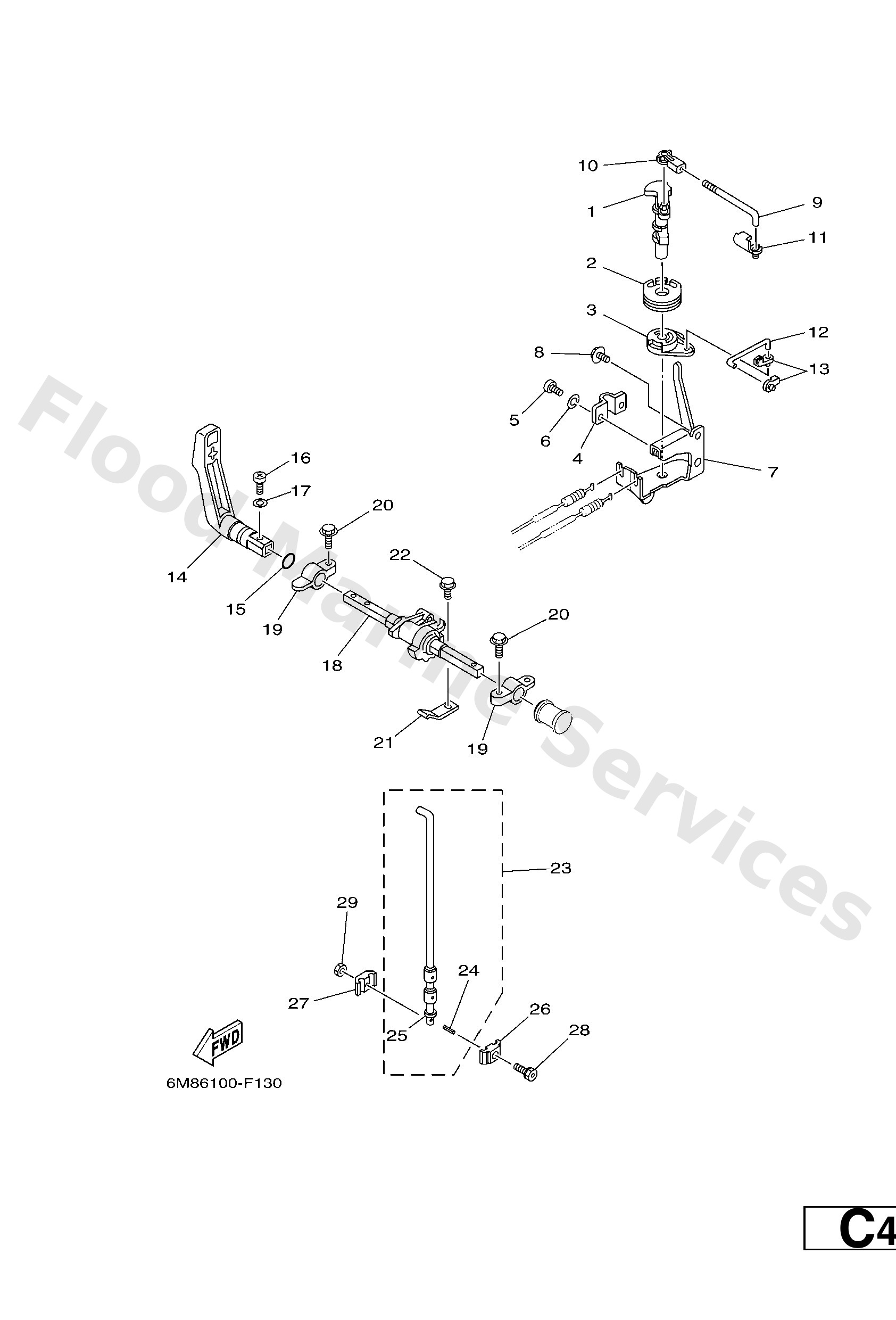

Diagram: CONTROL
Parts List
Lever, magneto control
Diagram Reference: 1
Pulley
Diagram Reference: 2
Lever, free accel 1
Diagram Reference: 3
Bracket 1
Diagram Reference: 4
Screw, pan head(62x)
Diagram Reference: 5
Ybs67-5 washer, spring
Diagram Reference: 6
Stay, throttle wire
Diagram Reference: 7
Bolt, flange(7ht)
Diagram Reference: 8
Joint, link
Diagram Reference: 9
Joint, link
Diagram Reference: 10
Joint, link
Diagram Reference: 11
Link, accel
Diagram Reference: 12
Joint, choke lever
Diagram Reference: 13
Handle, gear shift
Diagram Reference: 14
O-ring(3ld)
Diagram Reference: 15
Screw, pan head(6b0)
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
Lever, shift rod
Diagram Reference: 18
Bracket
Diagram Reference: 19
Bolt (6e0)
Diagram Reference: 20
Spring
Diagram Reference: 21
Bolt, flange deep recess
Diagram Reference: 22
Shift rod assembly
Diagram Reference: 23
Pin, spring
Diagram Reference: 24
Connector, shift rod 1
Diagram Reference: 26
Connecter 1
Diagram Reference: 26
Connecter 2
Diagram Reference: 27
Connecter 2
Diagram Reference: 27
Bolt (6g1)
Diagram Reference: 28
Nut(661)
Diagram Reference: 29
