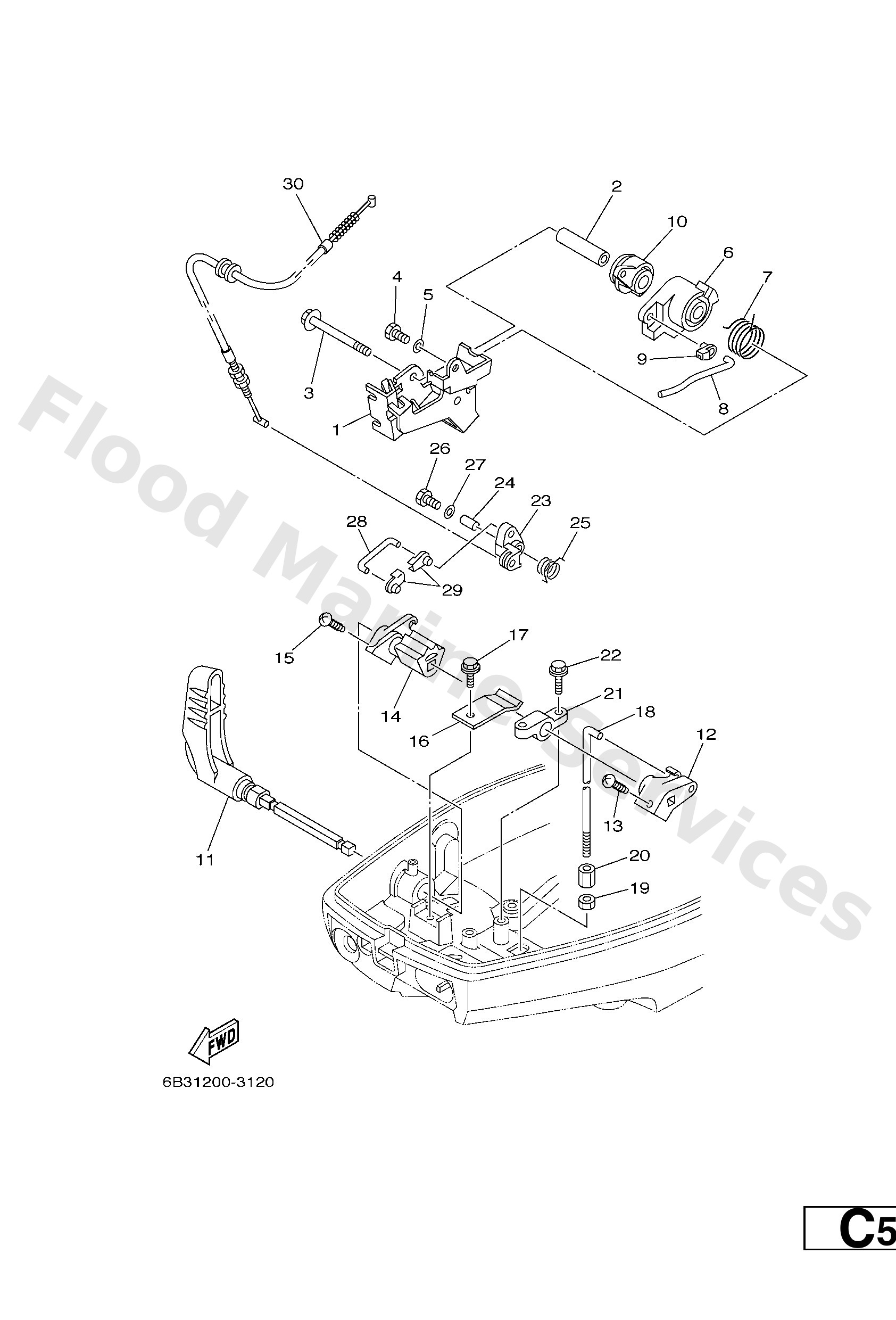

Diagram: CONTROL

Diagram

Parts List

63V1449702
Stay, throttle wire
Diagram Reference: 1
Get Part
9038706M50
Collar(63v)
Diagram Reference: 2
Get Part
9589506065
Bolt, flange(63v)
Diagram Reference: 3
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 4
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 5
Get Part
6B44128300
Lever, free accel.
Diagram Reference: 6
Get Part
9050820M38
Spring, torsion(63v)
Diagram Reference: 7
Get Part
63V4121100
Link, accel.
Diagram Reference: 8
Get Part
6J84126200
Joint, choke lever
Diagram Reference: 9
Get Part
6B44163800
Pulley
Diagram Reference: 10
Get Part
6B444111004D
Handle, gear shift
Diagram Reference: 11
Get Part
6B44412100
Lever, shift rod
Diagram Reference: 12
Get Part
9778040520
Ybs83-420 screw,panh,tapping
Diagram Reference: 13
Get Part
6B44412500
Lever, shift rod
Diagram Reference: 14
Get Part
6B44411600
Spring
Diagram Reference: 16
Get Part
9010906M80
Bolt
Diagram Reference: 17
Get Part
6B44414300
Rod, shift
Diagram Reference: 18
Get Part
9538006700
Nut
Diagram Reference: 19
Get Part
9017006015
Connector, shift rod
Diagram Reference: 20
Get Part
6B44166200
Bracket
Diagram Reference: 21
Get Part
9010906M81
Bolt
Diagram Reference: 22
Get Part
6B41574600
Arm
Diagram Reference: 23
Get Part
9038706M06
Collar (651)
Diagram Reference: 24
Get Part
9050808M39
Spring, torsion(63v)
Diagram Reference: 25
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 26
Get Part
6L21574700
Link
Diagram Reference: 28
Get Part
6B41577000
Cable comp., starter stop
Diagram Reference: 30
