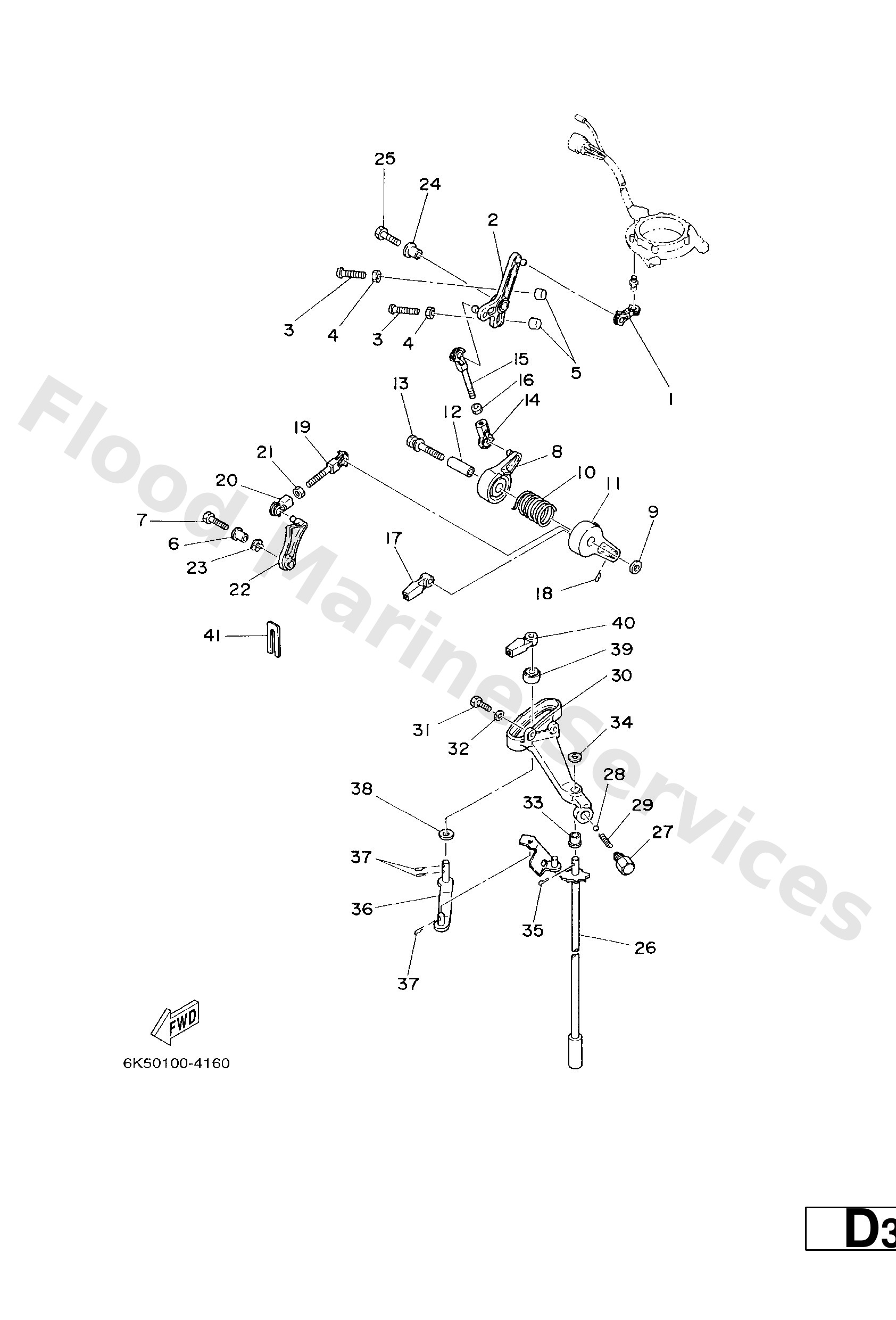

Diagram: CONTROL

Diagram

Parts List

6H3−41238−00

Joint, link 1

Diagram Reference: 1

6H3−41631−00

Lever, magneto control 1

Diagram Reference: 2

90157−06M13

Screw, pan head(6h4)

Diagram Reference: 3

95380−06600

Nut(661)

Diagram Reference: 4

688−44194−00

Cap

Diagram Reference: 5

90387−06M60

Collar (6h3)

Diagram Reference: 6

97095−06025

Bolt

Diagram Reference: 7

6H3−41632−00

Lever, magneto control 2

Diagram Reference: 8

90201−06M31

Washer (6a0)

Diagram Reference: 9

90508−29M19

Spring, torsion

Diagram Reference: 10

6H3−41633−00

Lever, magneto control 3

Diagram Reference: 11

90387−06M59

Collar (6h3)

Diagram Reference: 12

90119−06M91

Bolt, with washer

Diagram Reference: 13

662−41237−01

Joint, link

Diagram Reference: 14

679−41636−00

Rod, magneto control

Diagram Reference: 15

95380−05600

Nut, hexagon (663)

Diagram Reference: 16

663−48344−00

Cable end, remote control

Diagram Reference: 17

90468−18008

Clip 620436610000

Diagram Reference: 18

682−41237−50

Joint, link 2

Diagram Reference: 19

6H3−41213−01

Cam, accele

Diagram Reference: 22

90206−10M04

Washer, wave (676)

Diagram Reference: 23

6K5−44120−11

Handle gear shift assembly

Diagram Reference: 26

648−42715−00

Bushing 2

Diagram Reference: 27

93501−04M02

Ball (697)

Diagram Reference: 28

90501−12082

Spring 6484411600

Diagram Reference: 29

6H3−44117−00−94

Bracket 1

Diagram Reference: 30

97013−06020

Bolt(62y)

Diagram Reference: 31

92903−06600

Washer, plain (646)

Diagram Reference: 32

90386−07M58

Bush(6h1)

Diagram Reference: 33

92990−08200

Ybs66-8 washer, plain

Diagram Reference: 34

91490−20012

Pin, cotter (648)

Diagram Reference: 35

6H3−44121−01

Lever, shift rod

Diagram Reference: 36

90202−07M07

Washer, plate (688)

Diagram Reference: 38

688−44122−00

Bushing, shift rod lever

Diagram Reference: 39

6H3−48538−00

Clamp, cable

Diagram Reference: 41
