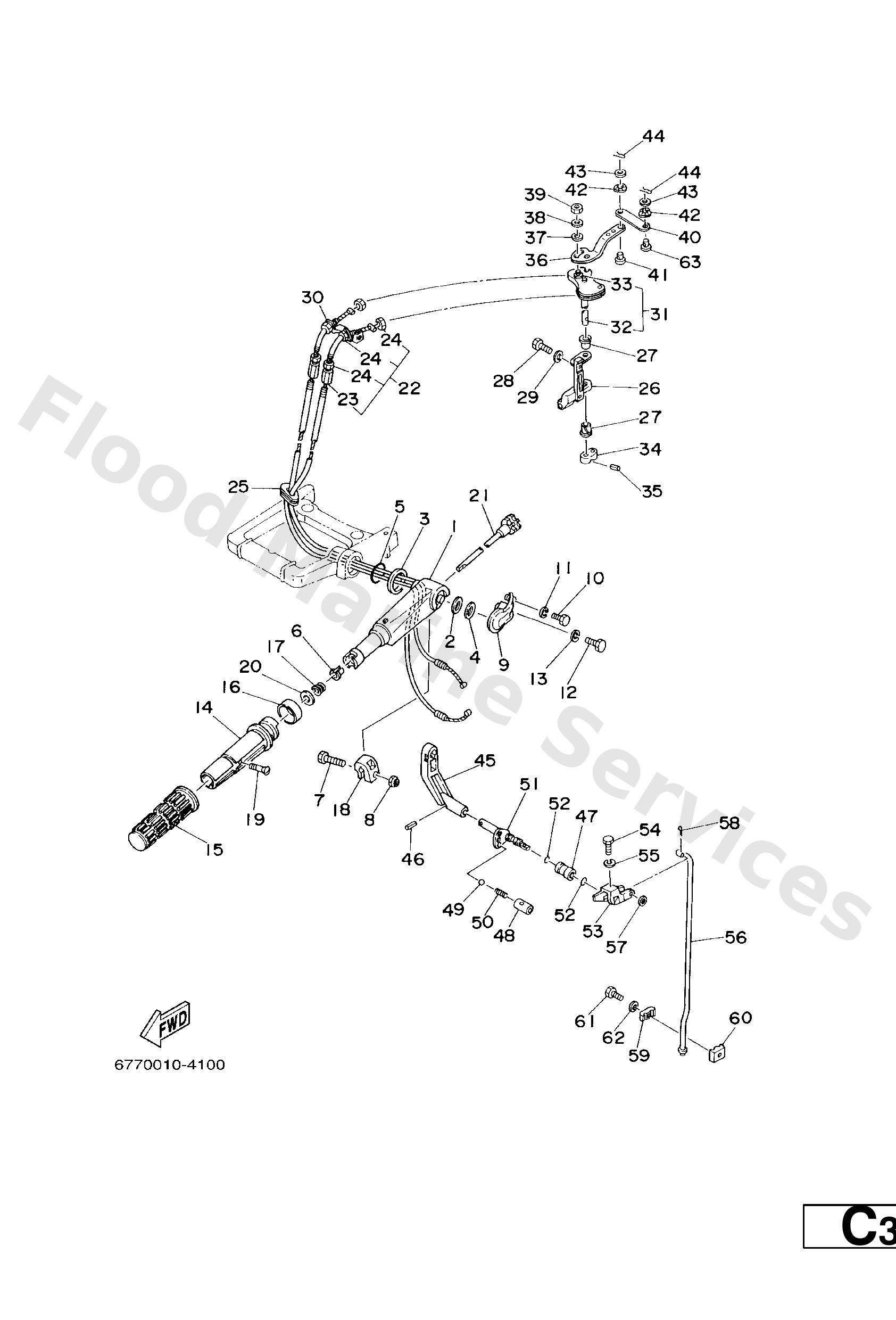

Diagram: CONTROL

Diagram

Parts List

647−42111−02−4D
Handle, steering
Diagram Reference: 1
Get Part
90560−12075
Spacer 6474215500
Diagram Reference: 2
Get Part
90560−30085
Spacer 6474215600
Diagram Reference: 3
Get Part
90560−12141
Spacer, handle 3 (t=0.5)
Diagram Reference: 4
Get Part
93210−25032
O-ring (437)
Diagram Reference: 5
Get Part
90386−08032
Bushing (650)
Diagram Reference: 6
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 7
Get Part
90185−06062
Nut selflocking (656)
Diagram Reference: 8
Get Part
677−42112−00−4D
Handle, steering
Diagram Reference: 9
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 11
Get Part
97095−06040
Bolt (682)
Diagram Reference: 12
Get Part
647−42119−02
Grip steering handle
Diagram Reference: 14
Get Part
647−42177−00
Damper, handle 1
Diagram Reference: 15
Get Part
677−42137−10
Indicator, Throttle
Diagram Reference: 16
Get Part
90501−23215
Spring (655)
Diagram Reference: 17
Get Part
656−42126−01
Piece, friction
Diagram Reference: 18
Get Part
90149−05M13
Screw, countersunk
Diagram Reference: 19
Get Part
92903−10600
Washer, plate
Diagram Reference: 20
Get Part
655−42138−01
Lever, throttle
Diagram Reference: 21
Get Part
677−26301−02
Throttle wire assembly
Diagram Reference: 22
Get Part
90179−06045
Nut 647263230000
Diagram Reference: 23
Get Part
90170−06011
Nut hexagon 647263190000
Diagram Reference: 24
Get Part
90480−16M03
Grommet (677)
Diagram Reference: 25
Get Part
677−41661−00−94
Bracket 1
Diagram Reference: 26
Get Part
97095−06035
Bolt(j52)
Diagram Reference: 28
Get Part
655−14497−01
Stay, throttle wire
Diagram Reference: 30
Get Part
655−41638−01
Pulley
Diagram Reference: 31
Get Part
655−41635−00
Shaft, Link Connecting
Diagram Reference: 32
Get Part
650−41641−00
Boss, Lever
Diagram Reference: 33
Get Part
655−48541−00−4D
Stay
Diagram Reference: 34
Get Part
90254−03003
Pin, spring
Diagram Reference: 35
Get Part
677−41631−00
Lever, magneto control 1
Diagram Reference: 36
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 37
Get Part
92990−06100
Washer(6a1)
Diagram Reference: 38
Get Part
95380−06600
Nut(661)
Diagram Reference: 39
Get Part
677−41632−00
Lever, magneto control 2
Diagram Reference: 40
Get Part
647−41652−00
Set pin,vagneto control lever2
Diagram Reference: 41
Get Part
90206−05005
Washer, wave(656)
Diagram Reference: 42
Get Part
92990−05200
Ybs66-5 washer, plain
Diagram Reference: 43
Get Part
90468−10005
Pin, hair 6264123500
Diagram Reference: 44
Get Part
655−44111−02−4D
Handle, gear shift
Diagram Reference: 45
Get Part
91690−40016
Pin, spring (648)
Diagram Reference: 46
Get Part
655−44122−03
Bushing, shift rod lever
Diagram Reference: 47
Get Part
655−42715−00
Bushing 2
Diagram Reference: 48
Get Part
93505−16024
Ball
Diagram Reference: 49
Get Part
90501−12274
Spring 6554411600
Diagram Reference: 50
Get Part
677−44119−00
Shaft, change
Diagram Reference: 51
Get Part
93210−09165
O-ring
Diagram Reference: 52
Get Part
655−44121−01
Lever, shift rod 1
Diagram Reference: 53
Get Part
97090−05020
Bolt
Diagram Reference: 54
Get Part
92990−05100
Ybs67-5 washer, spring
Diagram Reference: 55
Get Part
655−44143−01
Rod, Shift
Diagram Reference: 56
Get Part
92990−06200
Ybs66-6 washer, plain
Diagram Reference: 57
Get Part
91490−16010
Pin, cotter
Diagram Reference: 58
Get Part
616−44145−01
Connector, shift rod 1
Diagram Reference: 59
Get Part
616−44146−01
Connector, shift rod 2
Diagram Reference: 60
Get Part
90240−05004
Pin w/hole 650416510000
Diagram Reference: 63
Get Part
