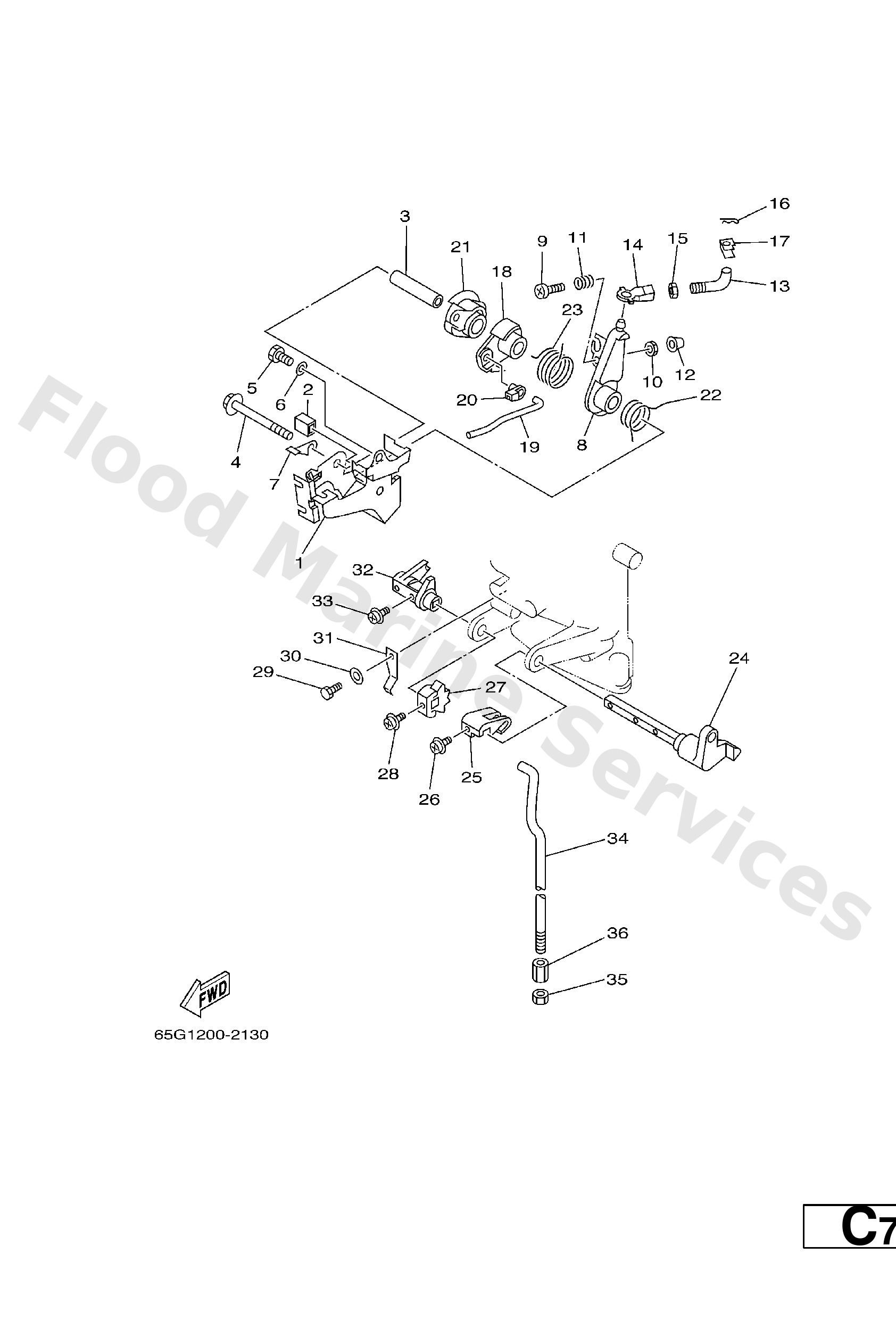

Diagram: CONTROL

Diagram

Parts List

63V−14497−02
Stay, throttle wire
Diagram Reference: 1
Get Part
65G−44194−00
Cap
Diagram Reference: 2
Get Part
90387−06M50
Collar(63v)
Diagram Reference: 3
Get Part
95895−06065
Bolt, flange(63v)
Diagram Reference: 4
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 5
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 6
Get Part
63V−41282−00 (EK9.9H−SRI LANKA)
Stopper, free accel. link
Diagram Reference: 7
Get Part
63V−41631−00
Lever, magneto control
Diagram Reference: 8
Get Part
97885−06030
Screw, pan head(6e0)
Diagram Reference: 9
Get Part
95380−06600
Nut(661)
Diagram Reference: 10
Get Part
90501−12M16
Spring (6a1)
Diagram Reference: 11
Get Part
688−44194−00
Cap
Diagram Reference: 12
Get Part
63V−41238−00
Joint, link
Diagram Reference: 13
Get Part
662−41237−01
Joint, link
Diagram Reference: 14
Get Part
95380−05700
Nut (656)
Diagram Reference: 15
Get Part
90468−10005
Pin, hair 6264123500
Diagram Reference: 16
Get Part
63V−41223−00
Washer, lock 1
Diagram Reference: 17
Get Part
63V−41283−01
Lever, free accel.
Diagram Reference: 18
Get Part
63V−41211−00
Link, accel.
Diagram Reference: 19
Get Part
661−41262−02
Joint, choke lever
Diagram Reference: 20
Get Part
63V−41638−00
Pulley
Diagram Reference: 21
Get Part
90508−16M37
Spring, torsion(63v)
Diagram Reference: 22
Get Part
90508−20M38
Spring, torsion(63v)
Diagram Reference: 23
Get Part
63V−44123−01
Arm, shift rod
Diagram Reference: 24
Get Part
63V−44121−01
Lever, shift rod
Diagram Reference: 25
Get Part
90159−05M25
Screw,pan head (646)
Diagram Reference: 26
Get Part
63V−44125−00
Lever, shift rod
Diagram Reference: 27
Get Part
63V−44116−00
Spring
Diagram Reference: 31
Get Part
63V−44122−01
Bushing, shift rod lever
Diagram Reference: 32
Get Part
63V−44143−01
Rod, shift
Diagram Reference: 34
Get Part
95380−06700
Nut
Diagram Reference: 35
Get Part
90170−06015
Connector, shift rod
Diagram Reference: 36
Get Part
