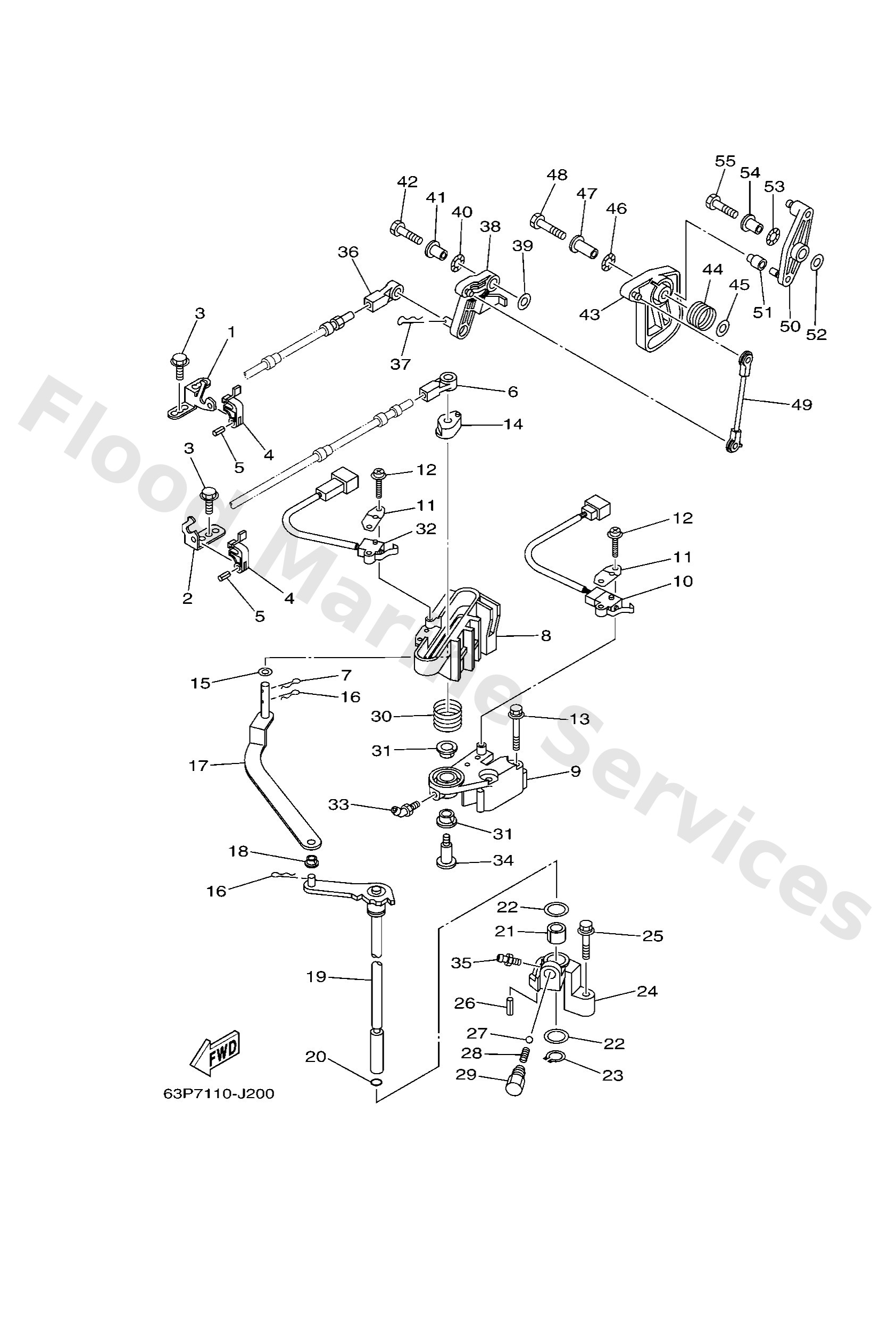

Parts List
Bracket, remote control 1
Diagram Reference: 1
Bracket, remote control 2
Diagram Reference: 2
Bolt
Diagram Reference: 3
Clamp, cable 1
Diagram Reference: 4
Pin, spring (663)
Diagram Reference: 5
Cable end, remote control
Diagram Reference: 6
Clip 620436610000
Diagram Reference: 7
Bracket
Diagram Reference: 8
Bracket
Diagram Reference: 9
Switch assembly
Diagram Reference: 10
Plate
Diagram Reference: 11
Screw, with washer(61b)
Diagram Reference: 12
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Bushing, shift rod lever
Diagram Reference: 14
Washer, plate (6e5)
Diagram Reference: 15
Lever, shift rod
Diagram Reference: 17
Bushing (688)
Diagram Reference: 18
Handle gear shift assembly
Diagram Reference: 19
O-ring
Diagram Reference: 20
Bush(6e5)
Diagram Reference: 21
Washer, plate(663)
Diagram Reference: 22
Circlip
Diagram Reference: 23
Bracket
Diagram Reference: 24
Bolt, hexagon w/w deep recess
Diagram Reference: 25
Ball (697)
Diagram Reference: 27
Spring 6484411600
Diagram Reference: 28
Bushing 2
Diagram Reference: 29
Spring, torsion(61a)
Diagram Reference: 30
Bush(666)
Diagram Reference: 31
Switch assembly
Diagram Reference: 32
Nipple, grease(61a)
Diagram Reference: 33
Bolt
Diagram Reference: 34
Nipple, grease(6a1)
Diagram Reference: 35
Lever, throttle control
Diagram Reference: 38
Washer (6a0)
Diagram Reference: 39
Washer, wave (676)
Diagram Reference: 40
Coller (6a0)
Diagram Reference: 41
Bolt
Diagram Reference: 42
Cam, accel.
Diagram Reference: 43
Spring
Diagram Reference: 44
Collar
Diagram Reference: 47
Bolt(j52)
Diagram Reference: 48
Joint, link
Diagram Reference: 49
Lever, throttle
Diagram Reference: 50
Bushing
Diagram Reference: 51
