Yamaha Outboard Parts - CONTROL - F2.5AMH (2003) | Flood Marine

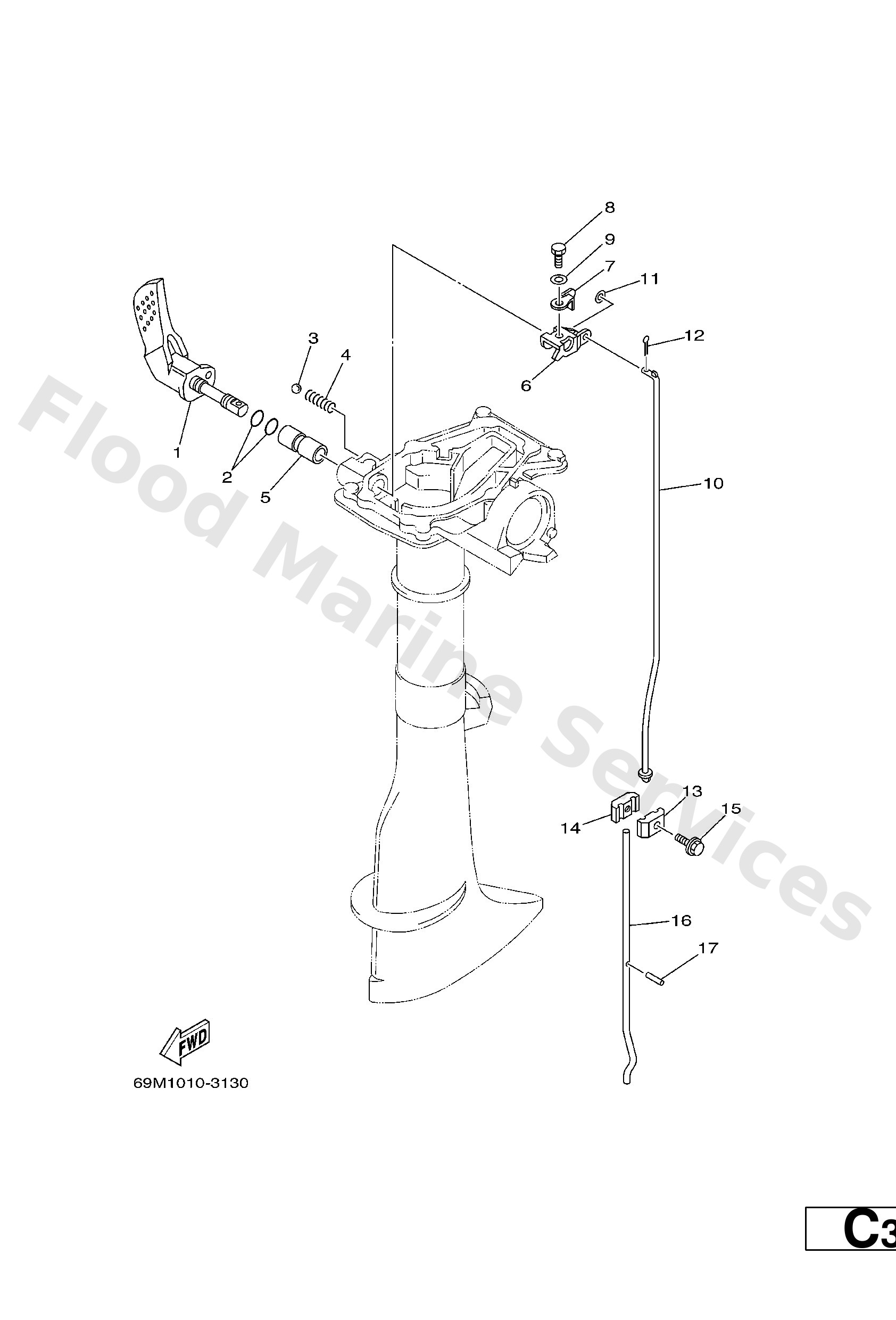

Diagram: CONTROL

Diagram

Parts List

Reference
Description
Price


1
69M−G4111−00
Handle,gear shift
Loading…

↗
2
93210−09350
O-ring
Loading…

↗
3
93505−16024
Ball
Loading…

↗
4
90501−12802
Spring,compression
Loading…

↗
5
68D−G4122−01
Bushing, shift rod lever
Loading…

↗
6
69M−G4121−00
Lever, shift rod
Loading…

↗
7
69M−44126−00
Washer, shift rod
Loading…

↗
8
97095−05012
Bolt, hexagon
Loading…

↗
9
92995−05600
Washer, plain (646)
Loading…

↗
10
69M−44143−00
Rod, shift
Loading…

↗
11
92990−05600
Washer, plain (646)
Loading…

↗
12
91490−16010
Pin, cotter
Loading…

↗
13
6N0−G4145−10
Connecter 1
Loading…

↗
14
6N0−G4146−10
Connecter 2
Loading…

↗
15
90119−06ME0
Bolt, with washer
Loading…

↗
16
6L5−44144−00 S
Rod, shift
Loading…

↗
16
6L5−44144−10 L
Rod, shift
Loading…

↗
17
91609−25014
Pin, Spring
Loading…

↗
