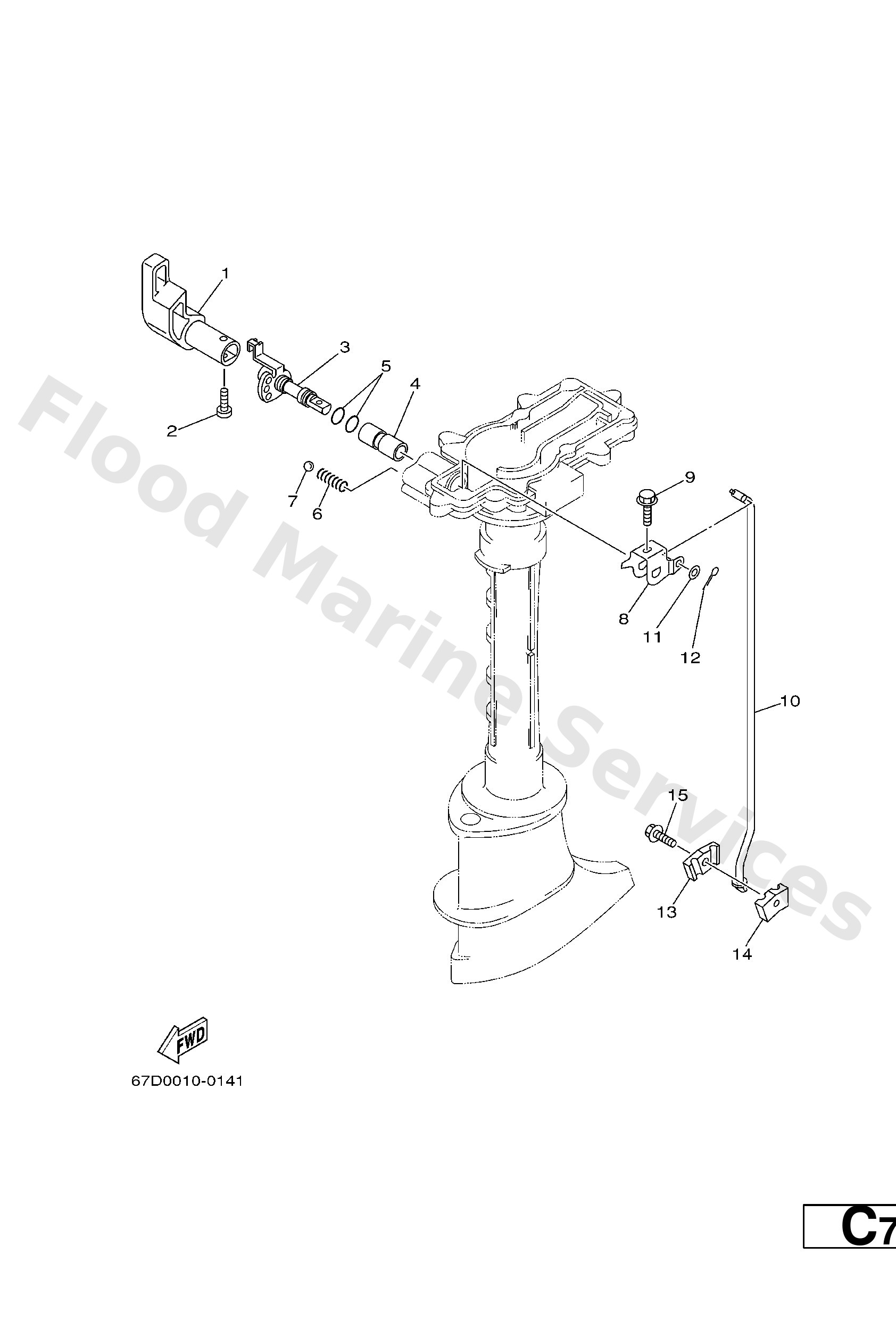

Diagram: CONTROL

Diagram

Parts List

68D−G4111−00
Handle, gear shift
Diagram Reference: 1
Get Part
98680−05520
Ybs53-520 screw,flat head
Diagram Reference: 2
Get Part
68D−G4119−00
Shaft, Change
Diagram Reference: 3
Get Part
68D−G4122−01
Bushing, shift rod lever
Diagram Reference: 4
Get Part
93210−09350
O-ring
Diagram Reference: 5
Get Part
90501−12274
Spring 6554411600
Diagram Reference: 6
Get Part
93505−16024
Ball
Diagram Reference: 7
Get Part
68D−G4121−00
Lever, Shift Rod
Diagram Reference: 8
Get Part
90119−05M04
Bolt, with washer
Diagram Reference: 9
Get Part
67D−44143−01
Rod, Shift
Diagram Reference: 10
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 11
Get Part
91490−16010
Pin, cotter
Diagram Reference: 12
Get Part
68D−G4145−00
Connector, shift rod 1
Diagram Reference: 13
Get Part
68D−G4146−00
Connector, shift rod 2
Diagram Reference: 14
Get Part
90119−06ME0
Bolt, with washer
Diagram Reference: 15
Get Part
