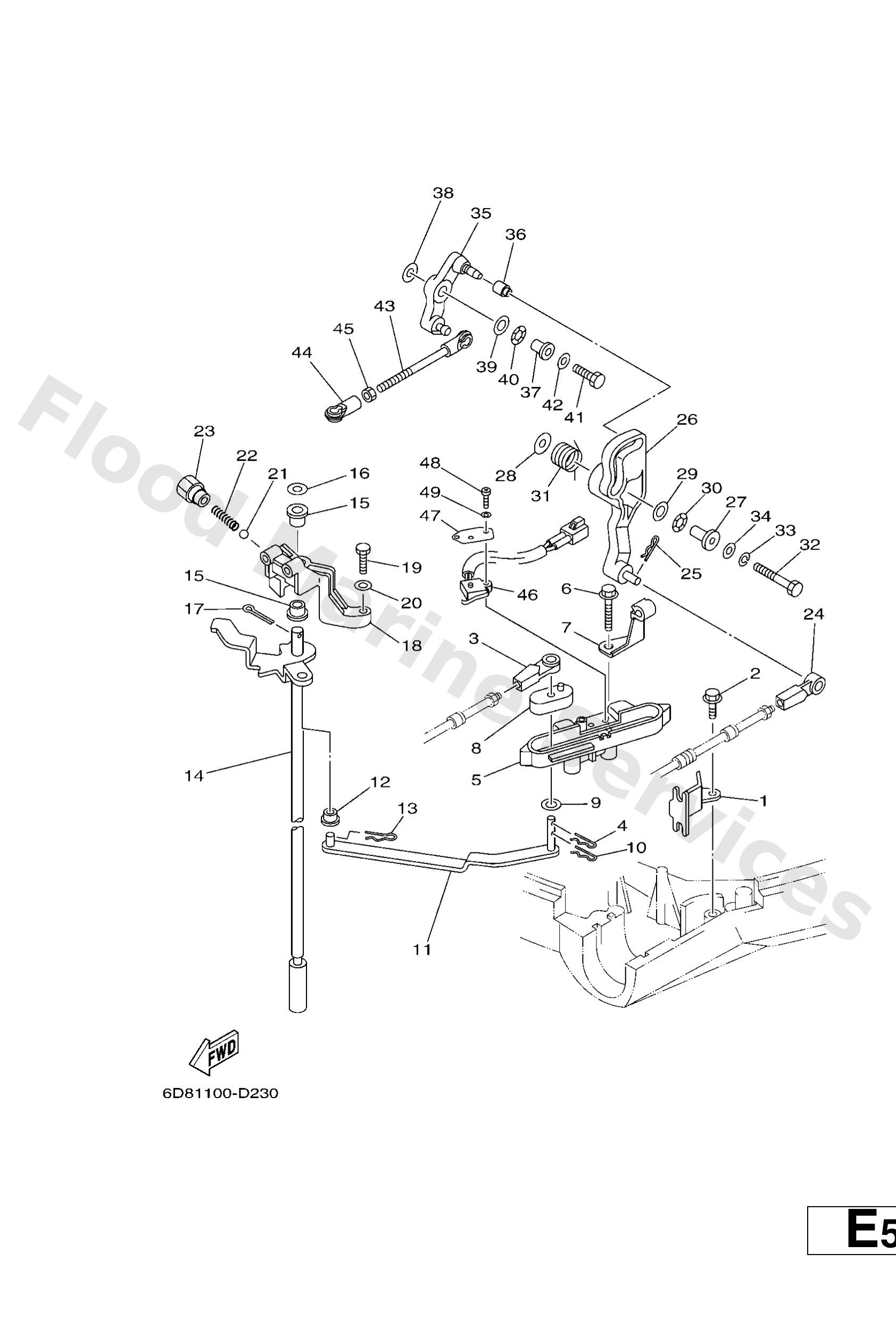

Parts List
Clamp, cable 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Cable end, remote control
Diagram Reference: 3
Clip 620436610000
Diagram Reference: 4
Bracket
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Clamp
Diagram Reference: 7
Bushing, shift rod lever
Diagram Reference: 8
Washer, plate (688)
Diagram Reference: 9
Lever, shift rod
Diagram Reference: 11
Bushing (688)
Diagram Reference: 12
Handle gear shift assembly
Diagram Reference: 14
Bush(61a)
Diagram Reference: 15
Washer, plate(61a)
Diagram Reference: 16
Pin, cotter (648)
Diagram Reference: 17
Bracket
Diagram Reference: 18
Bolt
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Ball (697)
Diagram Reference: 21
Spring 6484411600
Diagram Reference: 22
Bushing 2
Diagram Reference: 23
Lever, throttle control
Diagram Reference: 26
Collar
Diagram Reference: 27
Washer, plate (6e5)
Diagram Reference: 28
Washer, plate(6g9)
Diagram Reference: 29
Washer, wave (676)
Diagram Reference: 30
Spring
Diagram Reference: 31
Bolt(j52)
Diagram Reference: 32
Washer(6a1)
Diagram Reference: 33
Lever, throttle
Diagram Reference: 35
Bushing
Diagram Reference: 36
Collar
Diagram Reference: 37
Washer (6a0)
Diagram Reference: 38
Bolt
Diagram Reference: 41
Joint, link
Diagram Reference: 43
Joint, link 2
Diagram Reference: 44
Nut, hexagon (663)
Diagram Reference: 45
Switch assembly
Diagram Reference: 46
Plate
Diagram Reference: 47
Screw, panhead (796)
Diagram Reference: 48
Ybs67-4 washer, spring
Diagram Reference: 49
