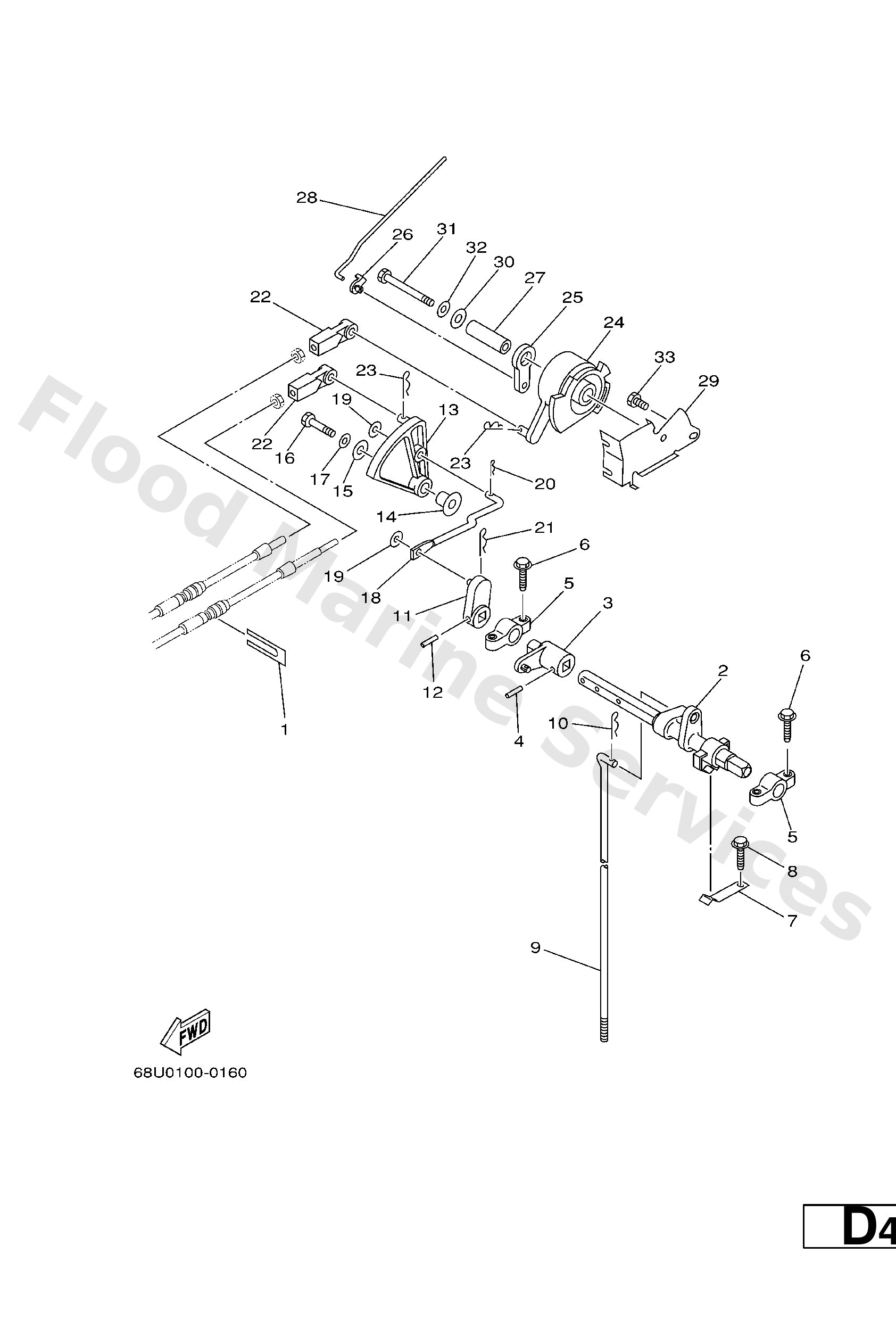

Diagram: CONTROL

Diagram

Parts List

6H3−48538−00
Clamp, cable
Diagram Reference: 1
Get Part
65W−44121−00
Lever, shift rod
Diagram Reference: 2
Get Part
65W−44122−00
15 −
Diagram Reference: 3
Get Part
90254−03M05
Pin, spring
Diagram Reference: 4
Get Part
6F5−41662−00
Bracket 2
Diagram Reference: 5
Get Part
90109−06M81
Bolt
Diagram Reference: 6
Get Part
65W−44116−00
Spring
Diagram Reference: 7
Get Part
90109−06M86
Bolt
Diagram Reference: 8
Get Part
68U−44143−10
Rod, shift
Diagram Reference: 9
Get Part
90468−18008
Clip 620436610000
Diagram Reference: 10
Get Part
65W−44142−00
Joint
Diagram Reference: 11
Get Part
68U−44125−00
15 −
Diagram Reference: 13
Get Part
90387−06M29
Coller (6a0)
Diagram Reference: 14
Get Part
90201−06M31
Washer (6a0)
Diagram Reference: 15
Get Part
97095−06025
Bolt
Diagram Reference: 16
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 17
Get Part
65W−44192−00
Joint, rod 1
Diagram Reference: 18
Get Part
90201−05M06
Washer, plate(61u)
Diagram Reference: 19
Get Part
90468−10005
Pin, hair 6264123500
Diagram Reference: 20
Get Part
663−48344−00
Cable end, remote control
Diagram Reference: 22
Get Part
68U−41638−00
Pulley
Diagram Reference: 24
Get Part
65W−41283−00
Lever, free accel.
Diagram Reference: 25
Get Part
661−41262−02
Joint, choke lever
Diagram Reference: 26
Get Part
90387−06M08
Collar
Diagram Reference: 27
Get Part
65W−41211−00
Link, Accel.
Diagram Reference: 28
Get Part
65W−14497−01
Stay, Throttle Wire
Diagram Reference: 29
Get Part
97095−06055
Bolt, hexagon w/w deep recess
Diagram Reference: 31
Get Part
97095−06010
Bolt
Diagram Reference: 33
