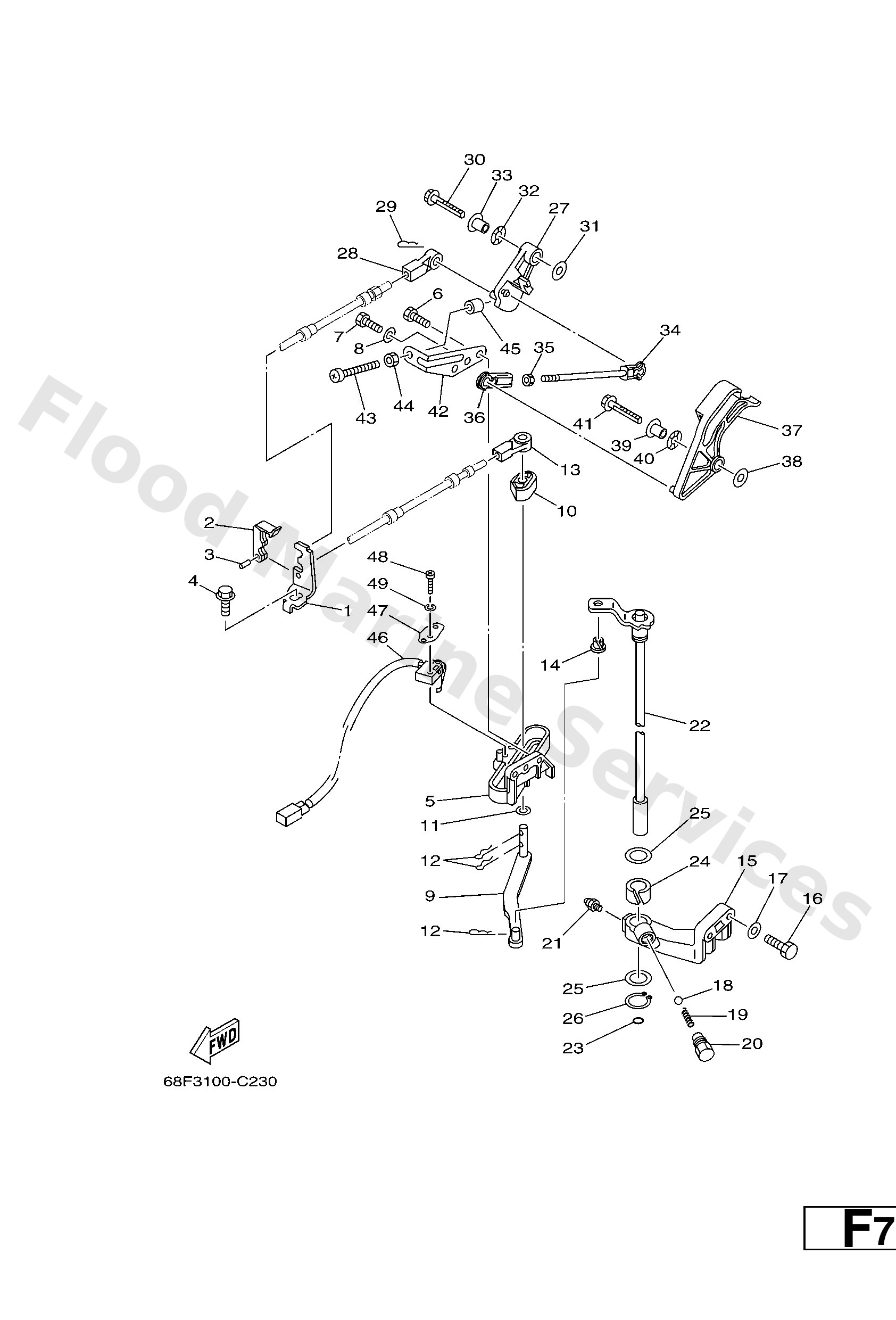

Diagram: CONTROL

Diagram

Parts List

68F4853110
-
Diagram Reference: 1
Get Part
6634853800
Clamp, cable 1
Diagram Reference: 2
Get Part
9169030010
Pin, spring (663)
Diagram Reference: 3
Get Part
9010906M80
Bolt
Diagram Reference: 4
Get Part
68F44117011S
Bracket
Diagram Reference: 5
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 6
Get Part
9701306012
Bolt(gh1)
Diagram Reference: 7
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 8
Get Part
68F4412100
Lever, shift rod
Diagram Reference: 9
Get Part
68J4412201
Bushing, shift rod lever
Diagram Reference: 10
Get Part
9020208M20
Washer, plate (6e5)
Diagram Reference: 11
Get Part
9046818008
Clip 620436610000
Diagram Reference: 12
Get Part
6E54834400
Cable end, remote control
Diagram Reference: 13
Get Part
9038606M12
Bushing (688)
Diagram Reference: 14
Get Part
6E544118011S
Bracket 2
Diagram Reference: 15
Get Part
9701308030
Bolt
Diagram Reference: 16
Get Part
9290308600
Washer, plain (663)
Diagram Reference: 17
Get Part
9350104M02
Ball (697)
Diagram Reference: 18
Get Part
9050112082
Spring 6484411600
Diagram Reference: 19
Get Part
6484271500
Bushing 2
Diagram Reference: 20
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 21
Get Part
6E54412003 (L)
Handle gear shift assembly
Diagram Reference: 22
Get Part
9321009165
O-ring
Diagram Reference: 23
Get Part
9038616M66
Bush(6e5)
Diagram Reference: 24
Get Part
9020216061
Washer, plate(663)
Diagram Reference: 25
Get Part
9341016006
Circlip
Diagram Reference: 26
Get Part
67H4163200
Lever, magneto control
Diagram Reference: 27
Get Part
9011906MA4
Bolt, with washer
Diagram Reference: 30
Get Part
9020106M31
Washer (6a0)
Diagram Reference: 31
Get Part
9020610M04
Washer, wave (676)
Diagram Reference: 32
Get Part
9038706M29
Coller (6a0)
Diagram Reference: 33
Get Part
61A4123700
Joint, link
Diagram Reference: 34
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 35
Get Part
6824123700
Joint, link 2
Diagram Reference: 36
Get Part
68F4121300
Cam, accel.
Diagram Reference: 37
Get Part
68F4274400
Stay
Diagram Reference: 42
Get Part
9015706M11
Screw, pan head(697)
Diagram Reference: 43
Get Part
9538006600
Nut(661)
Diagram Reference: 44
Get Part
6884419400
Cap
Diagram Reference: 45
Get Part
60V8259F00
Switch assembly
Diagram Reference: 46
Get Part
61A8258801
Plate
Diagram Reference: 47
Get Part
9788504016
Screw, panhead (796)
Diagram Reference: 48
Get Part
9299504100
Ybs67-4 washer, spring
Diagram Reference: 49
Get Part
