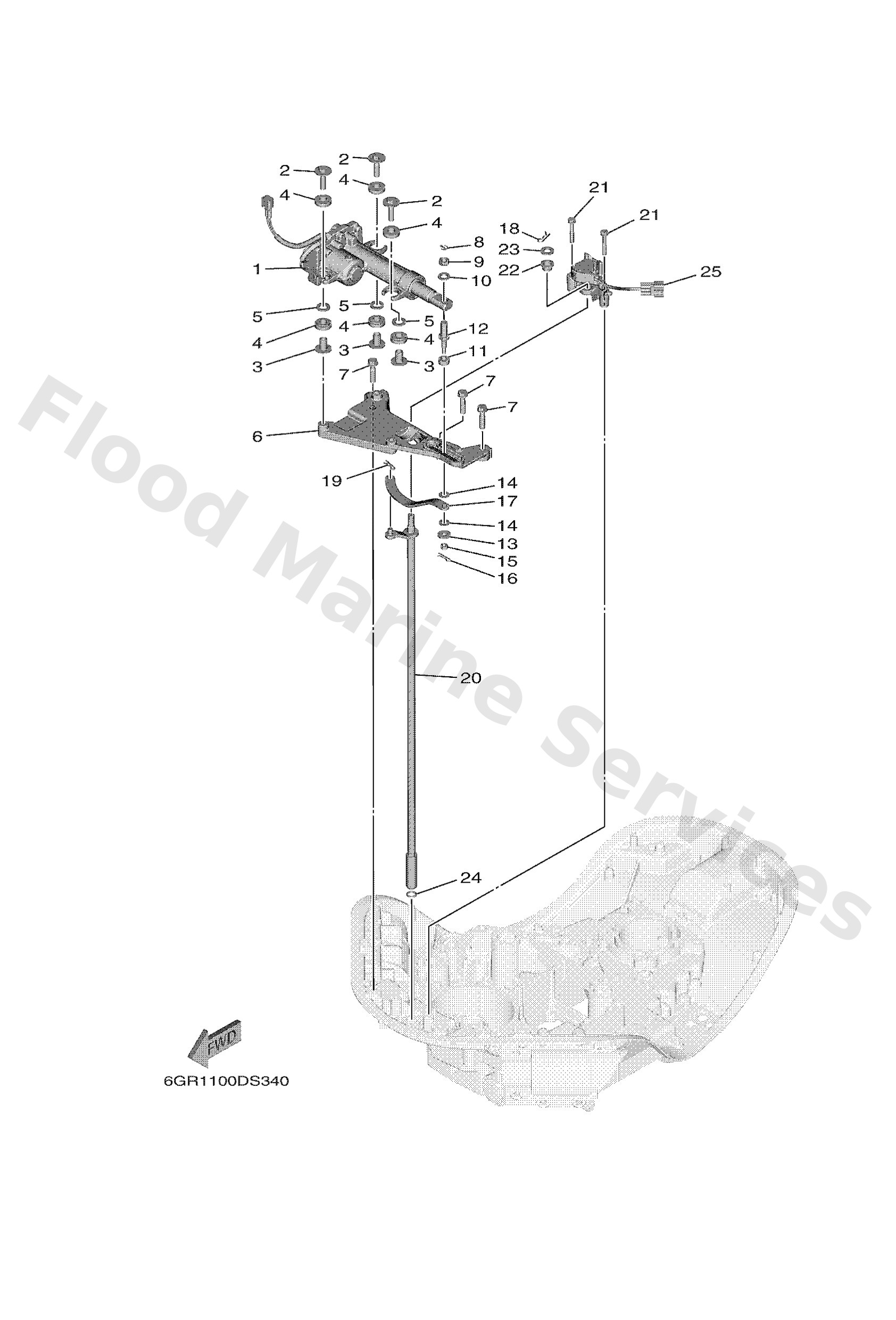

Diagram: CONTROL

Diagram

Parts List

6GR4820A00
Actuator unit
Diagram Reference: 1
Get Part
9011908175
Bolt, with washer
Diagram Reference: 2
Get Part
9038708104
Collar
Diagram Reference: 3
Get Part
6CE8556400
Grommet
Diagram Reference: 4
Get Part
9020112064
Washer, plate
Diagram Reference: 5
Get Part
6GR4411700
Bracket
Diagram Reference: 6
Get Part
9757508535
Bolt(70w)
Diagram Reference: 7
Get Part
9149020015
Pin, cotter (648)
Diagram Reference: 8
Get Part
9538010700
Nut (682)
Diagram Reference: 9
Get Part
9020110048
Washer, plate
Diagram Reference: 10
Get Part
6CE4412200
Bushing, shift rod lever
Diagram Reference: 11
Get Part
6GR4219500
Pin, joint 1
Diagram Reference: 12
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 13
Get Part
9020208M41
Washer, plate(6t4)
Diagram Reference: 14
Get Part
9018506M07
Nut, self-locking(6e5)
Diagram Reference: 15
Get Part
9046818008
Clip 620436610000
Diagram Reference: 16
Get Part
6GR4412100
Lever, shift rod
Diagram Reference: 17
Get Part
90468180A0
Clip
Diagram Reference: 18
Get Part
6GR4412000
Handle gear shift assembly
Diagram Reference: 20
Get Part
9759506540
Bolt, hexagon w/w deep recess
Diagram Reference: 21
Get Part
9038612M61
Bush(6j8)
Diagram Reference: 22
Get Part
9020110M63
Washer, plate
Diagram Reference: 23
Get Part
9321011073
O-ring (p95)
Diagram Reference: 24
Get Part
6GR6830300
Sensor assembly
Diagram Reference: 25
Get Part
