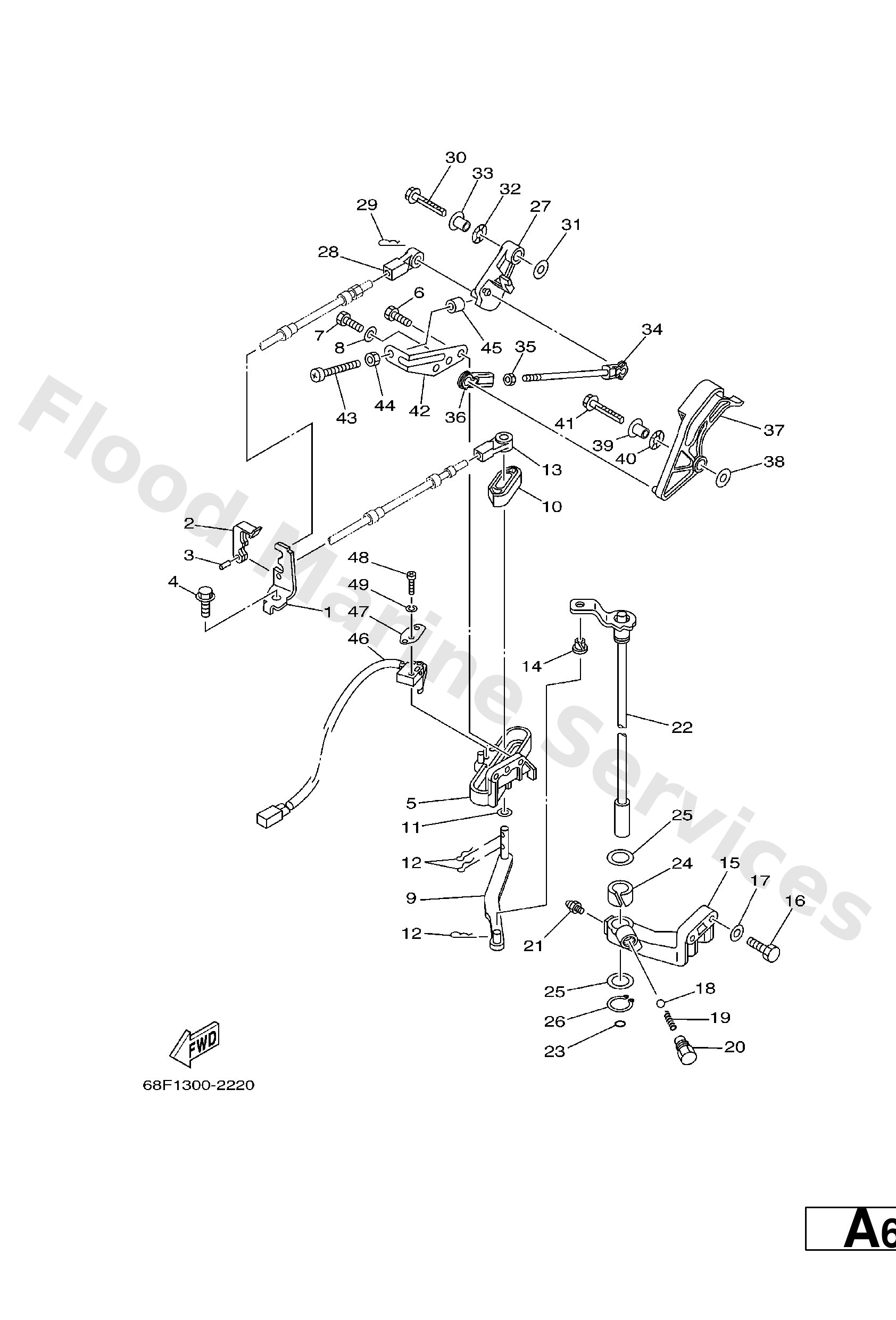

Diagram: CONTROL

Diagram

Parts List

68F4853100
-
Diagram Reference: 1
Get Part
663--48538--00
Clamp, cable 1
Diagram Reference: 2
Get Part
91690--30010
Pin, spring (663)
Diagram Reference: 3
Get Part
90109--06M80
Bolt
Diagram Reference: 4
Get Part
68F44117011S
Bracket
Diagram Reference: 5
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 6
Get Part
97013--06012
Bolt(gh1)
Diagram Reference: 7
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 8
Get Part
68F--44121--00
Lever, shift rod
Diagram Reference: 9
Get Part
68J4412201
Bushing, shift rod lever
Diagram Reference: 10
Get Part
90202--08M20
Washer, plate (6e5)
Diagram Reference: 11
Get Part
90468--18008
Clip 620436610000
Diagram Reference: 12
Get Part
6E5--48344--00
Cable end, remote control
Diagram Reference: 13
Get Part
90386--06M12
Bushing (688)
Diagram Reference: 14
Get Part
6E544118011S
Bracket 2
Diagram Reference: 15
Get Part
97013--08030
Bolt
Diagram Reference: 16
Get Part
92903--08600
Washer, plain (663)
Diagram Reference: 17
Get Part
93501--04M02
Ball (697)
Diagram Reference: 18
Get Part
90501--12082
Spring 6484411600
Diagram Reference: 19
Get Part
648--42715--00
Bushing 2
Diagram Reference: 20
Get Part
93700--06M03
Nipple, grease(6a1)
Diagram Reference: 21
Get Part
6E5--44120--03 (L)
Handle gear shift assembly
Diagram Reference: 22
Get Part
93210--09165
O-ring
Diagram Reference: 23
Get Part
90386--16M66
Bush(6e5)
Diagram Reference: 24
Get Part
90202--16061
Washer, plate(663)
Diagram Reference: 25
Get Part
93410--16006
Circlip
Diagram Reference: 26
Get Part
67H4163200
Lever, magneto control
Diagram Reference: 27
Get Part
90119--06MA4
Bolt, with washer
Diagram Reference: 30
Get Part
90201--06M31
Washer (6a0)
Diagram Reference: 31
Get Part
90206--10M04
Washer, wave (676)
Diagram Reference: 32
Get Part
90387--06M29
Coller (6a0)
Diagram Reference: 33
Get Part
61A--41237--00
Joint, link
Diagram Reference: 34
Get Part
95380--05600
Nut, hexagon (663)
Diagram Reference: 35
Get Part
682--41237--00
Joint, link 2
Diagram Reference: 36
Get Part
68F4121300
Cam, accel.
Diagram Reference: 37
Get Part
68F4274400
Stay
Diagram Reference: 42
Get Part
90157--06M11
Screw, pan head(697)
Diagram Reference: 43
Get Part
95380--06600
Nut(661)
Diagram Reference: 44
Get Part
688--44194--00
Cap
Diagram Reference: 45
Get Part
68F8259F00
Switch assembly
Diagram Reference: 46
Get Part
61A--82588--00
Plate
Diagram Reference: 47
Get Part
97885--04016
Screw, panhead (796)
Diagram Reference: 48
Get Part
92995--04100
Ybs67-4 washer, spring
Diagram Reference: 49
Get Part
