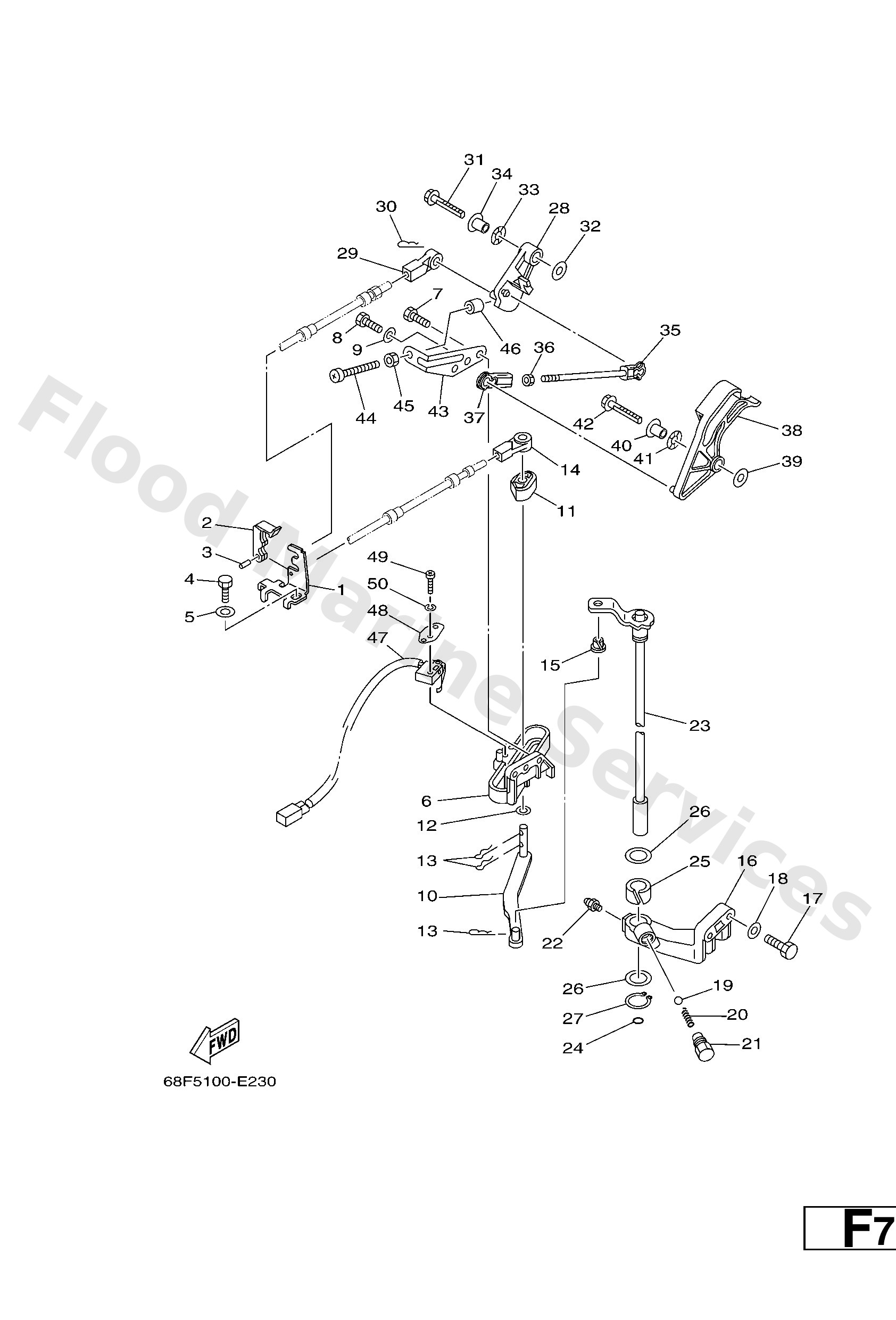

Parts List
Bracket, remote control 1
Diagram Reference: 1
Clamp, cable 1
Diagram Reference: 2
Pin, spring (663)
Diagram Reference: 3
Bolt, hexagon deep recess
Diagram Reference: 4
Washer, plain (663)
Diagram Reference: 5
Bracket
Diagram Reference: 6
Bolt(7u8)
Diagram Reference: 7
Bolt(gh1)
Diagram Reference: 8
Washer, plain (646)
Diagram Reference: 9
Lever, shift rod
Diagram Reference: 10
Bushing, shift rod lever
Diagram Reference: 11
Washer, plate (6e5)
Diagram Reference: 12
Clip 620436610000
Diagram Reference: 13
Cable end, remote control
Diagram Reference: 14
Bushing (688)
Diagram Reference: 15
Bracket 2
Diagram Reference: 16
Bolt
Diagram Reference: 17
Washer, plain (663)
Diagram Reference: 18
Ball (697)
Diagram Reference: 19
Spring 6484411600
Diagram Reference: 20
Bushing 2
Diagram Reference: 21
Nipple, grease(6a1)
Diagram Reference: 22
Handle gear shift assembly
Diagram Reference: 23
O-ring
Diagram Reference: 24
Bush(6e5)
Diagram Reference: 25
Washer, plate(663)
Diagram Reference: 26
Circlip
Diagram Reference: 27
Lever, magneto control
Diagram Reference: 28
Bolt, with washer
Diagram Reference: 31
Washer (6a0)
Diagram Reference: 32
Washer, wave (676)
Diagram Reference: 33
Coller (6a0)
Diagram Reference: 34
Joint, link
Diagram Reference: 35
Nut, hexagon (663)
Diagram Reference: 36
Joint, link 2
Diagram Reference: 37
Cam, accel.
Diagram Reference: 38
Stay
Diagram Reference: 43
Screw, pan head(697)
Diagram Reference: 44
Nut(661)
Diagram Reference: 45
Cap
Diagram Reference: 46
Switch assembly
Diagram Reference: 47
Plate
Diagram Reference: 48
Screw, panhead (796)
Diagram Reference: 49
Ybs67-4 washer, spring
Diagram Reference: 50
