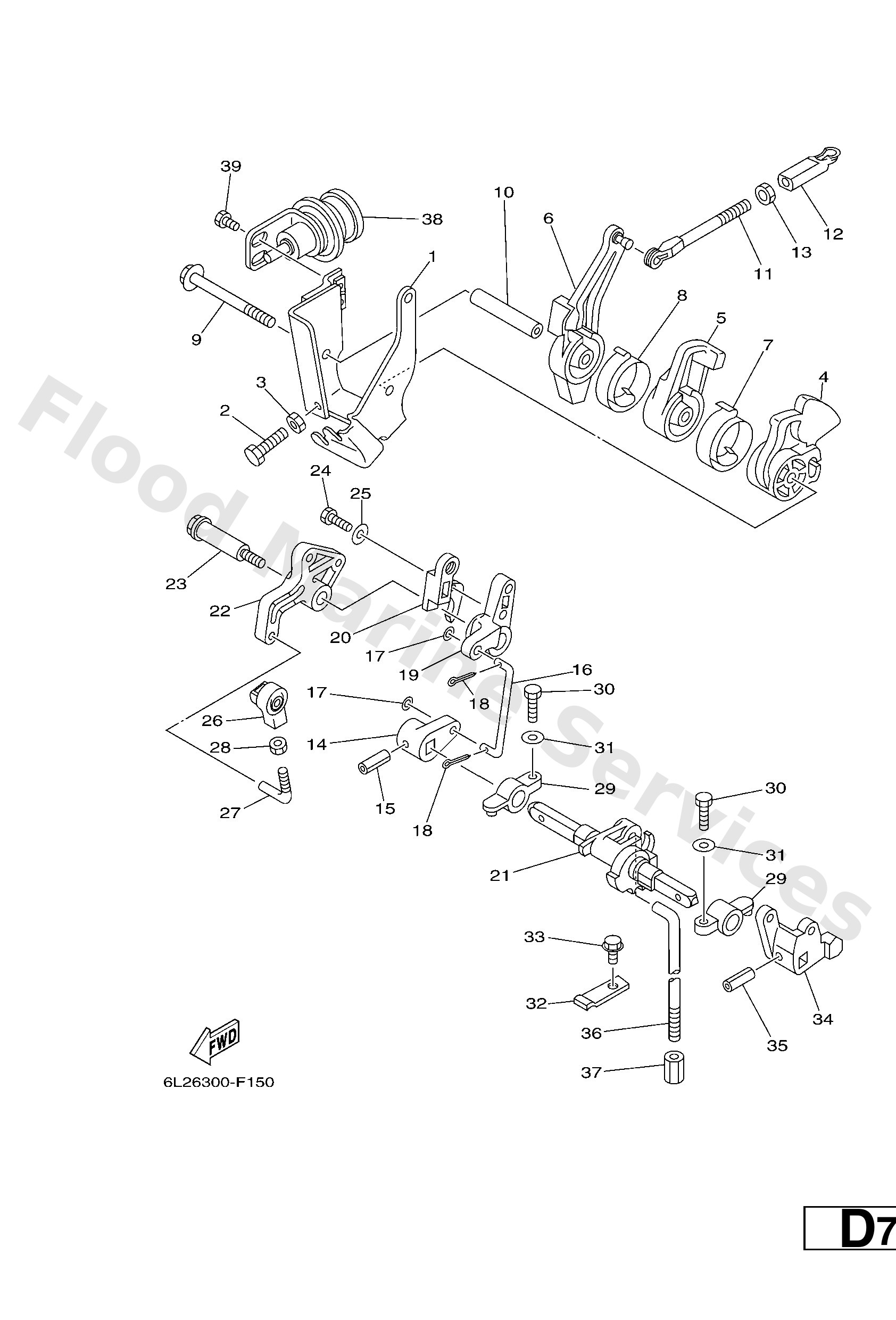

Diagram: CONTROL 1
Parts List
Stay, throttle wire
Diagram Reference: 1
Bolt(7u8)
Diagram Reference: 2
Cam, accel.
Diagram Reference: 4
Lever, free accel.
Diagram Reference: 5
Lever, magneto control
Diagram Reference: 6
Spring 1
Diagram Reference: 7
Spring 1
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 9
Collar
Diagram Reference: 10
Joint
Diagram Reference: 11
Joint, link
Diagram Reference: 12
Nut, hexagon (663)
Diagram Reference: 13
Bushing, shift rod lever
Diagram Reference: 14
Pin, spring (6h3)
Diagram Reference: 15
Rod 2
Diagram Reference: 16
Washer, plate (666)
Diagram Reference: 17
Pin, cotter
Diagram Reference: 18
Link, shift rod
Diagram Reference: 19
Link, shift rod
Diagram Reference: 20
Lever, shift rod
Diagram Reference: 21
Arm, accel.
Diagram Reference: 22
Bolt(6j8)
Diagram Reference: 23
Bolt
Diagram Reference: 24
Washer, plain (646)
Diagram Reference: 25
Joint, link
Diagram Reference: 26
Joint, link
Diagram Reference: 27
Nut (656)
Diagram Reference: 28
Bracket
Diagram Reference: 29
Bolt(62y)
Diagram Reference: 30
Washer, plain (646)
Diagram Reference: 31
Spring
Diagram Reference: 32
Bolt, flange deep recess
Diagram Reference: 33
Arm, shift rod
Diagram Reference: 34
Rod, shift
Diagram Reference: 36
Connector, shift rod
Diagram Reference: 37
Diaphragm assembly 1
Diagram Reference: 38
Bolt (fj1)
Diagram Reference: 39
