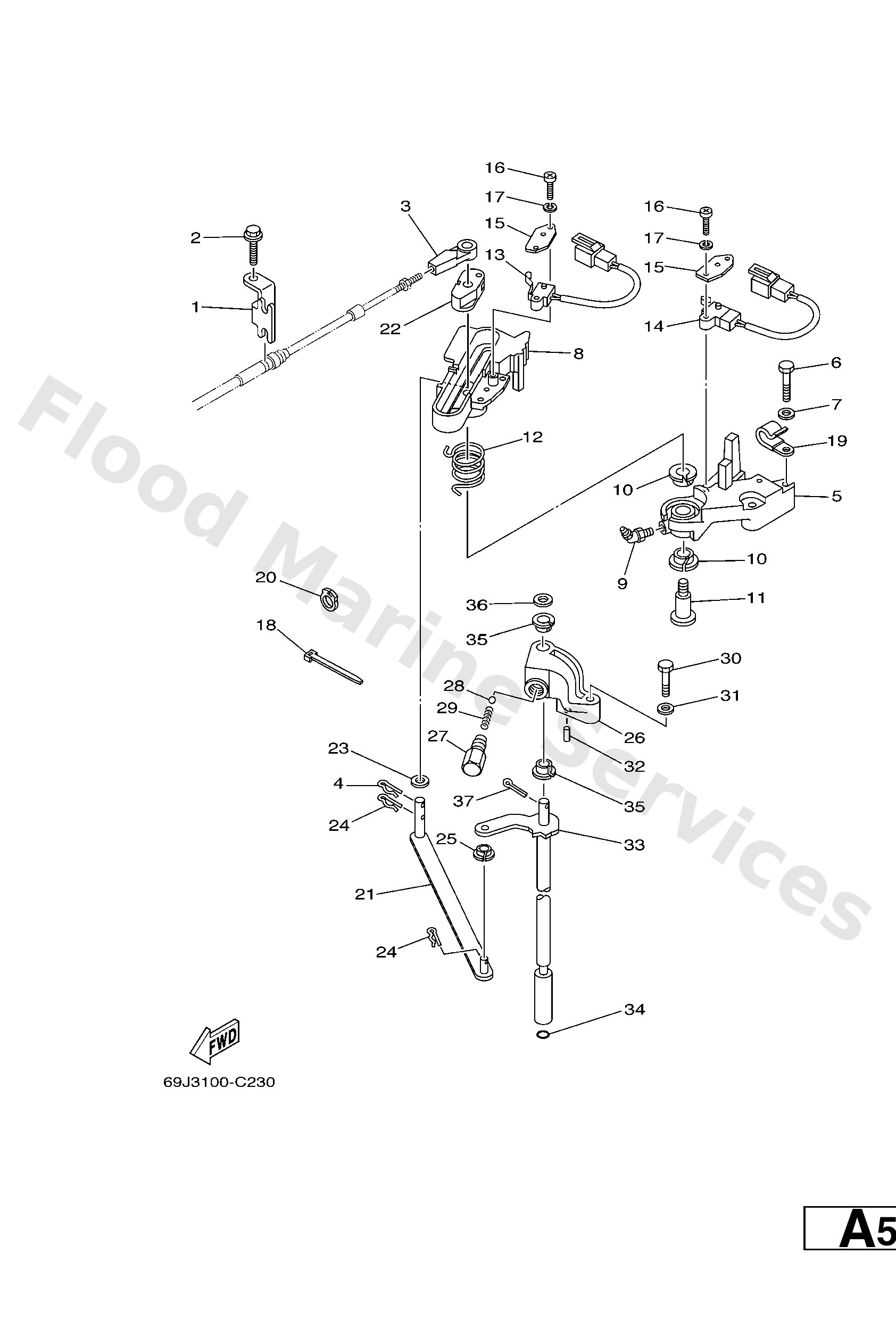

Parts List
Bracket, remote control 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Cable end, remote control
Diagram Reference: 3
Clip 620436610000
Diagram Reference: 4
Bracket
Diagram Reference: 5
Bolt(j52)
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 7
Bracket
Diagram Reference: 8
Nipple, grease(61a)
Diagram Reference: 9
Bush(666)
Diagram Reference: 10
Bolt
Diagram Reference: 11
Spring, torsion
Diagram Reference: 12
Switch assembly
Diagram Reference: 13
Switch assembly
Diagram Reference: 14
Plate
Diagram Reference: 15
Screw, panhead (796)
Diagram Reference: 16
Ybs67-4 washer, spring
Diagram Reference: 17
Clamp
Diagram Reference: 18
Clamp
Diagram Reference: 19
Clamp
Diagram Reference: 20
Lever, shift rod
Diagram Reference: 21
Bushing, shift rod lever
Diagram Reference: 22
Washer, plate (6e5)
Diagram Reference: 23
Bushing (688)
Diagram Reference: 25
Bracket
Diagram Reference: 26
Bushing 2
Diagram Reference: 27
Ball (697)
Diagram Reference: 28
Spring 6484411600
Diagram Reference: 29
Pin, spring (663)
Diagram Reference: 32
Handle gear shift assembly
Diagram Reference: 33
O-ring
Diagram Reference: 34
Bush(61a)
Diagram Reference: 35
Washer, plate(61a)
Diagram Reference: 36
Pin, cotter (648)
Diagram Reference: 37
