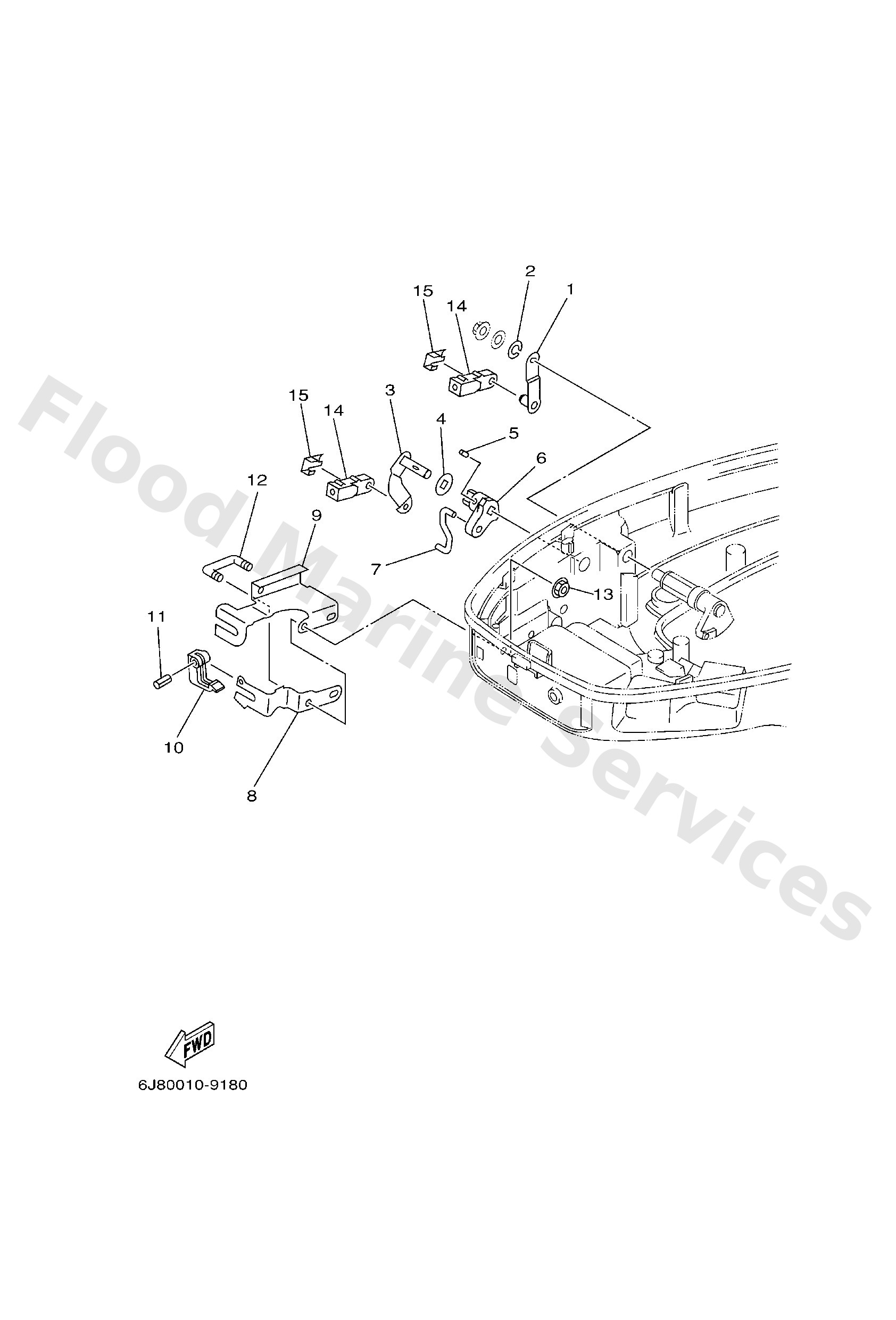

Diagram: CONTROL 2

Diagram

Parts List

6J84853400
Throttle lever, control
Diagram Reference: 1
Get Part
9299008100
Ybs67-8 washer, spring
Diagram Reference: 2
Get Part
6J84854401
Lever, shiftcontrol
Diagram Reference: 3
Get Part
6J84417700
Washer
Diagram Reference: 4
Get Part
9025403M03
Pin, spring
Diagram Reference: 5
Get Part
6J84417302
Lever, shift control
Diagram Reference: 6
Get Part
6J84216901
Joint
Diagram Reference: 7
Get Part
6J84853100
Bracket, remote control
Diagram Reference: 8
Get Part
6J84853200
Bracket, remote control 2
Diagram Reference: 9
Get Part
6824853850
Clamp, cable
Diagram Reference: 10
Get Part
9169030012
Pin, spring
Diagram Reference: 11
Get Part
9010906M29
Bolt(6j8)
Diagram Reference: 12
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 13
Get Part
6G82636300
End, wire 1
Diagram Reference: 14
Get Part
6G82636400
End, wire 2
Diagram Reference: 15
Get Part
