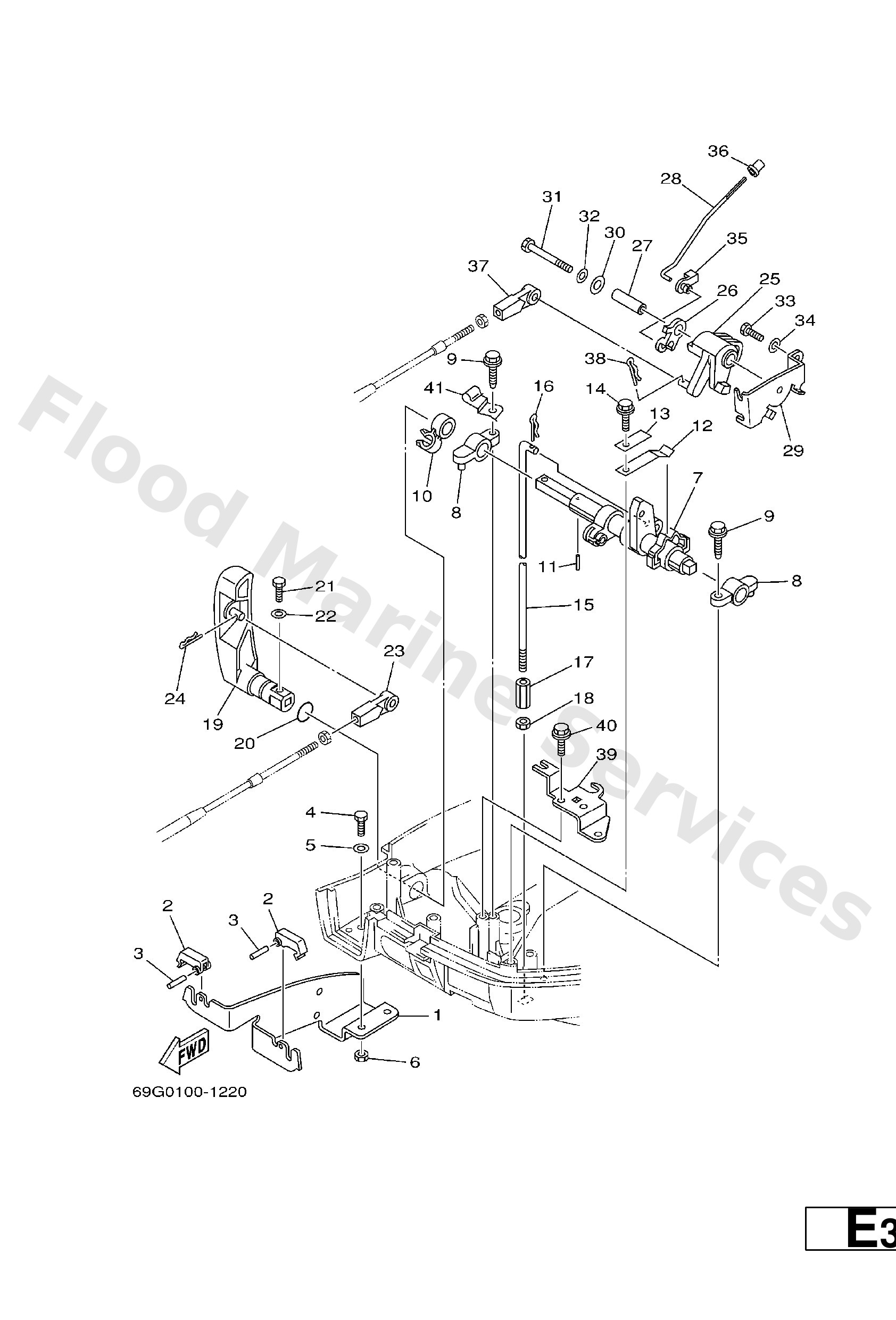

Diagram: CONTROL 2

Diagram

Parts List

68T−48531−00

Bracket, remote control 1

Diagram Reference: 1

682−48538−50

Clamp, cable

Diagram Reference: 2

91690−30012

Pin, spring

Diagram Reference: 3

97095−06012

Bolt(gh1)

Diagram Reference: 4

92995−06600

Washer, plain (646)

Diagram Reference: 5

95380−06600

Nut(661)

Diagram Reference: 6

68T−44121−01

Lever, shift rod

Diagram Reference: 7

6G1−41662−01−94

Bracket

Diagram Reference: 8

90109−06M81

Bolt

Diagram Reference: 9

90464−10M60

Clamp

Diagram Reference: 10

91690−30014

Pin, spring (647)

Diagram Reference: 11

65W−44116−00

Spring

Diagram Reference: 12

66R−44114−00

Stopper

Diagram Reference: 13

90109−06M86

Bolt

Diagram Reference: 14

68T−44143−10

Rod, shift 1

Diagram Reference: 15

90468−18001

Clip

Diagram Reference: 16

90170−06015

Connector, shift rod

Diagram Reference: 17

95380−06700

Nut

Diagram Reference: 18

68T−44111−10

Handle, gear shift

Diagram Reference: 19

93210−12327

O-ring(3ld)

Diagram Reference: 20

97095−05016

Bolt(6a1)

Diagram Reference: 21

92995−05600

Washer, plain (646)

Diagram Reference: 22

663−48344−00

Cable end, remote control

Diagram Reference: 23

90468−18008

Clip 620436610000

Diagram Reference: 24

68T−41638−00

Pulley

Diagram Reference: 25

68T−41283−00

Lever, free accel.

Diagram Reference: 26

90387−06M59

Collar (6h3)

Diagram Reference: 27

68T−41211−00

Link, accel.

Diagram Reference: 28

68T−14497−00

Stay, throttle wire

Diagram Reference: 29

90201−06M62

Washer, plate (6e5)

Diagram Reference: 30

97095−06045

Bolt, hexagon

Diagram Reference: 31

661−41262−02

Joint, choke lever

Diagram Reference: 35

647−14395−60

Cap,over flow pipe

Diagram Reference: 36

68T−15774−10

Stay 4

Diagram Reference: 39

90465−08027

Clamp

Diagram Reference: 41
