Yamaha Outboard Parts - CONTROL VALVE (MGNV123-6) - ME750TIM (2005) | Flood Marine

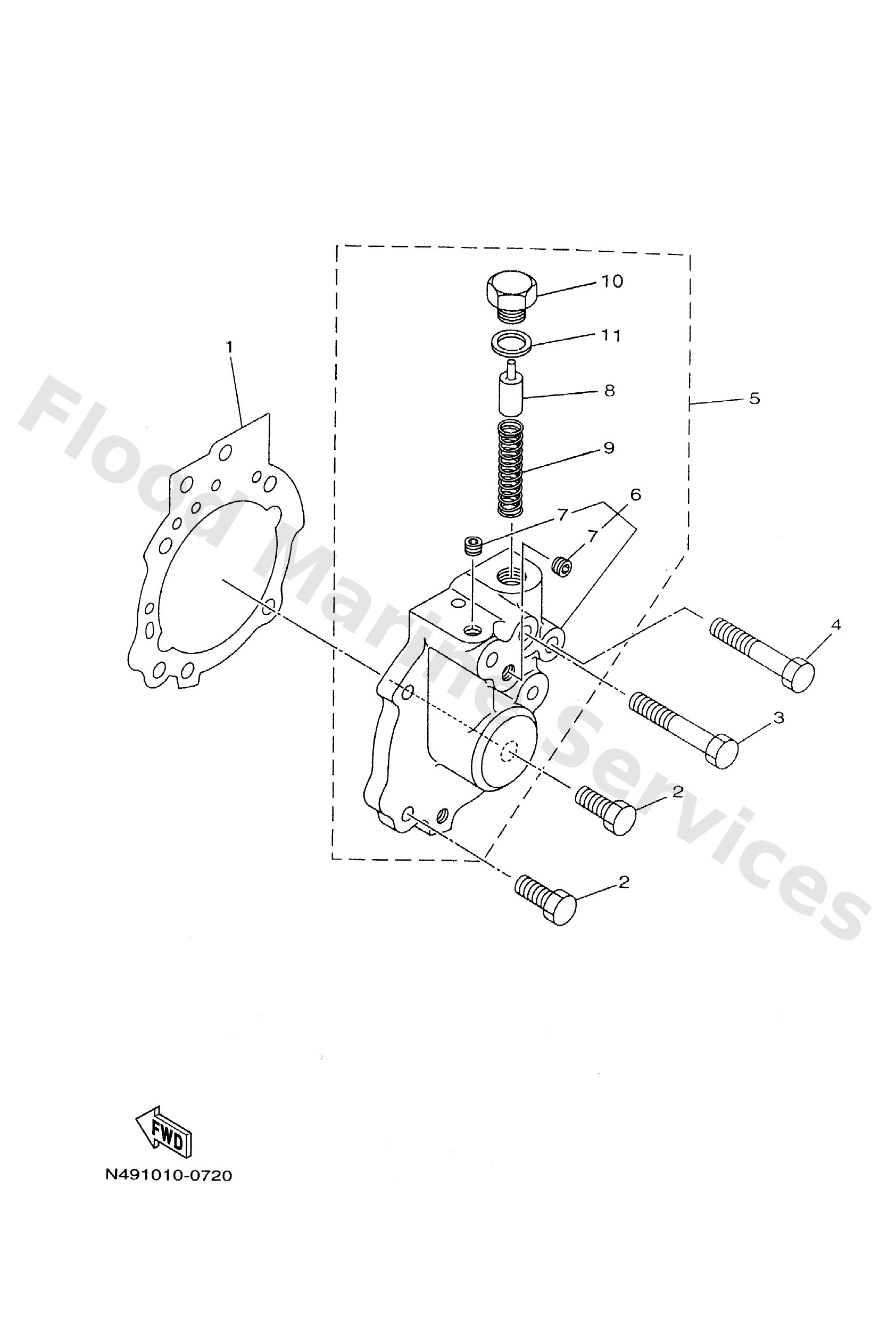

Diagram: CONTROL VALVE (MGNV123-6)

Diagram

Parts List

Reference
Description
Price


1
N4817472B0
Gasket
Loading…

↗
2
9010110330
Bolt, hexagon (705)
Loading…

↗
3
9010110432
Bolt
Loading…

↗
4
N1517647N0
Bolt
Loading…

↗
5
N4813510B0
Valve assembly.
Loading…

↗
6
N487610JB0
59-
Loading…

↗
7
N4817079B0
Plug 2
Loading…

↗
8
N4818215B0
Piston 1
Loading…

↗
9
N4918183B0
Spring
Loading…

↗
10
N0217054N0
Plug 3
Loading…

↗
11
N0216144N0
Washer
Loading…

↗
