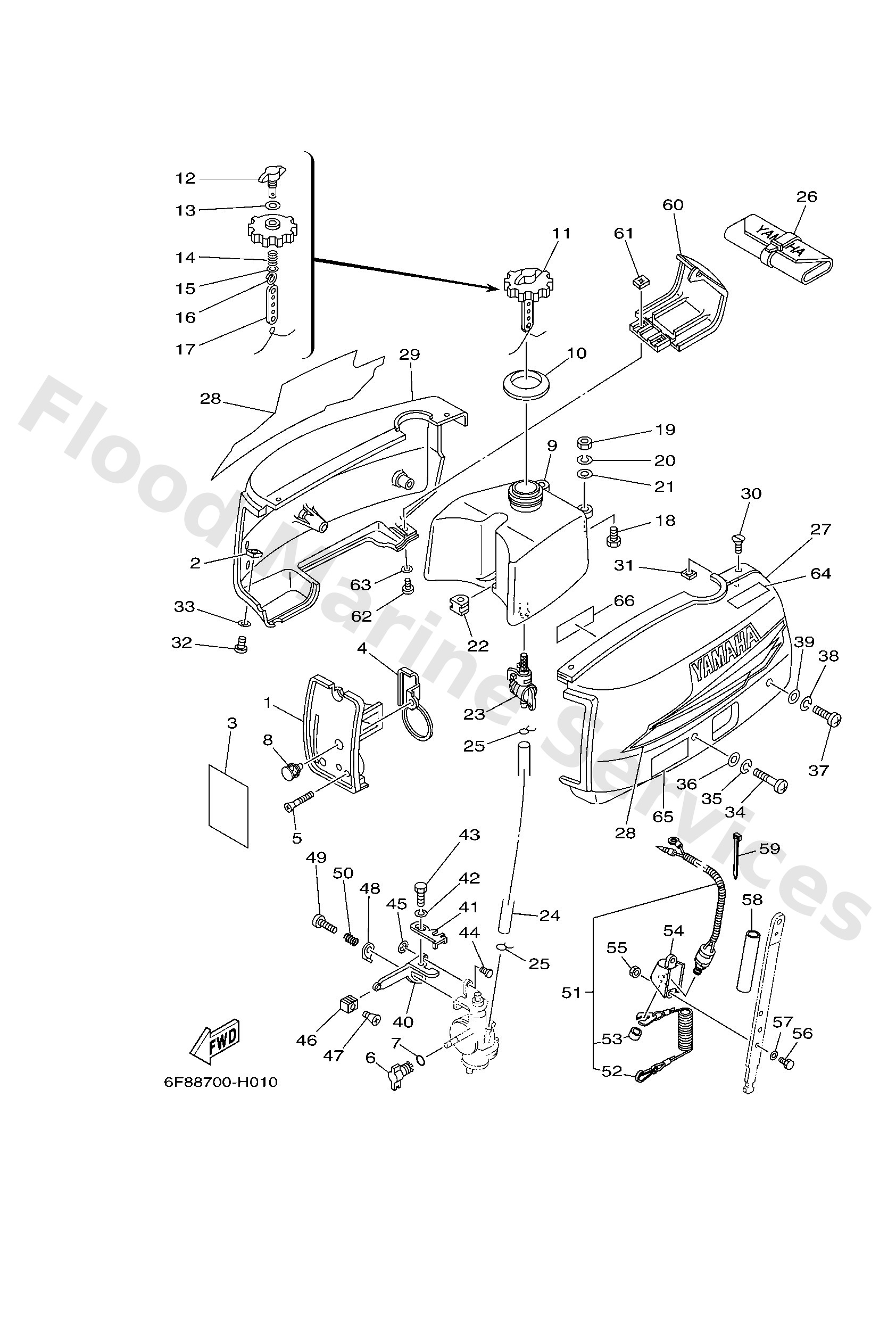

Diagram: COWLING & FUEL

Diagram

Parts List

6A11444102
Silencer, intake 2
Diagram Reference: 1
Get Part
9017305M00
Nut, square (6a1)
Diagram Reference: 2
Get Part
6A14267720
Graphic, front
Diagram Reference: 3
Get Part
6A11444200
Spacer 1
Diagram Reference: 4
Get Part
9015104M04
Screw, countersunk
Diagram Reference: 5
Get Part
6A14127100
Knob, choke
Diagram Reference: 6
Get Part
9321008M29
O-ring (6a1)
Diagram Reference: 7
Get Part
9033808010
Plug
Diagram Reference: 8
Get Part
6A12411001
Fuel tank assembly
Diagram Reference: 9
Get Part
6A12419800
Seat, rubber
Diagram Reference: 10
Get Part
6A12461002
Cap assembly
Diagram Reference: 11
Get Part
6A12463100
Screw, air
Diagram Reference: 12
Get Part
9043004005
Gasket 6112463200
Diagram Reference: 13
Get Part
90501100A5
Spring, compression
Diagram Reference: 14
Get Part
9299004200
Ybs66-4 washer, plain
Diagram Reference: 15
Get Part
90468100A0
Clip
Diagram Reference: 16
Get Part
6462424100
Indicator
Diagram Reference: 17
Get Part
9709506018
Bolt (fj0)
Diagram Reference: 18
Get Part
9538006600
Nut(661)
Diagram Reference: 19
Get Part
9299506100
Washer(6a1)
Diagram Reference: 20
Get Part
9020106M30
Washer, plate (6a1)
Diagram Reference: 21
Get Part
6A12418100
Damper, locating
Diagram Reference: 22
Get Part
6A12450002
Fuel cock assembly 1
Diagram Reference: 23
Get Part
6A12431100
Pipe 1
Diagram Reference: 24
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 25
Get Part
656W281002
Tool kit
Diagram Reference: 26
Get Part
6F84274100
Apron
Diagram Reference: 27
Get Part
6A1W007014
Graphic set
Diagram Reference: 28
Get Part
6A14277112
Apron
Diagram Reference: 29
Get Part
9878005012
Screw(617)
Diagram Reference: 30
Get Part
9018305M00
Nut, spring (6a1)
Diagram Reference: 31
Get Part
9788005012
Screw,pan head (646)
Diagram Reference: 32
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 33
Get Part
9788006040
Screw pan head
Diagram Reference: 34
Get Part
9299006100
Washer(6a1)
Diagram Reference: 35
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 36
Get Part
9788006025
Screw, pan head(6b0)
Diagram Reference: 37
Get Part
6A14121201
Arm, accel.
Diagram Reference: 40
Get Part
6A14121100
Link,accel
Diagram Reference: 41
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 42
Get Part
9709505010
Bolt (682)
Diagram Reference: 43
Get Part
6A11436500
Pin, clevis
Diagram Reference: 44
Get Part
9900104600
Circlip (eu0)
Diagram Reference: 45
Get Part
6A14163700
Knob, magneto control
Diagram Reference: 46
Get Part
9878003010
Screw, flat head (e56)
Diagram Reference: 47
Get Part
6A14122300
Washer, lock 1
Diagram Reference: 48
Get Part
9788505025
Screw, pan head(62j)
Diagram Reference: 49
Get Part
9050112M16
Spring (6a1)
Diagram Reference: 50
Get Part
6F88257500
Engine stop switch assembly
Diagram Reference: 51
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 52
Get Part
6898257Y00
Cap
Diagram Reference: 53
Get Part
6F84217600
Stay 2
Diagram Reference: 54
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 56
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 57
Get Part
6F88355700
Tube
Diagram Reference: 58
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 59
Get Part
6A18237512
Cover, plug cap
Diagram Reference: 60
Get Part
6S74269840
Label, warning (fu
Diagram Reference: 64
Get Part
6S74279440
Label, warning (ge
Diagram Reference: 65
Get Part
6AH8199440
Label, safety
Diagram Reference: 66
Get Part
