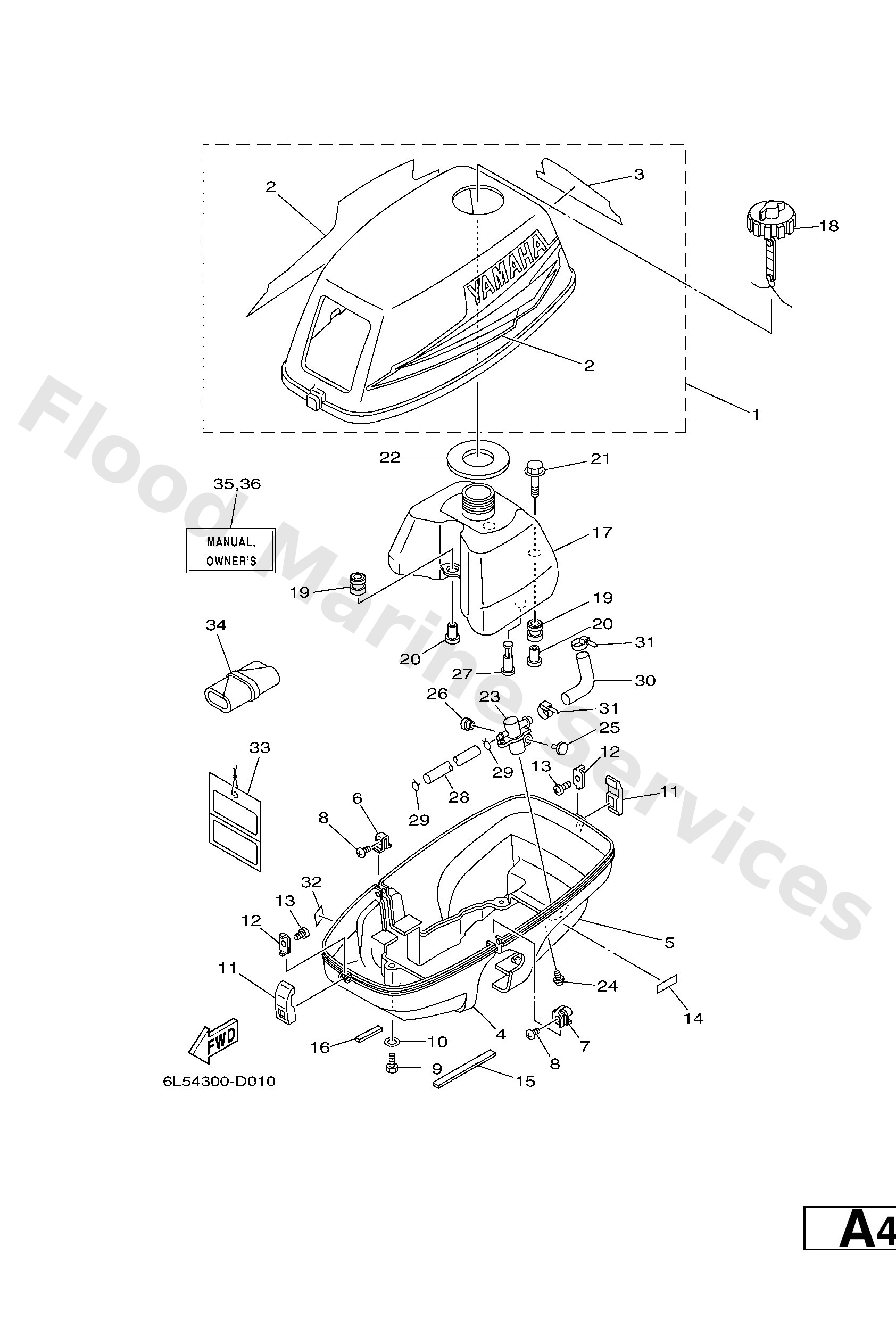

Diagram: COWLING & FUEL

Diagram

Parts List

6L542610134D
Top Cowling assembly
Diagram Reference: 1
Get Part
6L5W007013
Graphic Set
Diagram Reference: 2
Get Part
6L54267812
Graphic, rear
Diagram Reference: 3
Get Part
6L54271111
Cowling, bottom
Diagram Reference: 4
Get Part
6L54271212
Cowling, bottom
Diagram Reference: 5
Get Part
6L54277400
Stay, apron 1
Diagram Reference: 6
Get Part
6L54277500
Stay, apron 2
Diagram Reference: 7
Get Part
9788005010
Screw, pan head(62x)
Diagram Reference: 8
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
6L54264700
Holder, clamp band
Diagram Reference: 11
Get Part
6L54282300
Plate, stop
Diagram Reference: 12
Get Part
9016703M02
Screw, tapping(6l5)
Diagram Reference: 13
Get Part
6L52459100
Emblem, Fuel Cock
Diagram Reference: 14
Get Part
6L54266200
Damper
Diagram Reference: 15
Get Part
6L54266300
Damper
Diagram Reference: 16
Get Part
6L52411102
Tank, fuel
Diagram Reference: 17
Get Part
6L52461000
Cap assembly
Diagram Reference: 18
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 19
Get Part
9038706119
Collar
Diagram Reference: 20
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 21
Get Part
6L52464100
Gasket, cap 1
Diagram Reference: 22
Get Part
6L52450060
Fuel cock assembly 1
Diagram Reference: 23
Get Part
9015906M10
Screw, with washer(6l5)
Diagram Reference: 24
Get Part
6L54419600
Indicator 3
Diagram Reference: 25
Get Part
6L54419700
Indicator 4
Diagram Reference: 26
Get Part
6L52425100
Strainer 1
Diagram Reference: 27
Get Part
6L52431100
Pipe, fuel 2
Diagram Reference: 28
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 29
Get Part
6L52431200
Pipe 2
Diagram Reference: 30
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 31
Get Part
6A12817600
-
Diagram Reference: 32
Get Part
61H2819R31
-
Diagram Reference: 33
Get Part
656W281002
Tool kit
Diagram Reference: 34
Get Part
6L52819972F0 (UR (F))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819972H0 (UR (I))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819972D0 (UR (NL))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819972G0 (UR (D))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819972S0 (UR (ES))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819972E0 (UR (E))
O/m 3a '07
Diagram Reference: 35
Get Part
6L52819982K0 (UR (DK))
O/m 3a '07
Diagram Reference: 36
Get Part
6L52819982R0 (UR (GR))
O/m 3a '07
Diagram Reference: 36
Get Part
6L52819982P0 (UR (P))
O/m 3a '07
Diagram Reference: 36
Get Part
6L52819982N0 (UR (N))
O/m 3a '07
Diagram Reference: 36
Get Part
6L52819982M0 (UR (S))
O/m 3a '07
Diagram Reference: 36
Get Part
6L52819982L0 (UR (SF))
O/m 3a '07
Diagram Reference: 36
Get Part
