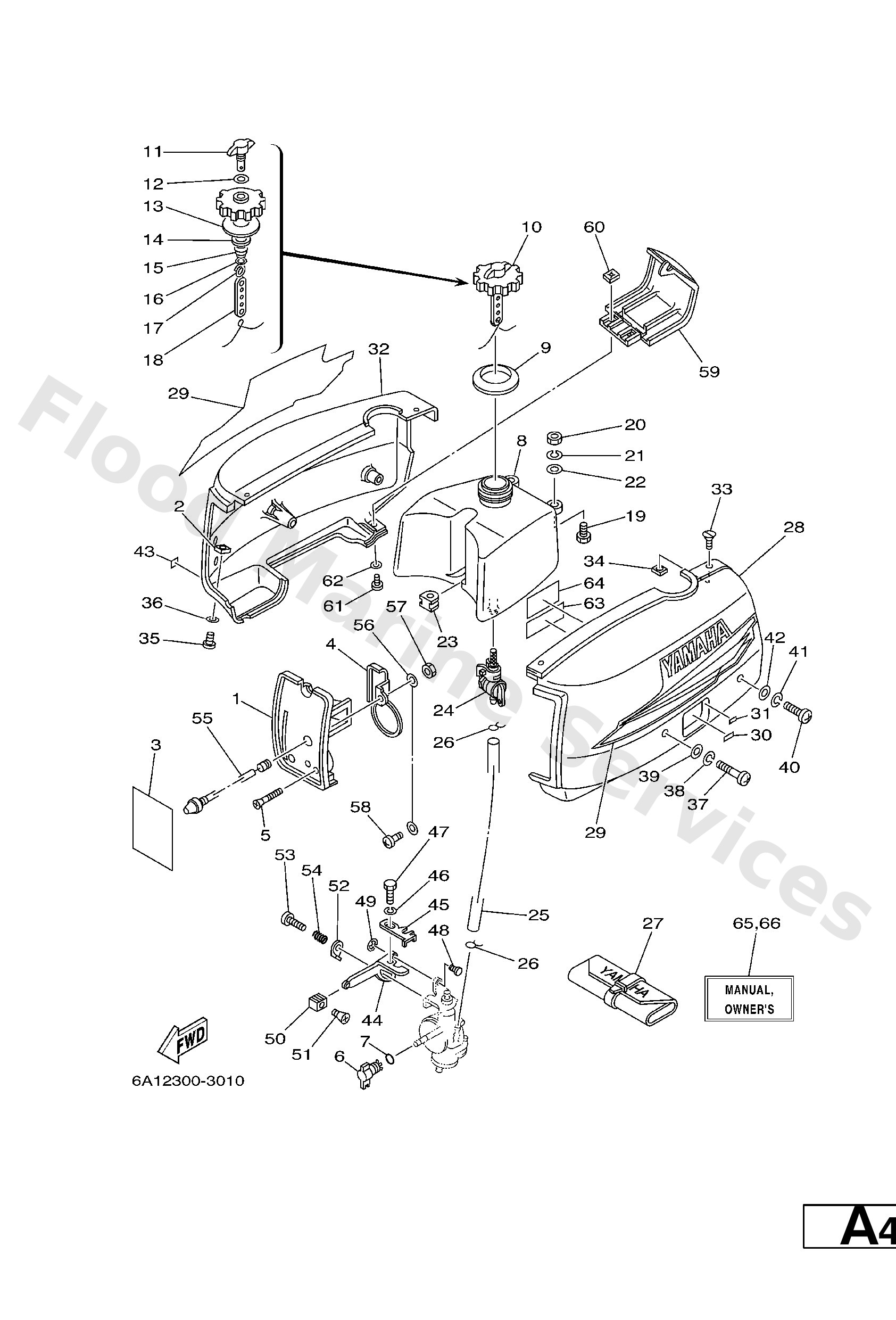

Diagram: COWLING . FUEL

Diagram

Parts List

6A1−14441−02
Silencer, intake 2
Diagram Reference: 1
Get Part
90173−05M00
Nut, square (6a1)
Diagram Reference: 2
Get Part
6A1−42677−10
Graphic, Front
Diagram Reference: 3
Get Part
6A1−14442−00
Spacer 1
Diagram Reference: 4
Get Part
90151−04M04
Screw, countersunk
Diagram Reference: 5
Get Part
6A1−41271−00
Knob, choke
Diagram Reference: 6
Get Part
93210−08M29
O-ring (6a1)
Diagram Reference: 7
Get Part
6A1−24110−01
Fuel tank assembly
Diagram Reference: 8
Get Part
6A1−24198−00
Seat, rubber
Diagram Reference: 9
Get Part
6A1−24610−01
Cap assembly
Diagram Reference: 10
Get Part
6A1−24631−00
Screw, air
Diagram Reference: 11
Get Part
90430−04005
Gasket 6112463200
Diagram Reference: 12
Get Part
90430−14117
Gasket
Diagram Reference: 13
Get Part
646−24615−01
Gasket, Plate 1
Diagram Reference: 14
Get Part
90501−10374
Spring, Compression
Diagram Reference: 15
Get Part
92907−04200
Washer(6e1)
Diagram Reference: 16
Get Part
90501−10260
Spring, safety 6152463500
Diagram Reference: 17
Get Part
646−24241−00
Indicator
Diagram Reference: 18
Get Part
97095−06018
Bolt (fj0)
Diagram Reference: 19
Get Part
95380−06600
Nut(661)
Diagram Reference: 20
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 21
Get Part
90201−06M30
Washer, plate (6a1)
Diagram Reference: 22
Get Part
6A1−24181−00
Damper, locating
Diagram Reference: 23
Get Part
6A1−24500−02
Fuel cock assembly 1
Diagram Reference: 24
Get Part
6A1−24311−00
Pipe 1
Diagram Reference: 25
Get Part
90467−08004
Clip, pipe 6162435600
Diagram Reference: 26
Get Part
656−W2810−02
Tool kit
Diagram Reference: 27
Get Part
6A1−42741−11
Apron
Diagram Reference: 28
Get Part
6A1−W0070−14
Graphic set
Diagram Reference: 29
Get Part
6A1−24153−50
Indicator, Cock
Diagram Reference: 30
Get Part
6A1−24154−50
Indicator, Shift
Diagram Reference: 31
Get Part
6A1−42771−11
Apron
Diagram Reference: 32
Get Part
98780−05012
Screw(617)
Diagram Reference: 33
Get Part
90183−05M00
Nut, spring (6a1)
Diagram Reference: 34
Get Part
97880−05010
Screw, pan head(62x)
Diagram Reference: 35
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 36
Get Part
97880−06040
Screw pan head
Diagram Reference: 37
Get Part
92990−06100
Washer(6a1)
Diagram Reference: 38
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 39
Get Part
97880−06025
Screw, pan head(6b0)
Diagram Reference: 40
Get Part
6A1−28176−00
Label, Caution
Diagram Reference: 43
Get Part
6A1−41212−01
Arm, accel.
Diagram Reference: 44
Get Part
6A1−41211−00
Link,accel
Diagram Reference: 45
Get Part
92990−05100
Ybs67-5 washer, spring
Diagram Reference: 46
Get Part
97095−05010
Bolt (682)
Diagram Reference: 47
Get Part
6A1−14365−00
Pin, clevis
Diagram Reference: 48
Get Part
99001−04600
Circlip (eu0)
Diagram Reference: 49
Get Part
6A1−41637−00
Knob, magneto control
Diagram Reference: 50
Get Part
98780−03010
Screw, flat head (e56)
Diagram Reference: 51
Get Part
6A1−41223−00
Washer, lock 1
Diagram Reference: 52
Get Part
97885−05025
Screw, pan head(62j)
Diagram Reference: 53
Get Part
90501−12M16
Spring (6a1)
Diagram Reference: 54
Get Part
6A1−82550−02
Stop switch assembly
Diagram Reference: 55
Get Part
6A1−82541−00
Wire, Lead
Diagram Reference: 56
Get Part
95380−08700
Nut(661)
Diagram Reference: 57
Get Part
97880−05008
Screw, with washer
Diagram Reference: 58
Get Part
6A1−82375−11
Cover, plug cap
Diagram Reference: 59
Get Part
97880−05012
Screw,pan head (646)
Diagram Reference: 61
Get Part
6A1−83625−41
Mark 5
Diagram Reference: 63
Get Part
6A1−83625−51
16 −
Diagram Reference: 64
Get Part
