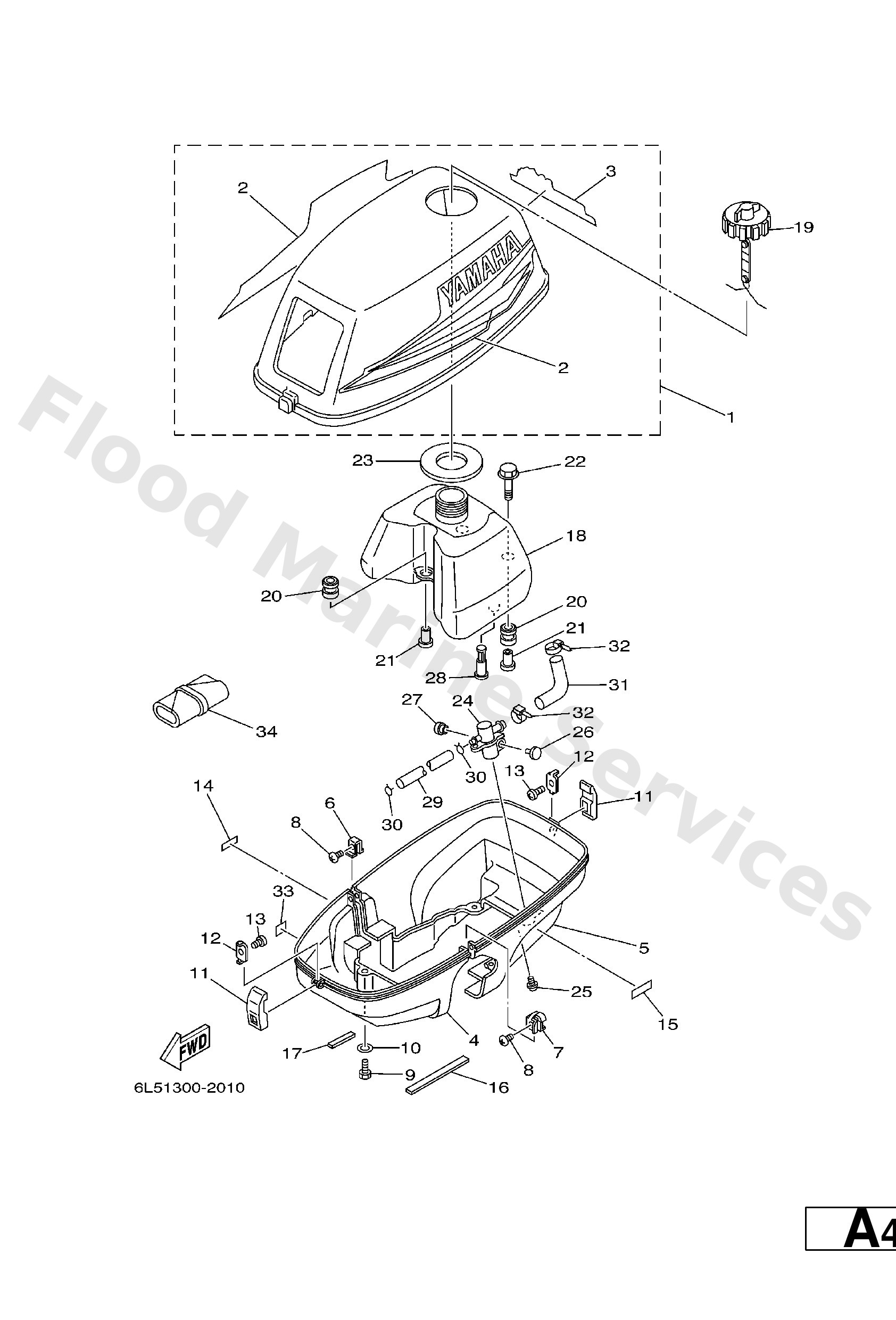

Diagram: COWLING . FUEL

Diagram

Parts List

6L5−42610−54−4D

Top Cowling assembly

Diagram Reference: 1

6L5−W0070−13

1−

Diagram Reference: 2

6L5−42678−51

Graphic, Rear

Diagram Reference: 3

6L5−42711−11

Cowling, bottom

Diagram Reference: 4

6L5−42712−12

Cowling, bottom

Diagram Reference: 5

6L5−42774−00

Stay, apron 1

Diagram Reference: 6

6L5−42775−00

Stay, apron 2

Diagram Reference: 7

97880−05010

Screw, pan head(62x)

Diagram Reference: 8

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 9

92995−06600

Washer, plain (646)

Diagram Reference: 10

6L5−42647−00

Holder, clamp band

Diagram Reference: 11

6L5−42823−00

Plate, stop

Diagram Reference: 12

90167−03M02

Screw, tapping(6l5)

Diagram Reference: 13

6L5−44191−00

Indicator, Shift

Diagram Reference: 14

6L5−24591−00

Emblem, Fuel Cock

Diagram Reference: 15

6L5−42662−00

Damper

Diagram Reference: 16

6L5−42663−00

Damper

Diagram Reference: 17

6L5−24111−02

Tank, fuel

Diagram Reference: 18

6L5−24610−20

Cap assembly

Diagram Reference: 19

6A0−82317−00

Damper, ignition coil

Diagram Reference: 20

624−42542−00

Collar

Diagram Reference: 21

90119−06M65

Bolt, with washer

Diagram Reference: 22

6L5−24641−00

Gasket, cap 1

Diagram Reference: 23

6L5−24500−60

Fuel cock assembly 1

Diagram Reference: 24

90159−06M10

Screw, with washer(6l5)

Diagram Reference: 25

6L5−44196−20

Indicator 3

Diagram Reference: 26

6L5−44197−20

Indicator 4

Diagram Reference: 27

6L5−24251−00

Strainer 1

Diagram Reference: 28

6L5−24311−00

Pipe, fuel 2

Diagram Reference: 29

90467−08004

Clip, pipe 6162435600

Diagram Reference: 30

6L5−24312−00

Pipe 2

Diagram Reference: 31

90465−13M11

Clamp (6e5)

Diagram Reference: 32

6A1−28176−00

Label, Caution

Diagram Reference: 33

656−W2810−02

Tool kit

Diagram Reference: 34
