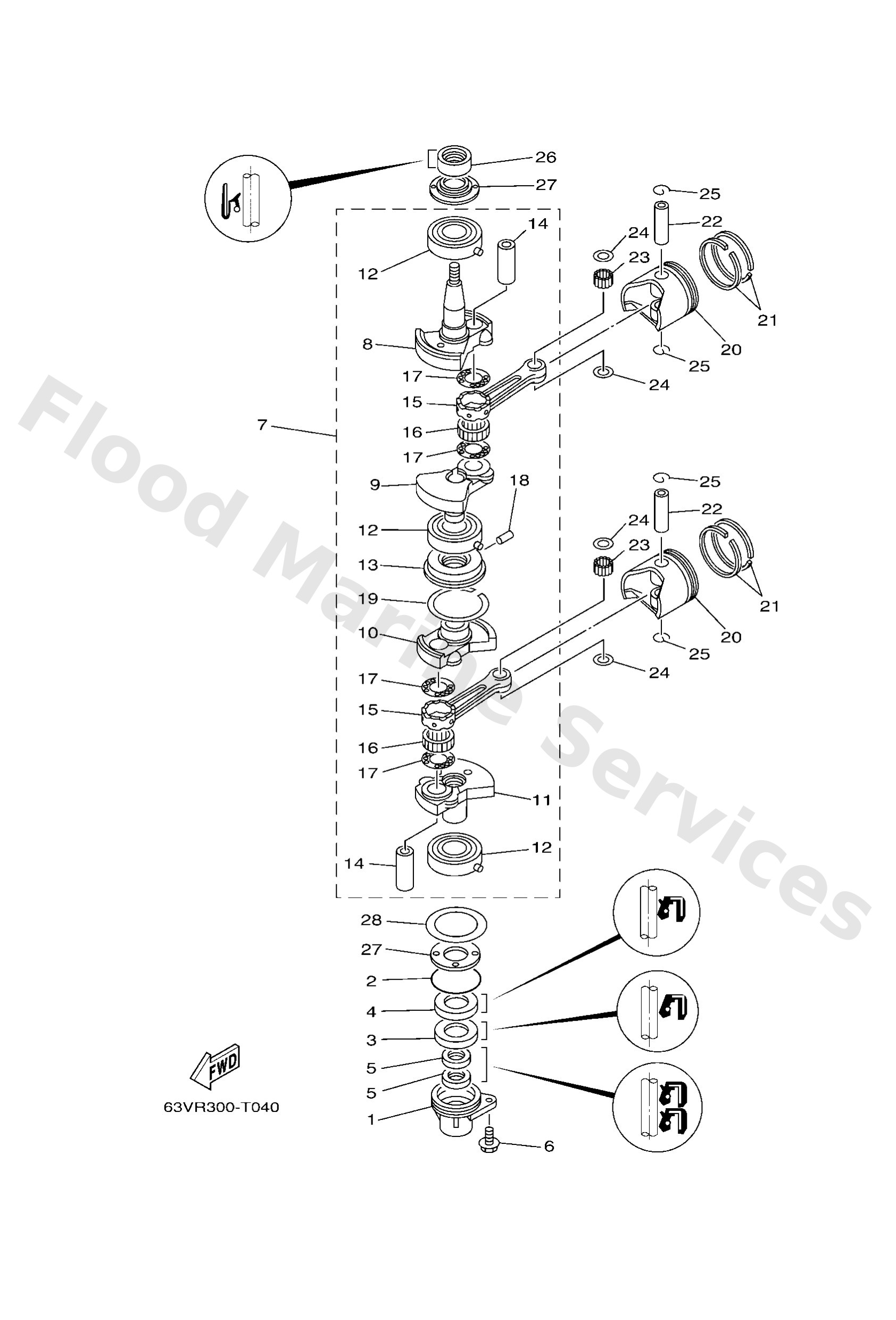

Parts List
Housing, oil seal
Diagram Reference: 1
O-ring (688)
Diagram Reference: 2
Oil seal
Diagram Reference: 3
Oil seal(63v)
Diagram Reference: 4
Oil seal
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Crankshaft assembly
Diagram Reference: 7
Crank 1
Diagram Reference: 8
Crank 2
Diagram Reference: 9
Crank 3
Diagram Reference: 10
Crank 4
Diagram Reference: 11
Bearing(63v)
Diagram Reference: 12
Seal, labyrinth 1
Diagram Reference: 13
Pin crank
Diagram Reference: 14
Rod, connecting
Diagram Reference: 15
Bearing, big end (682)
Diagram Reference: 16
Washer, crank pin (1h9)
Diagram Reference: 17
Pin, spring
Diagram Reference: 18
Circlip (168)
Diagram Reference: 19
Piston (std)
Diagram Reference: 20
Piston (1st o.s)
Diagram Reference: 20
Piston (2nd o.s)
Diagram Reference: 20
Piston ring set (std)
Diagram Reference: 21
Piston ring set (1st o/s)
Diagram Reference: 21
Piston ring set (2nd o/s)
Diagram Reference: 21
Pin, piston
Diagram Reference: 22
Pin, dowel
Diagram Reference: 23
Washer, plate
Diagram Reference: 24
Circlip 131116340000
Diagram Reference: 25
Oil seal (682)
Diagram Reference: 26
Spacer
Diagram Reference: 27
Washer, plate(63v)
Diagram Reference: 28
