Parts List

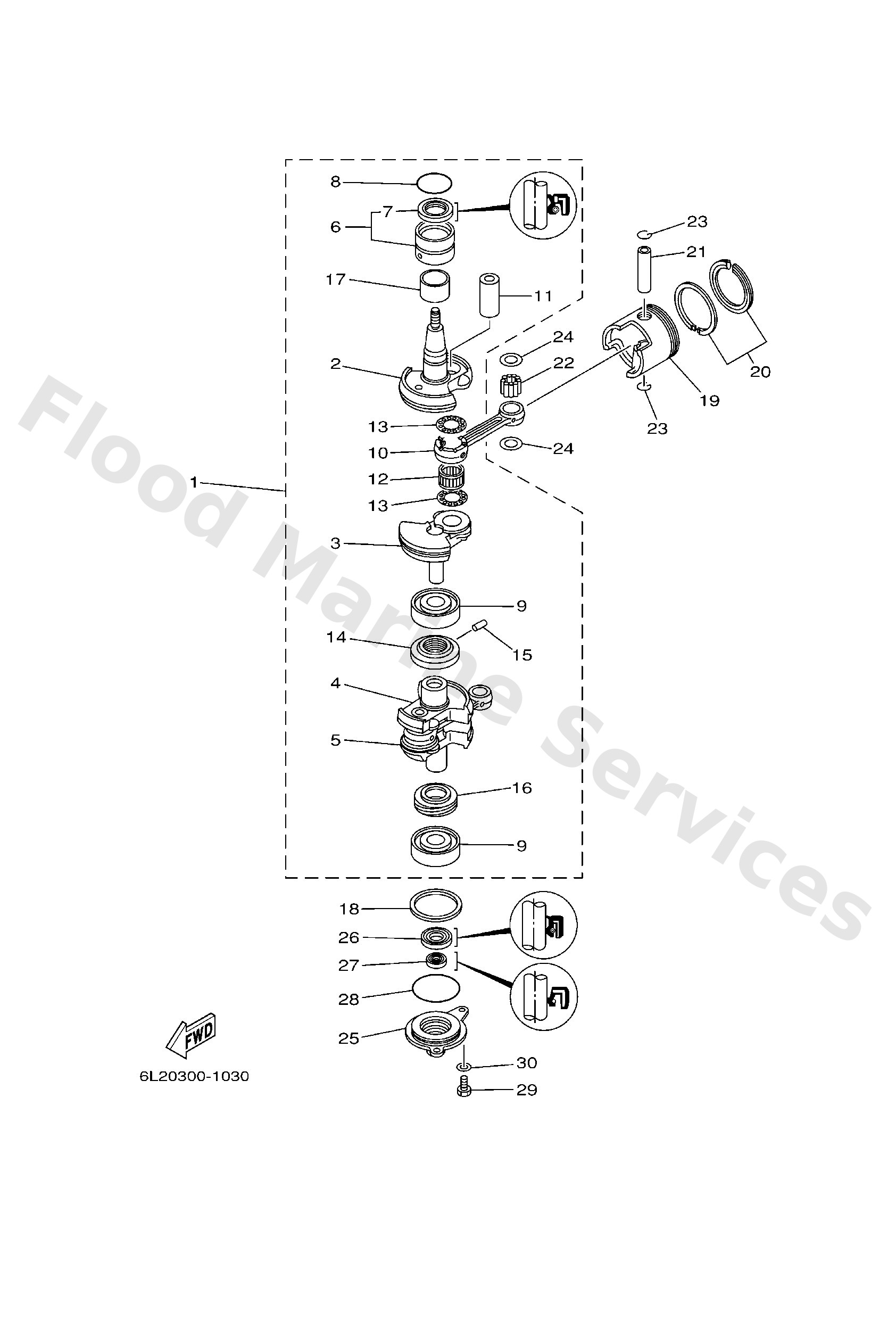

Crankshaft assembly
Diagram Reference: 1
Crank 1
Diagram Reference: 2
Crank 2
Diagram Reference: 3
Crank 3
Diagram Reference: 4
Crank 4
Diagram Reference: 5
Bearing, cylindrical(6j8)
Diagram Reference: 6
Oil seal(6j8)
Diagram Reference: 7
O-ring (647)
Diagram Reference: 8
Bearing(6j8)
Diagram Reference: 9
Rod, connecting
Diagram Reference: 10
Pin, crank 1
Diagram Reference: 11
Bearing, cylindrical(6l2)
Diagram Reference: 12
Washer(6l2)
Diagram Reference: 13
Seal, labyrinth 1
Diagram Reference: 14
Pin, spring (663)
Diagram Reference: 15
Gear, drive
Diagram Reference: 16
Collar (6j8)
Diagram Reference: 17
Washer plate 648115870000
Diagram Reference: 18
Piston (std)
Diagram Reference: 19
Piston (0.25mm o/s)
Diagram Reference: 19
Piston (0.50mm o/s)
Diagram Reference: 19
Piston ring set (std)
Diagram Reference: 20
Piston ring set (1st o/s)
Diagram Reference: 20
Piston ring set (2nd o/s)
Diagram Reference: 20
Pin,piston
Diagram Reference: 21
Pin, dowel(6l2)
Diagram Reference: 22
Clip 6041163400
Diagram Reference: 23
Washer (656)
Diagram Reference: 24
Housing, oil seal
Diagram Reference: 25
Oil seal (24.8x38x7-662)
Diagram Reference: 26
Oil seal(6a4)
Diagram Reference: 27
O-ring(6j8)
Diagram Reference: 28
Bolt, hexagon deep recess
Diagram Reference: 29
Washer, plain (646)
Diagram Reference: 30
