Parts List

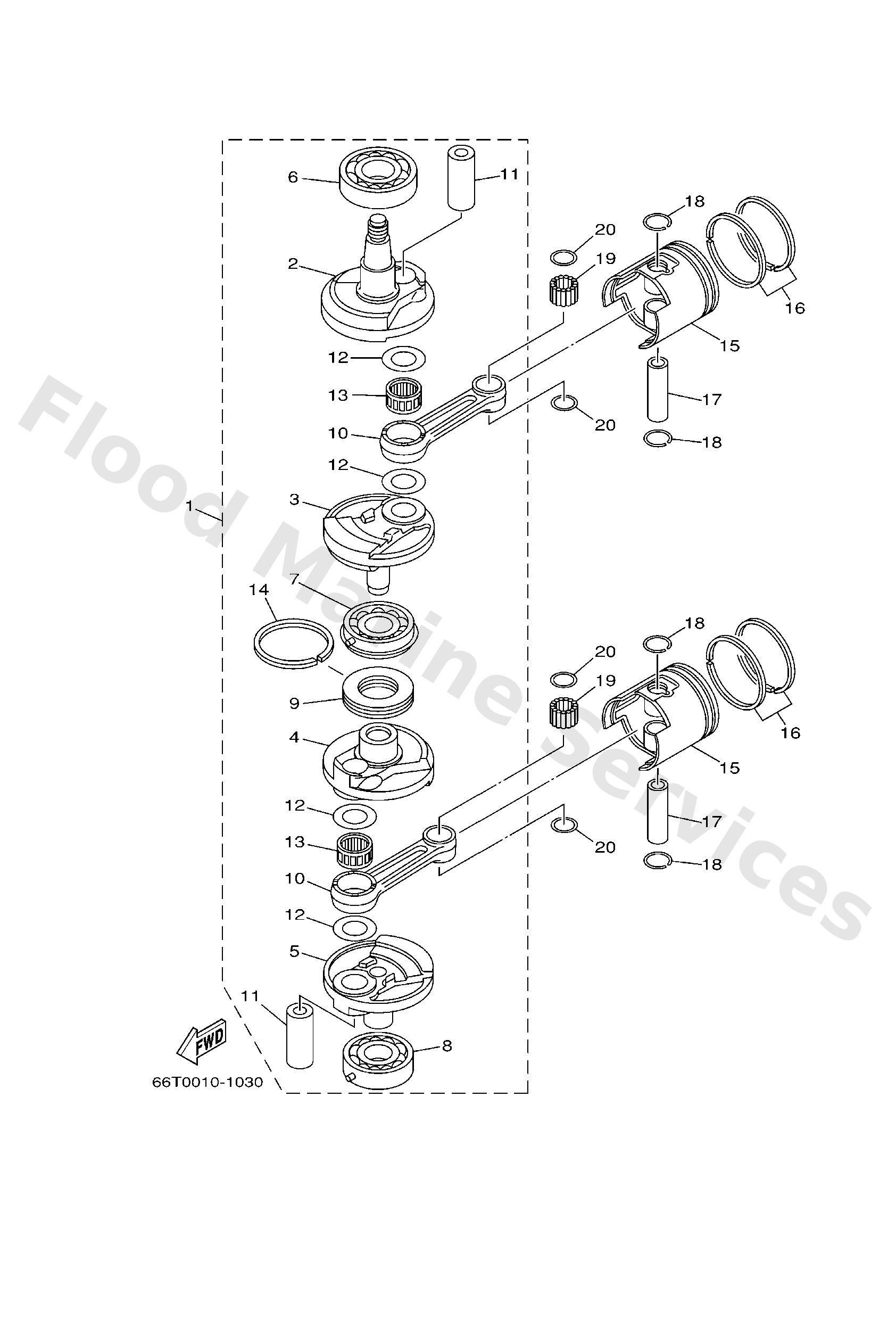

Crankshaft assembly
Diagram Reference: 1
Crank 1
Diagram Reference: 2
Crank 2
Diagram Reference: 3
Crank 3
Diagram Reference: 4
Crank 4
Diagram Reference: 5
Brg,r-b 6307 80mm 449g (6f5)
Diagram Reference: 6
Bearing
Diagram Reference: 7
Bearing
Diagram Reference: 8
Seal, labyrinth 1
Diagram Reference: 9
Rod, connecting
Diagram Reference: 10
Pin, crank 1
Diagram Reference: 11
Washer
Diagram Reference: 12
Bearing
Diagram Reference: 13
Circlip (6f5)
Diagram Reference: 14
Piston (0.50mm o/s)
Diagram Reference: 15
Piston (0.25mm o/s)
Diagram Reference: 15
Piston (std)
Diagram Reference: 15
Piston ring set (0.50mm o/s)
Diagram Reference: 16
Piston ring set (0.25mm o/s)
Diagram Reference: 16
Piston ring set (std)
Diagram Reference: 16
Pin, piston
Diagram Reference: 17
Clip, piston pin
Diagram Reference: 18
Pin, dowel(663)
Diagram Reference: 19
Washer, plate(663)
Diagram Reference: 20
