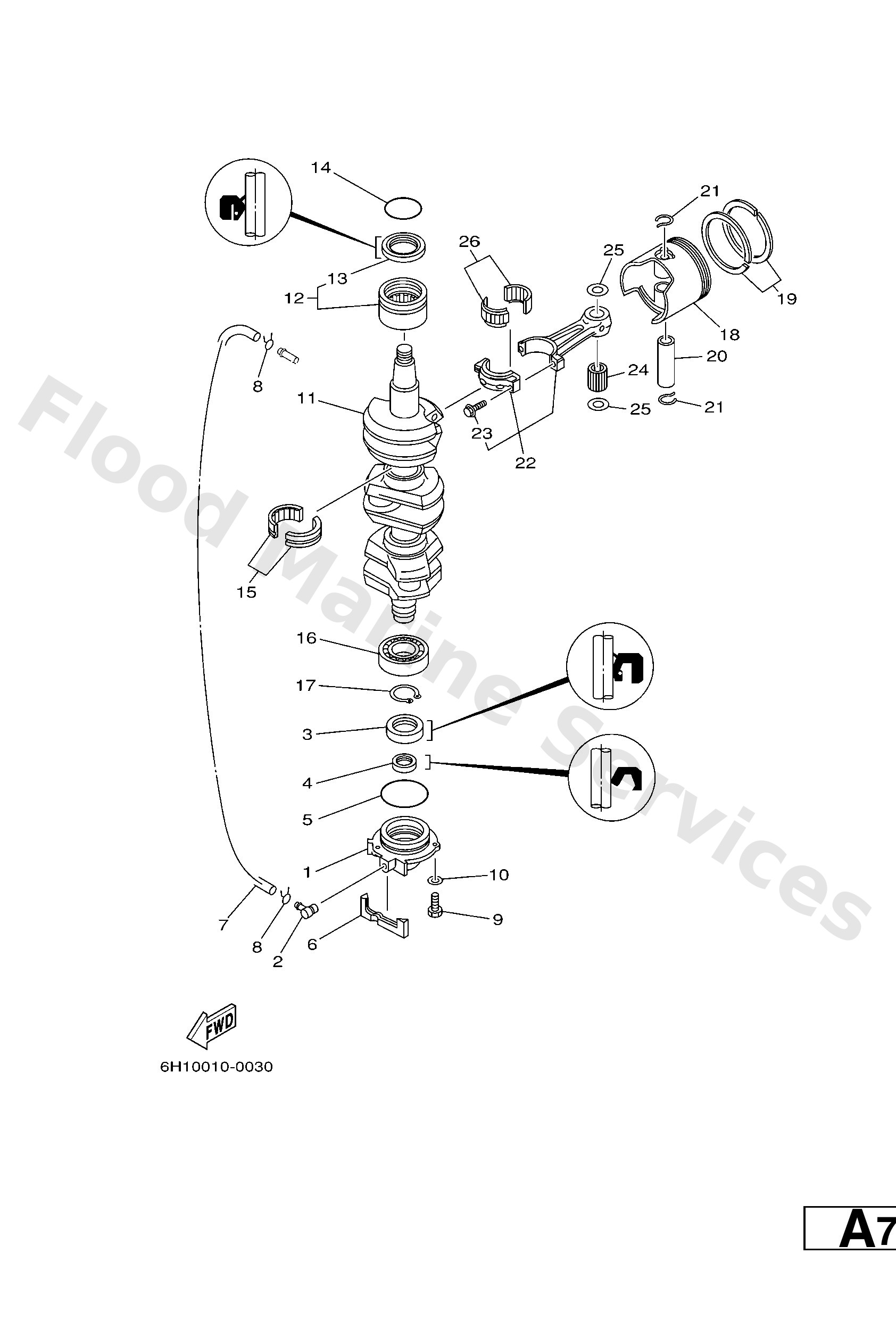

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

6H1153590194
Housing, oil seal
Diagram Reference: 1
Get Part
6881137001
Check valve assembly
Diagram Reference: 2
Get Part
9310230M05
Oil seal (688)
Diagram Reference: 3
Get Part
9310420M02
Oil seal (688)
Diagram Reference: 4
Get Part
9321062269
Ring, o(663)
Diagram Reference: 5
Get Part
6881537900
Seal, crank case
Diagram Reference: 6
Get Part
9044507M86
Hose (l770)
Diagram Reference: 7
Get Part
9046706016
Clip (655)
Diagram Reference: 8
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
6881141101
Crank, shaft
Diagram Reference: 11
Get Part
93310636U4
Bearing (688)
Diagram Reference: 12
Get Part
9310236M02
Oil seal(52w)
Diagram Reference: 13
Get Part
9321046M16
O-ring (688)
Diagram Reference: 14
Get Part
93310835U8
Brg,cyl-cal roller (688)
Diagram Reference: 15
Get Part
93306206U5
Brg,r-b 6206 66mm (688)
Diagram Reference: 16
Get Part
9341032M00
Circlip
Diagram Reference: 17
Get Part
6H1116310395
Piston (std)
Diagram Reference: 18
Get Part
6H11163503 (AP)
Piston (0.25mm o/s)
Diagram Reference: 18
Get Part
6H11163603 (AP)
Piston (0.50mm o/s)
Diagram Reference: 18
Get Part
68811603A0
Piston ring set (std)
Diagram Reference: 19
Get Part
68811604A0 (AP)
Piston ring set (0.25mm o/s)
Diagram Reference: 19
Get Part
68811605A0 (AP)
Piston ring set (0.50mm o/s)
Diagram Reference: 19
Get Part
6631163300
Pin, piston
Diagram Reference: 20
Get Part
6881163410
Clip, piston pin
Diagram Reference: 21
Get Part
6881165003
Connecting rod assembly
Diagram Reference: 22
Get Part
9010908022
Bolt
Diagram Reference: 23
Get Part
9360321111
Pin, dowel(663)
Diagram Reference: 24
Get Part
9020120417
Washer, plate(663)
Diagram Reference: 25
Get Part
93310730V8
Bearing (688)
Diagram Reference: 26
Get Part
