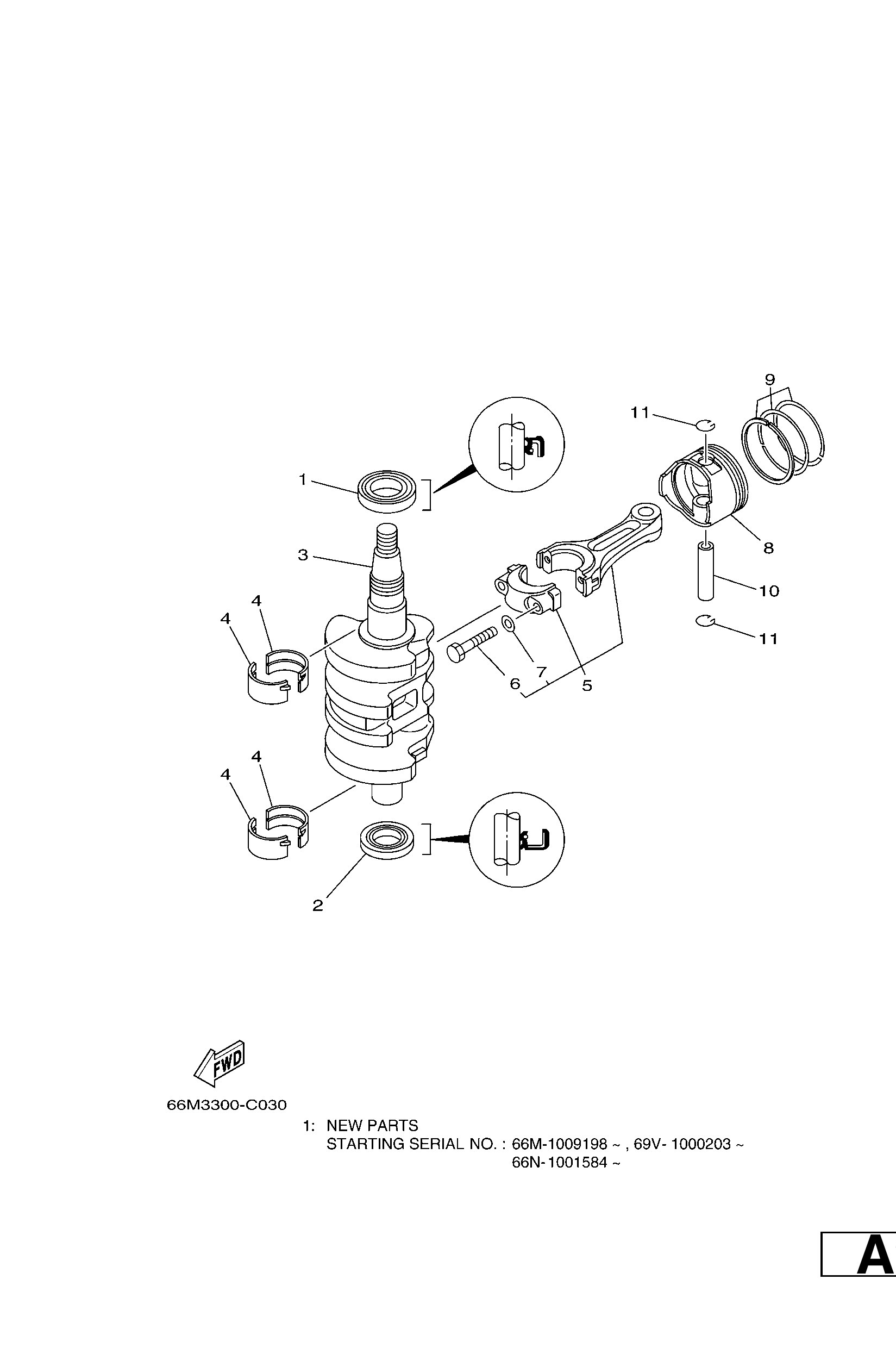

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

9310235M51

Oil seal

Diagram Reference: 1

9310225M52

Oil seal

Diagram Reference: 2

66M1141100

Crankshaft

Diagram Reference: 3

66M1141600 (UR BROWN)

Plane bearing, crankshaft 1

Diagram Reference: 4

66M1141610 (UR BLACK)

Plane bearing, crankshaft 1

Diagram Reference: 4

66M1141620 (UR BLUE)

Plane bearing, crankshaft 1

Diagram Reference: 4

66M1165000

Connecting rod kit

Diagram Reference: 5

66M1165400

Bolt, connecting rod

Diagram Reference: 6

9020107M01

Washer, plate

Diagram Reference: 7

66M1163500 (AP)

Piston (0.25mm o/s)

Diagram Reference: 8

66M1163600 (AP)

-

Diagram Reference: 8

66M116310096

Piston (std)

Diagram Reference: 8

66M1160300

Piston ring set (std)

Diagram Reference: 9

66N1160300 (NEW PARTS *1)

Piston ring set (std)

Diagram Reference: 9

66M1160400 (AP)

Piston ring set (0.25mm o/s)

Diagram Reference: 9

66N1160400 (AP NEW PARTS *1)

Piston ring set (0.25mm o/s)

Diagram Reference: 9

66M1160500 (AP)

Piston ring set (0.50mm o/s)

Diagram Reference: 9

66N1160500 (AP NEW PARTS *1)

Piston ring set (0.50mm o/s)

Diagram Reference: 9

6341163300

Pin, piston

Diagram Reference: 10

9345015023

Circlip 131116340000

Diagram Reference: 11
