F2.5AMH (2004)
CRANKSHAFT & PISTON

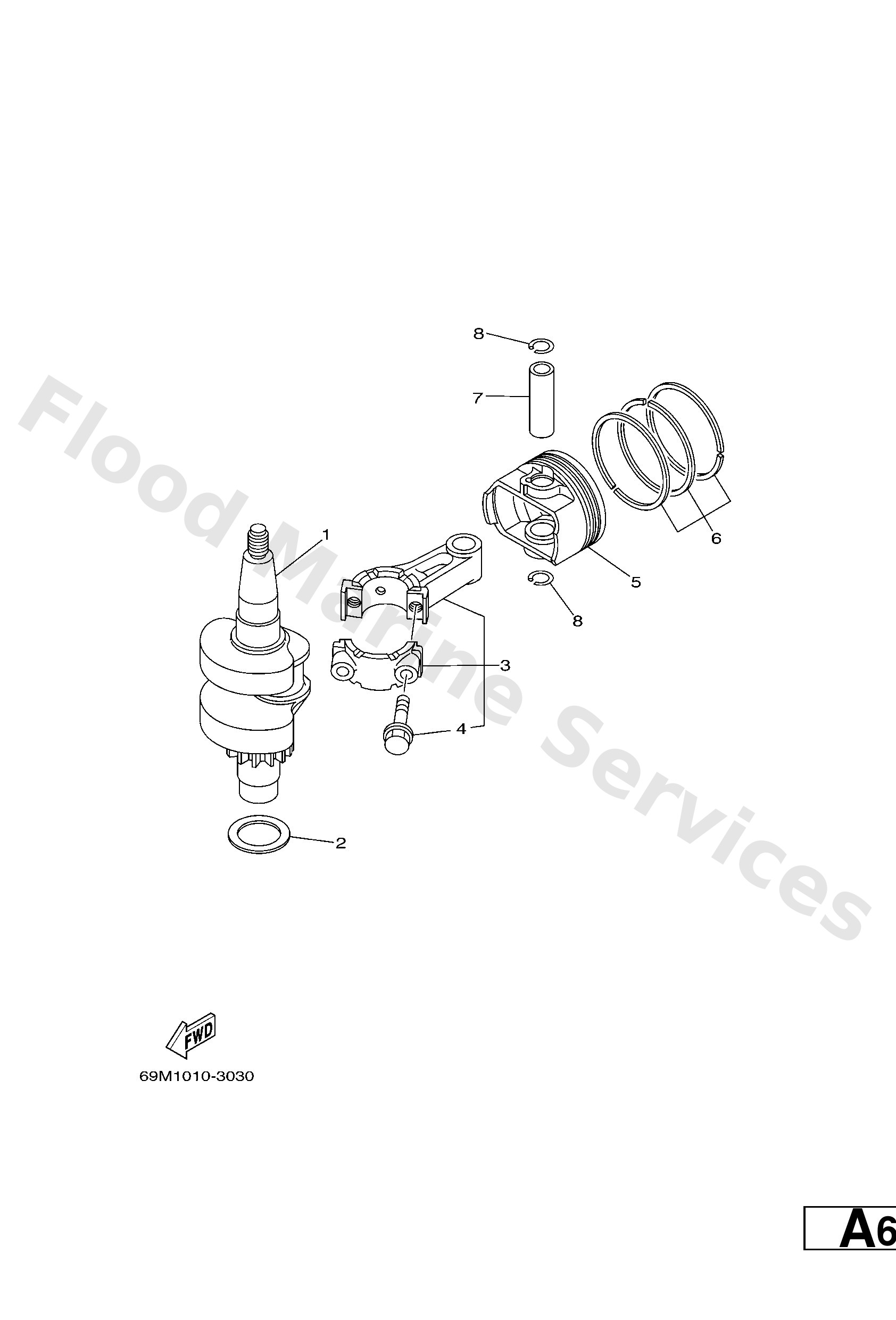

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
69M1140000
Crankshaft assembly
Loading…
↗
2
9020123008
Washer, plate
Loading…
↗
3
69M1165000
Connecting rod assembly
Loading…
↗
4
7FK1165400
Bolt, connecting rod
Loading…
↗
5
69ME163501
AP
Piston (0.25Mm O/S)
Loading…
↗
5
69ME163601
AP
0.50 o/s piston
Loading…
↗
5
69ME16310196
Piston (std) f2.5
Loading…
↗
6
69ME160501
AP
Ring piston setx10 o/s-2
Loading…
↗
6
69ME160401
AP
Piston ring set o/s-1
Loading…
↗
6
69ME160301
Piston ring set (std)
Loading…
↗
7
69ME163300
Pin, piston
Loading…
↗
8
9345013130
Circlip(3nw)
Loading…
↗
