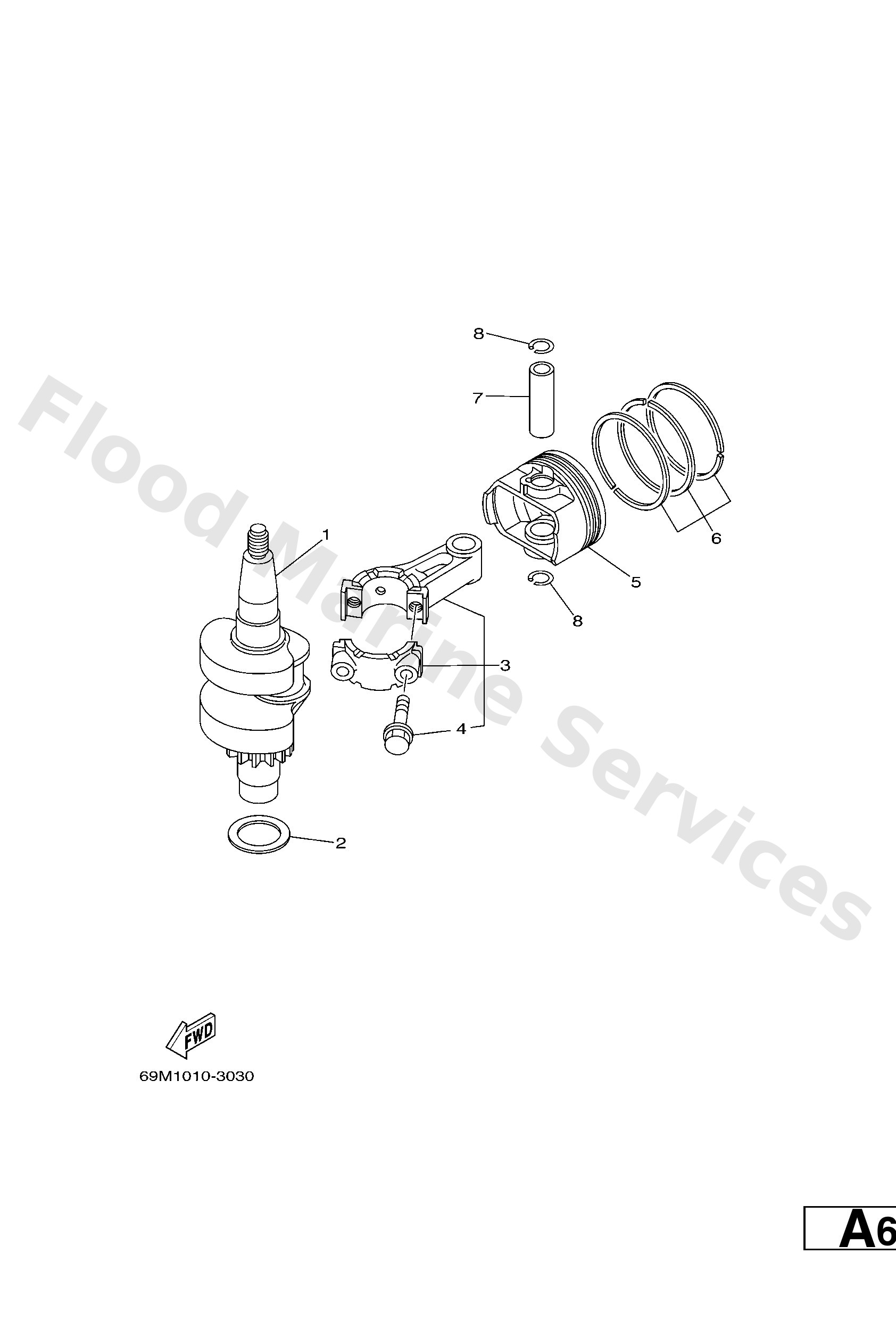

Diagram: CRANKSHAFT & PISTON
Parts List
Crankshaft assembly
Diagram Reference: 1
Washer, plate
Diagram Reference: 2
Connecting rod assembly
Diagram Reference: 3
Bolt, connecting rod
Diagram Reference: 4
Piston (std) f2.5
Diagram Reference: 5
Piston (0.25Mm O/S)
Diagram Reference: 5
0.50 o/s piston
Diagram Reference: 5
Piston ring set (std)
Diagram Reference: 6
Piston ring set o/s-1
Diagram Reference: 6
Ring piston setx10 o/s-2
Diagram Reference: 6
Pin, piston
Diagram Reference: 7
Circlip(3nw)
Diagram Reference: 8
