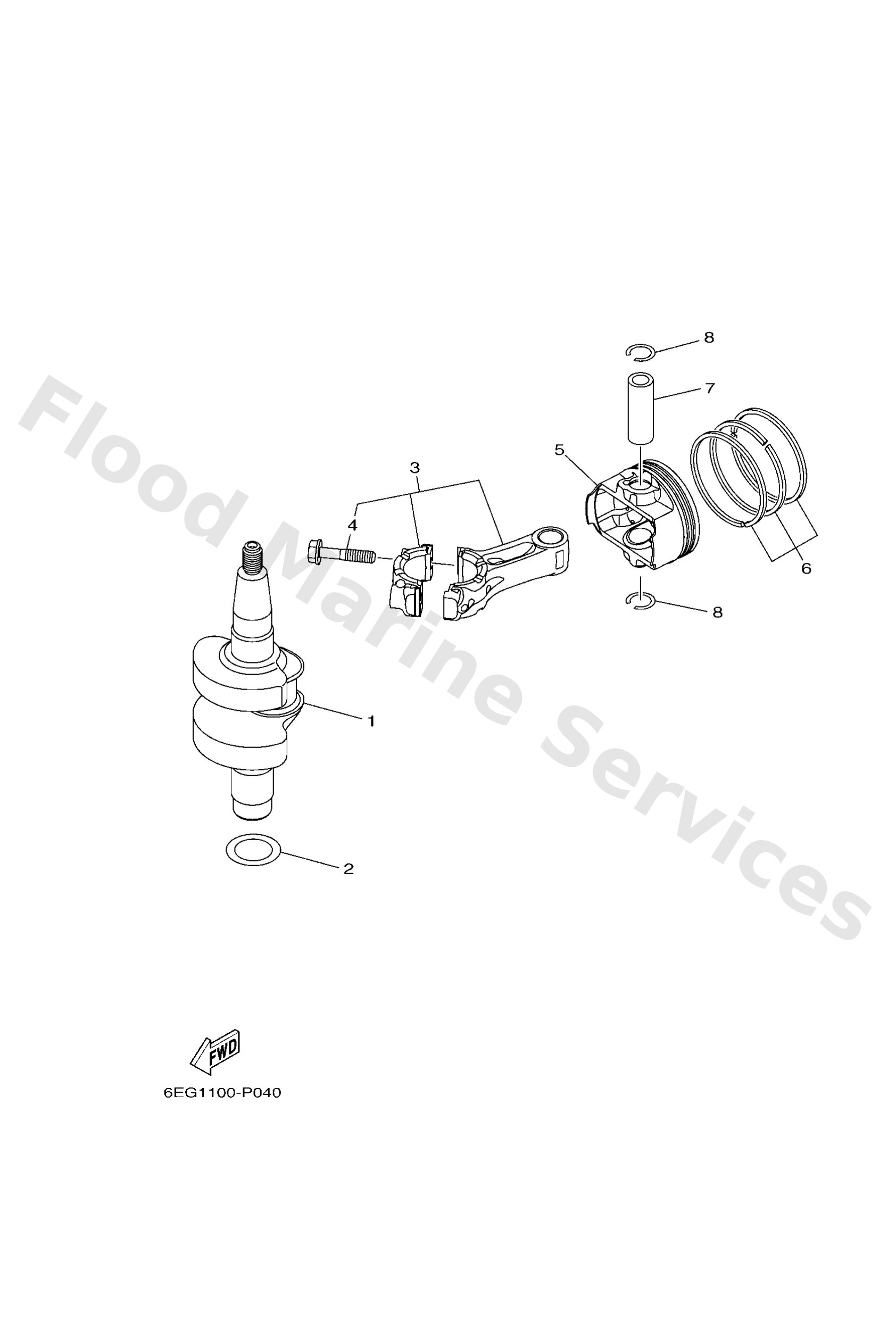

Diagram: CRANKSHAFT & PISTON
Parts List
Crankshaft
Diagram Reference: 1
Washer, plate
Diagram Reference: 2
Connecting rod assembly
Diagram Reference: 3
Bolt, connecting rod
Diagram Reference: 4
Piston (0.25mm o/s
Diagram Reference: 5
Piston (0.50mm o/s
Diagram Reference: 5
Piston (std)
Diagram Reference: 5
Piston ring set (0
Diagram Reference: 6
Piston ring set (0
Diagram Reference: 6
Piston ring set (s
Diagram Reference: 6
Pin, piston
Diagram Reference: 7
Circlip(3nw)
Diagram Reference: 8
