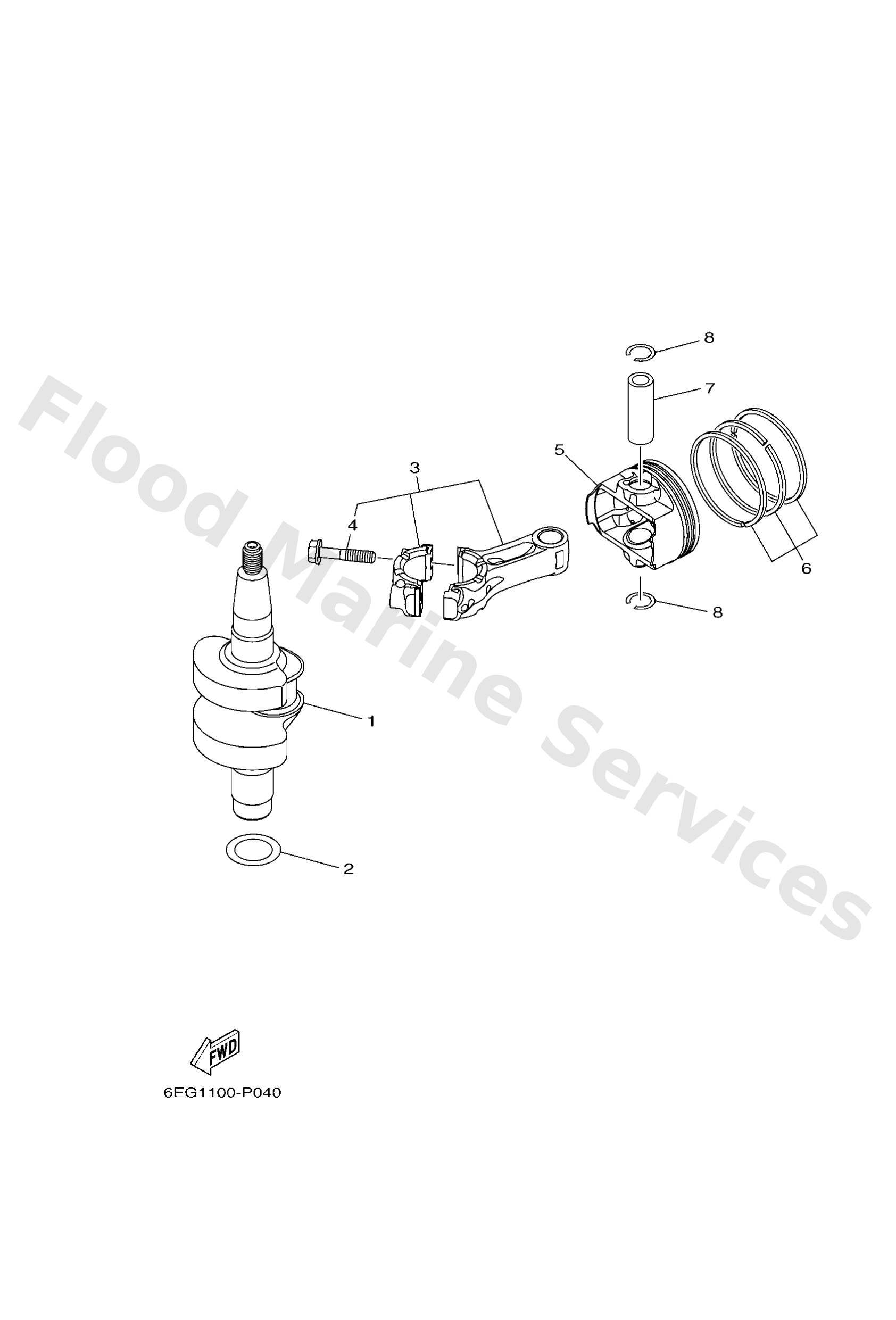

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

6EG1141010

Crankshaft

Diagram Reference: 1

9020123008

Washer, plate

Diagram Reference: 2

6EG1165000

Connecting rod assembly

Diagram Reference: 3

6EG1165400

-

Diagram Reference: 4

6EG1163110

Piston (std)

Diagram Reference: 5

6EG1163510 (AP)

-

Diagram Reference: 5

6EG1163610 (AP)

-

Diagram Reference: 5

6EG1160300

-

Diagram Reference: 6

6EG1160400 (AP)

-

Diagram Reference: 6

6EG1160500 (AP)

-

Diagram Reference: 6

6EG1163300

Pin, piston

Diagram Reference: 7

9345013130

Circlip(3nw)

Diagram Reference: 8
