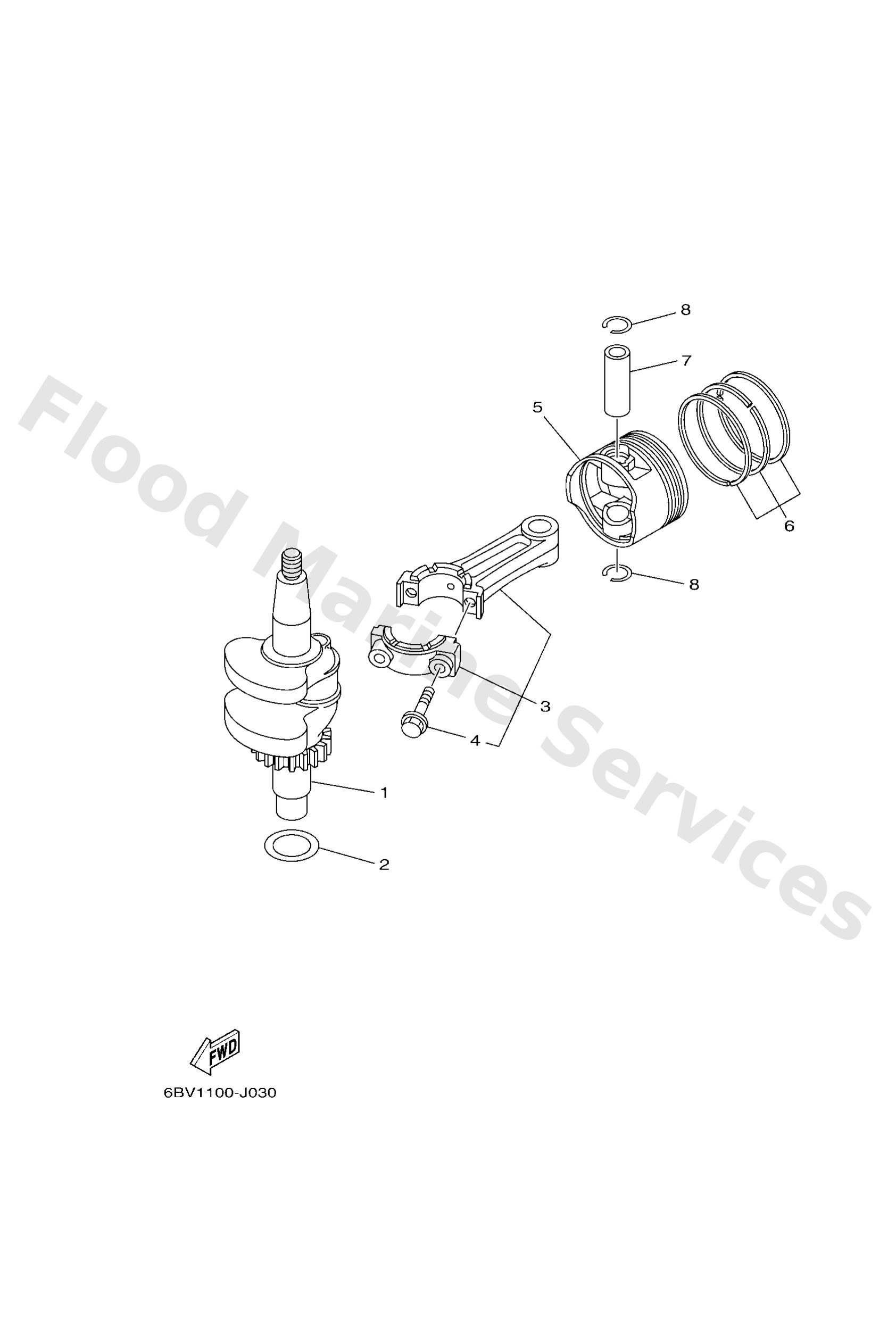

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

6EE1141000

Crankshaft

Diagram Reference: 1

90201266P2

Washer, plate(ja8)

Diagram Reference: 2

6EE1165000

Connecting rod assembly

Diagram Reference: 3

6EE1165400

-

Diagram Reference: 4

6EE116310096

-

Diagram Reference: 5

6EE1163500 (AP)

Piston (0.25mm o/s)

Diagram Reference: 5

6EE1163600 (AP)

Piston (0.50mm o/s)

Diagram Reference: 5

6EE1160300

-

Diagram Reference: 6

6EE1160400 (AP)

-

Diagram Reference: 6

6EE1160500 (AP)

-

Diagram Reference: 6

6EE1163300

Pin, piston

Diagram Reference: 7

9345016068

Circlip (4g0)

Diagram Reference: 8
