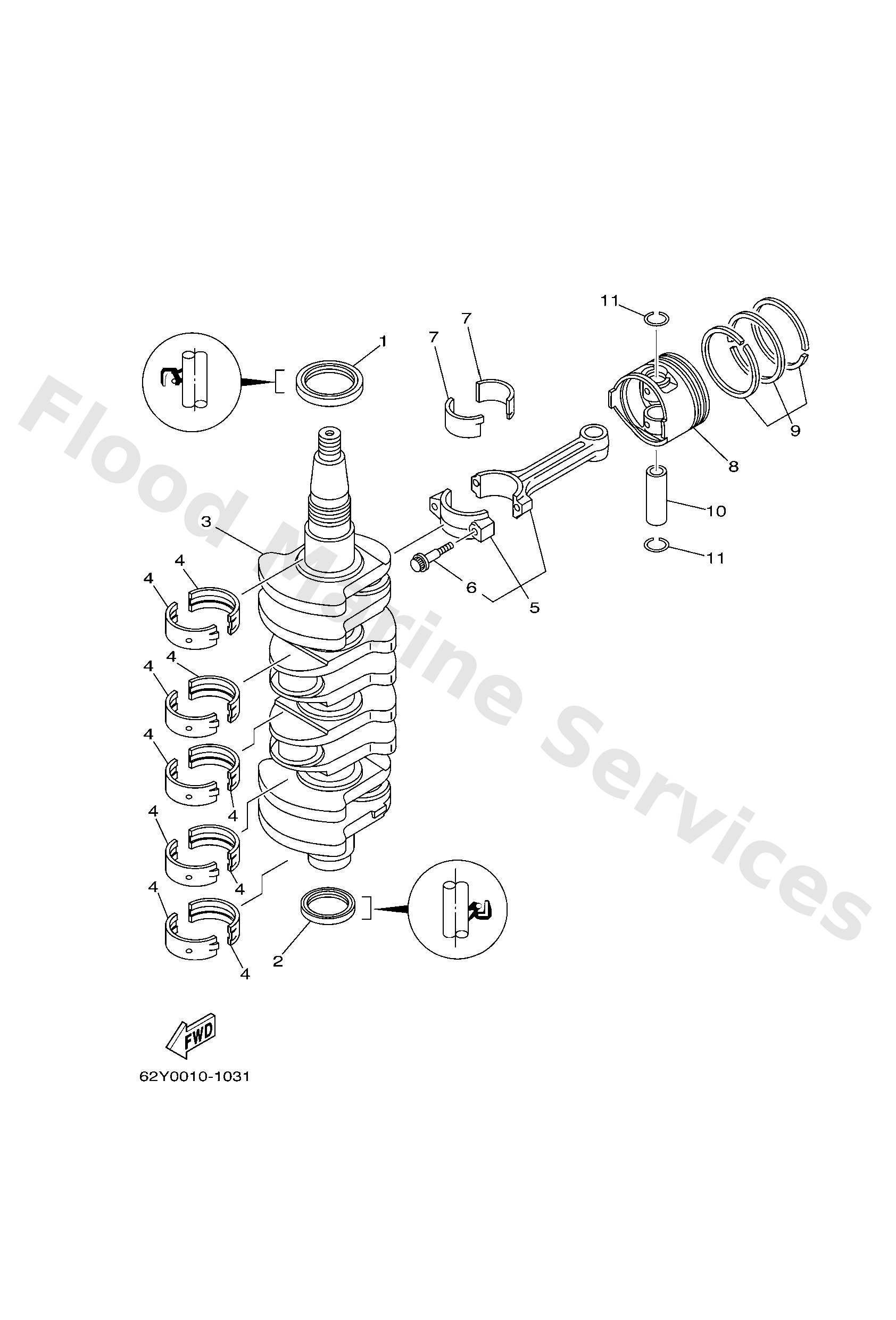

Parts List
Oil seal(62y)
Diagram Reference: 1
Oil seal
Diagram Reference: 2
Crankshaft & nut set
Diagram Reference: 3
Plane bearing, crankshaft 1
Diagram Reference: 4
Plane bearing, crankshaft 1
Diagram Reference: 4
Plane bearing, crankshaft 1
Diagram Reference: 4
Plane bearing, crankshaft 1
Diagram Reference: 4
Connecting rod assembly
Diagram Reference: 5
Bolt, connecting rod
Diagram Reference: 6
Plane bearing, connecting rod
Diagram Reference: 7
Plane bearing, connecting rod
Diagram Reference: 7
Plane bearing, connecting rod
Diagram Reference: 7
Plane bearing, connecting rod
Diagram Reference: 7
Piston (std)
Diagram Reference: 8
Piston (0.25mm o/s)
Diagram Reference: 8
Piston (0.50mm o/s)
Diagram Reference: 8
Piston ring set (std)
Diagram Reference: 9
Piston ring set (0.25mm o/s)
Diagram Reference: 9
Piston ring set (0.50mm o/s)
Diagram Reference: 9
Pin, piston
Diagram Reference: 10
Circlip(1ar)
Diagram Reference: 11
