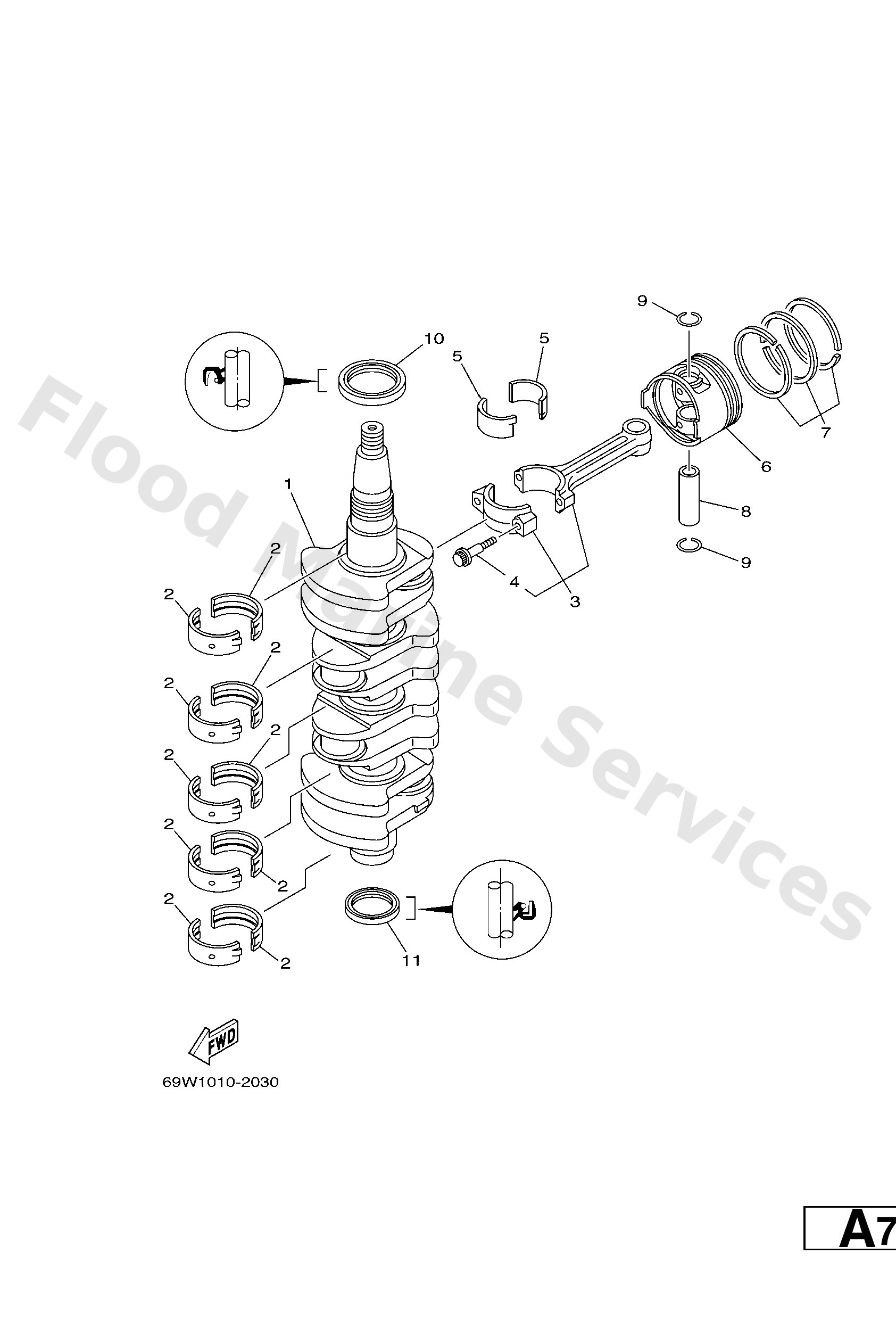

Parts List
Crankshaft & nut set
Diagram Reference: 1
Plane bearing, crankshaft 1
Diagram Reference: 2
Plane bearing, crankshaft 1
Diagram Reference: 2
Plane bearing, crankshaft 1
Diagram Reference: 2
Plane bearing, crankshaft 1
Diagram Reference: 2
Connecting rod assembly
Diagram Reference: 3
Bolt, connecting rod
Diagram Reference: 4
Plane bearing, connecting rod
Diagram Reference: 5
Plane bearing, connecting rod
Diagram Reference: 5
Plane bearing, connecting rod
Diagram Reference: 5
Plane bearing, connecting rod
Diagram Reference: 5
Piston (std)
Diagram Reference: 6
Piston (0.25mm o/s)
Diagram Reference: 6
Piston (0.50mm o/s)
Diagram Reference: 6
Piston ring set (std)
Diagram Reference: 7
Piston ring set (0.25mm o/s)
Diagram Reference: 7
Piston ring set (0.50mm o/s)
Diagram Reference: 7
Pin, piston
Diagram Reference: 8
Circlip(1ar)
Diagram Reference: 9
Oil seal(62y)
Diagram Reference: 10
Oil seal
Diagram Reference: 11
