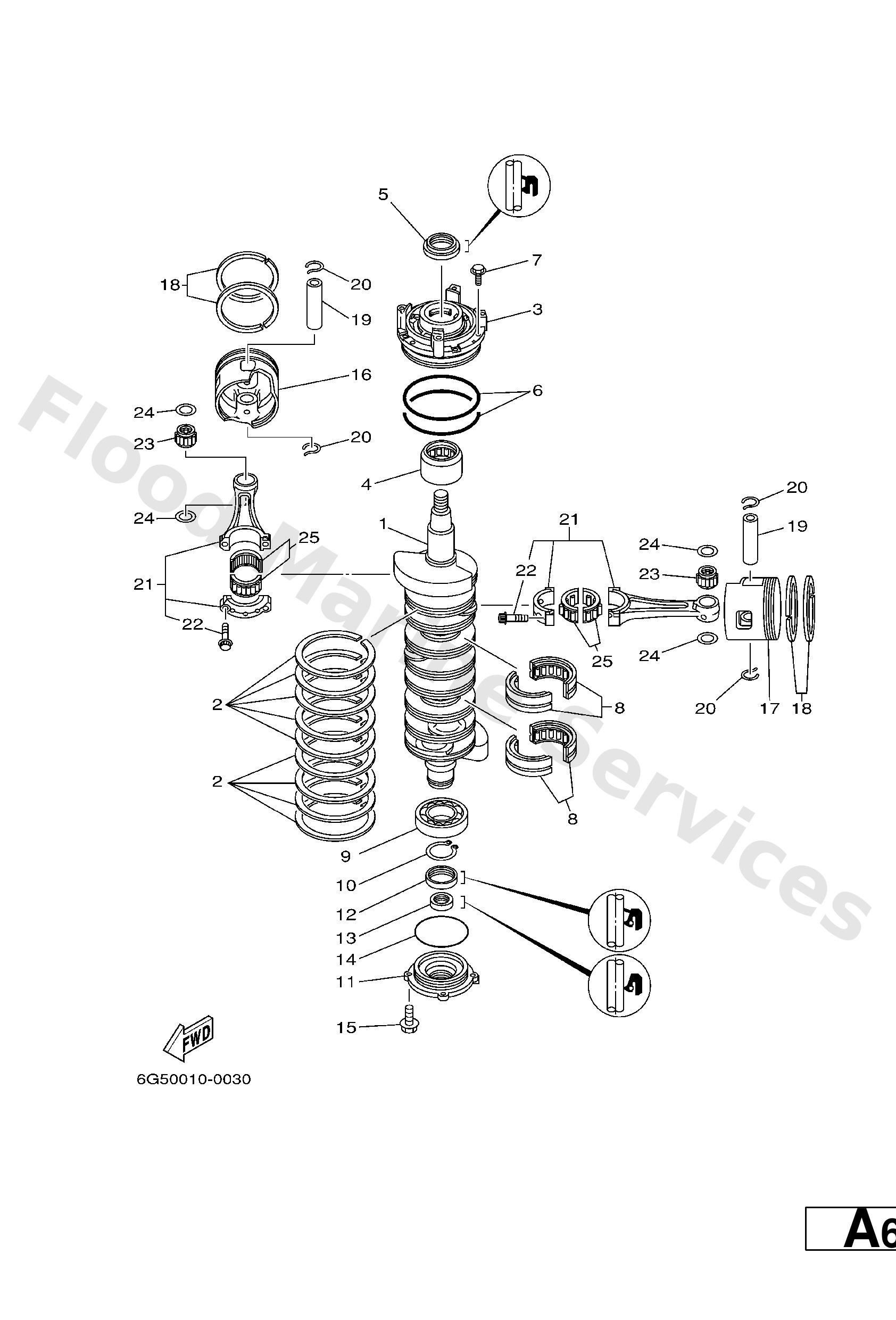

Parts List
Crankshaft
Diagram Reference: 1
Seal, ring
Diagram Reference: 2
Housing, bearing 1
Diagram Reference: 3
Brg,cyl-cal roller 36g (6e5)
Diagram Reference: 4
Oil seal(61a)
Diagram Reference: 5
O-ring
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Bearing, cylindrical(64c)
Diagram Reference: 8
Brg,r-b 6208 80mm 345g (6e5)
Diagram Reference: 9
Circlip(n02)
Diagram Reference: 10
Housing, oil seal
Diagram Reference: 11
Oil seal (6e5)
Diagram Reference: 12
Oil seal (6e5)
Diagram Reference: 13
O-ring (6e5)
Diagram Reference: 14
Piston (std)
Diagram Reference: 16
Piston (0.50mm o/s)
Diagram Reference: 16
Piston (0.25mm o/s)
Diagram Reference: 16
Piston 2 (std)
Diagram Reference: 17
Piston 2 (0.25mm o/s)
Diagram Reference: 17
Piston 2 (0.50mm o/s)
Diagram Reference: 17
Piston ring set (std)
Diagram Reference: 18
Piston ring set (0.25mm o/s)
Diagram Reference: 18
Piston ring set (0.50mm o/s)
Diagram Reference: 18
Pin, piston
Diagram Reference: 19
Clip, piston pin
Diagram Reference: 20
Connecting kit
Diagram Reference: 21
Bolt
Diagram Reference: 22
Bearing
Diagram Reference: 23
Washer, plate(6g6)
Diagram Reference: 24
Brg, cyl-cal roller (6e5)
Diagram Reference: 25
